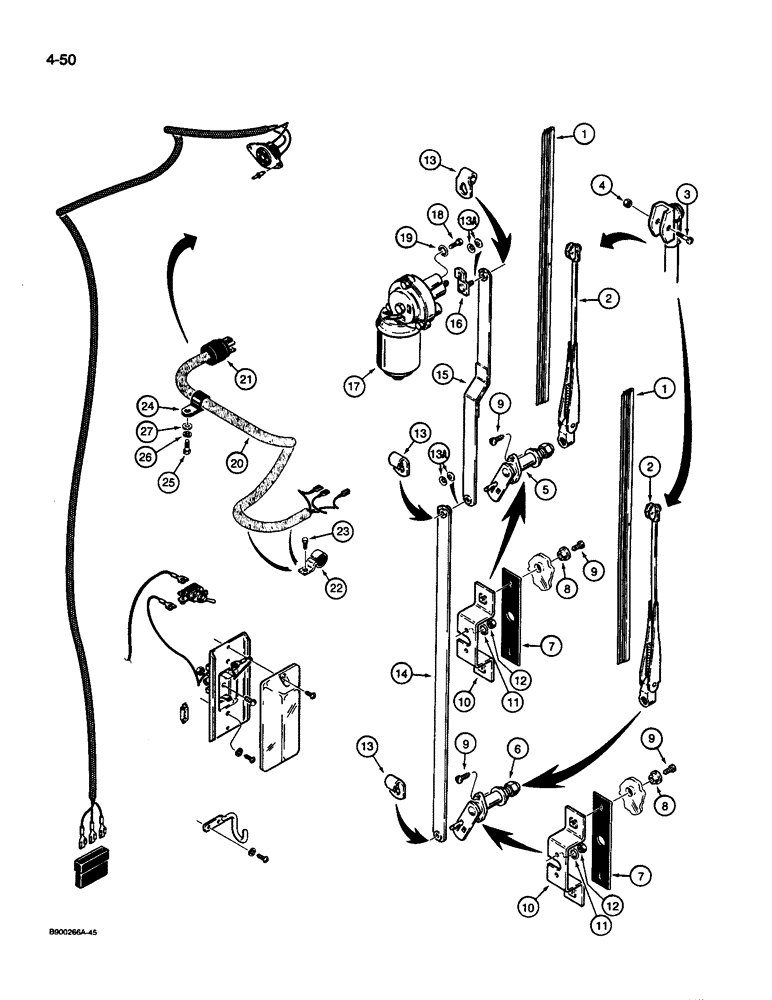

Запчасти Case 1085C (4-50) - WINDSHIELD WIPER AND DOME LAMP, USED WITH EXCAVATOR CAB (04) - ELECTRICAL SYSTEMS

1

N13102

WIPER BLADE

BLADE - wiper arm, 20 inch (508 mm) long

2шт.

S241559

WIPER ARM

ARM ASSEMBLY - windshield wiper, Includes: Ref. 2 - 4

2шт.

2

NSS

NOT SOLD SEPARAT

ARM - windshield wiper

1шт.

3

169-44

SCREW,Sl Fil Hd, #5 - 40 x 1/2"

- machine, Fillister head, No. 5 NC x 1/2 inch

1шт.

4

131-502

LOCK NUT,#5-40

NUT - hex, self-locking, No. 5 NC

1шт.

5

S516458

SHAFT

- pivot, upper, replaced by S518003 shaft, item 5A

1шт.

If this part is to be replaced, all items 5A, 6A and 16A must be replaced at the same time.

1шт.

5a

S518003

SHAFT ASSY.

SHAFT - pivot, upper, not shown

1шт.

6

S516847

PIVOT ASSY.

SHAFT - pivot, lower, replaced by S518004 shaft, item 6A

1шт.

If this part is to be replaced, all items 5A, 6A and 16A must be replaced at the same time.

1шт.

6a

S518004

SHAFT ASSY.

SHAFT - pivot, lower, not shown

1шт.

7

S218046

GASKET

- rubber, Serial Range: bracket-glass

2шт.

8

N13091

BUSHING

- nylon, bracket mounting

4шт.

9

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

- machine, pan, No. 10 NC x 5/8 inch

8шт.

10

S241525

BRACKET

- mounting, wiper shaft

2шт.

11

493-21020

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

4шт.

12

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

4шт.

13

S240639

CLIP

- drive arm and links to pivot shafts

3шт.

13a

193-96

LOCK WASHER,3/8"

WASHER - spring, 3/8 inch

4шт.

14

N13070

UPPER LINK

LINK - connecting, upper to lower shaft

1шт.

15

N13071

LINK ASSY.

LINK - connecting, upper, Serial Range: shaft-motor

1шт.

16

A36091

ARM

- drive, motor to link, replaced by S121118 arm, item 16A

1шт.

If this part is to be replaced, all items 5A, 6A and 16A must be replaced at the same time.

1шт.

16a

S121118

ARM ASSY.

ARM - drive, motor to link, not shown

1шт.

17

S118443

WIPER

MOTOR - wiper, 24 volt

1шт.

18

414-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

- hex, 1/4 NF x 3/4 inch

3шт.

19

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER - internal tooth lock, 1/4 inch

3шт.

20

S242085

HARNESS

- wiring, wiper

1шт.

21

S120373

PLUG

- male

1шт.

22

214-1202

CLAMP

- windshield wiper, Serial Range: harness-windshield

2шт.

23

276-2056

SELF-TAP SCREW,Hex Hd, #10 x 3/8"

SCREW - hex, self-tapping, No. 10 NC x 3/8 inch

2шт.

24

S64985

CLAMP

- cab roof

1шт.

25

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

26

492-11038

LOCK WASHER,3/8"

1шт.

27

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.
