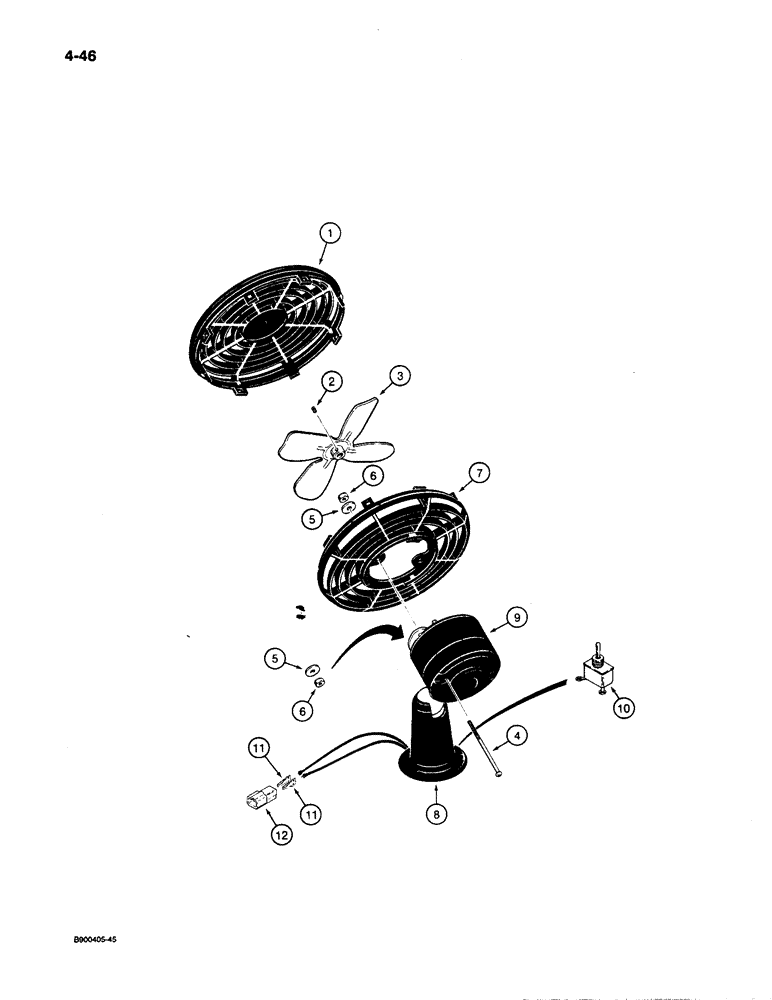

Запчасти Case 1085C (4-46) - DEFROSTOR FAN (04) - ELECTRICAL SYSTEMS

S517919

FAN

ASSEMBLY - defroster, includes electrical connectors, (items 11 and 12), Includes: Ref. 1 - 12

1шт.

L126961

FAN

ASSEMBLY - defroster, Includes: Ref. 1 - 10

1шт.

1

N6272

GUARD

- front

1шт.

2

178-819

SET SCREW,Hex Soc, #10-32 x 3/16"

SCREW - set, hex socket headless, No. 10 NF x 3/16 inch, cup

1шт.

3

N6273

FAN

BLADE - fan

1шт.

4

182-576

SCREW,Slotted Pan Hd, #10-32 x 3"

- machine, pan head slotted, No. 10 NF x 3 inch

2шт.

5

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 1/16 inch

4шт.

6

225-14210

NUT,#10-32

4шт.

7

N6274

GUARD

- rear

1шт.

8

NSS

NOT SOLD SEPARAT

PEDESTAL - fan

1шт.

9

NSS

NOT SOLD SEPARAT

MOTOR - fan

1шт.

10

N6275

SWITCH

- toggle

1шт.

11

225113C1

TERMINAL CONNECTOR,Male, 0.8 mm2

TERMINAL - receptacle, defroster fan

2шт.

12

223-167

CONNECTOR, ELEC

CONNECTOR - receptacle, 2 contact

1шт.
