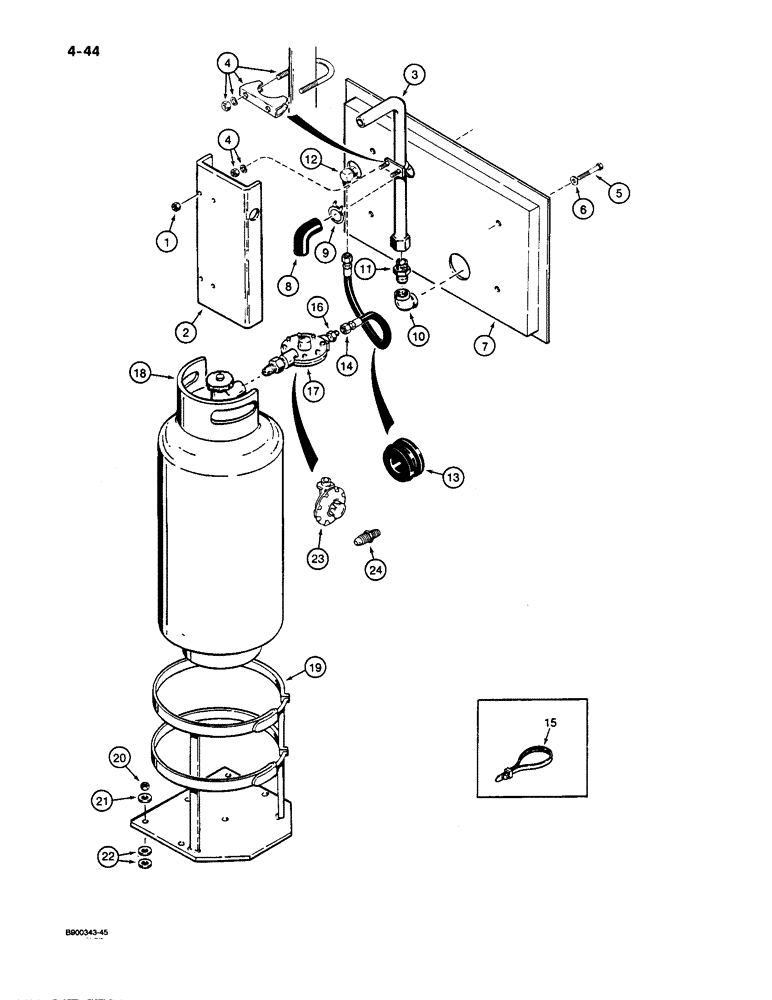

Запчасти Case 1085C (4-44) - LIQUID PROPANE FIRED HEATER, TANK AND MOUNTING PARTS (04) - ELECTRICAL SYSTEMS

1

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

4шт.

2

S515088

GUARD

- exhaust tube

1шт.

3

S239724

TUBE,1" OD x 13.5, 5.6" L

- exhaust

1шт.

4

S120259

CLAMP

- tube, includes lockwashers and hex nuts

2шт.

5

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

6

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

7

S515086

PAN

- heater, rear

1шт.

8

S239725

HOSE

- rubber, air intake

1шт.

9

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 13/16 to 1-3/4 inch

1шт.

10

S118178

ELBOW

- 90 degree

1шт.

11

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

ADAPTER - straight, 1-5/16-12 flare x 1 inch PT

1шт.

12

222-1927

FITTING

ELBOW - 90 deg, 5/8-18 inch 45 deg flare x 45 deg fl swivel

1шт.

13

S120263

GROMMET

- hose

1шт.

14

S117712

HOSE,0.31" ID x 168.00"

- Tank to heater 0.31" ID x 168.00"

1шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

16

222-910

FITTING,5/8"-18 45 Degree Fl x 3/8" NPT Fem

ADAPTER - 5/8-18 45 deg flare x 3/8 inch PT, brass

1шт.

17

NSS

NOT SOLD SEPARAT

REGULATOR - tank pressure, order S300325 regulator kit which also includes a connector with excess flow valve, see items 23 and 24 below

1шт.

18

REF

INSTRUCTION

TANK - L.P., obtain locally from gas dealer

1шт.

19

S515258

BRACKET

- tank

1шт.

20

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8 inch NC

4шт.

21

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

22

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32"), Used as spacer 1/2", SAE

8шт.

S300325

REGULATOR

KIT - service, pressure regulator, Includes: Ref. 23 and 24

1шт.

23

NSS

NOT SOLD SEPARAT

CONNECTOR - includes excess flow valve

1шт.

24

NSS

NOT SOLD SEPARAT

REGULATOR - pressure

1шт.
