Артикул
Название
Примечание
Количество
S517628
HEATER

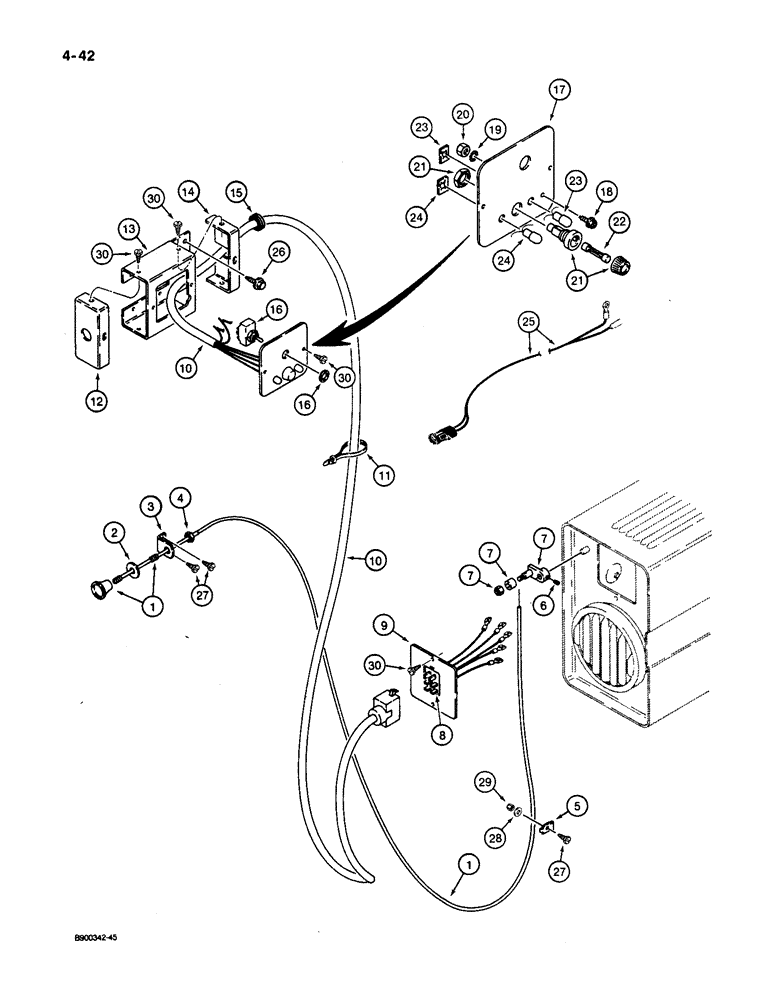

ASSEMBLY - L.P. fired, parts list Figure: 4-36 through 4-42, Includes: Ref. 1 - 30
1шт.
1
N60219
CABLE
CONTROL - push-pull, includes cable and knob
1шт.
2
N60221
PLATE
- control cable
1шт.
3
N60220
BRACKET
- control cable
1шт.
4
131-5
LOCK NUT,3/8"-16, GB
NUT - hex, self-locking, 5/16 inch NF
1шт.
5
N60222
CLAMP
- cable
1шт.
6
178-850
SET SCREW,Hex Soc, #6-32 x 1/4"
SCREW - set, hex socket headless, No. 6 NC x 1/4 inch, cup point
1шт.
7
S300350
LEVER
- control, includes collar and nut
1шт.
8
N60216
HARNESS
- electrical control, lower
1шт.
9
N60234
PANEL
- harness
1шт.
10
N14197
HARNESS
AND PANEL ASSEMBLY - electrical control, upper
1шт.
11
L18337
CABLE TIE,9.95"-12.1" lg
STRAP - tie, 15 inch, nylon
1шт.
12
N60217
BRACKET
- end, left-hand
1шт.
13
S300351
BRACKET
- mounting
1шт.
14
N60215
BRACKET
- end, right-hand
1шт.
15
N60214
GROMMET
- rubber
1шт.
S300341
KIT
- electrical control, Includes: Ref. 16 - 24
1шт.
16
S118159
SWITCH
- toggle, two pole
1шт.
17
N8776
PLATE
- mounting, toggle switch, lamps, and fuse
1шт.
18
163-17
SCREW,Sl Hex Wshr Hd, #6 - 32 x 3/8"
- machine, hex slotted washer head, No. 6 NC x 3/8 inch used for ground
1шт.
19
193-89
LOCK WASHER,Ext-Int Tooth, #6
WASHER, LOCK, Ext-Int Tooth, #6
1шт.
20
225-14106
NUT,#6-32
1шт.
21
S90394
HOLDER
- fuse, includes hex nut
1шт.
22
NSS
NOT SOLD SEPARAT
FUSE - 10 amp, obtain locally if S300341 Kit is not ordered
1шт.
23
N60373
LIGHT
LAMP - pilot, green, 24 volt, includes retainer
1шт.
24
N60374
LIGHT
LAMP - pilot, amber, 24 volt, includes retainer
1шт.
25
S243709
HARNESS
- heater electrical control to cab harness
1шт.
26
S40799
SCREW
- self-tapping, special, control, Serial Range: box-cab
2шт.
27
276-2058
SELF-TAP SCREW,Hex Hd, #10 x 1/2"
SCREW - hex, self tapping, No. 10 NC x 1/2 inch
3шт.
28
495-31022
WASHER,#10
1шт.
29
86632551
NUT,#10-24, GB
NUT, LOCK, #10-24, GB
1шт.
30
281-1438
SELF-TAP SCREW,Hex Wash Hd, #6 x 1/2"
SCREW - hex washer, self-tapping, No. 6 NC x 1/2 inch
1шт.
Выбрано товаров: 32
