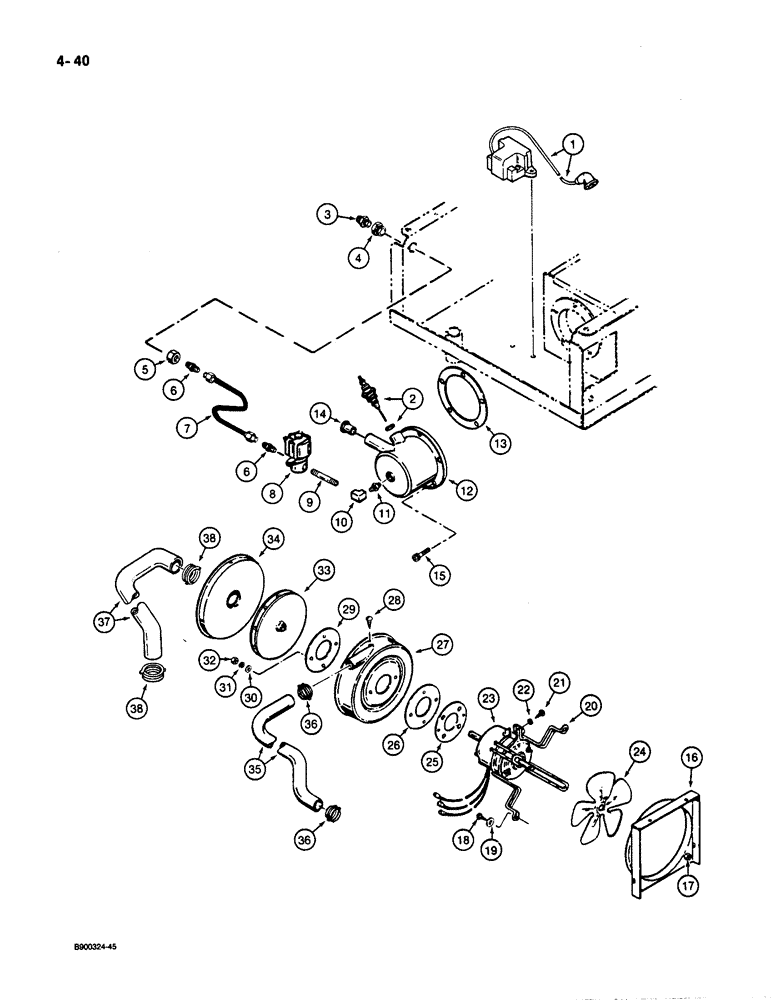

Запчасти Case 1085C (4-40) - LIQUID PROPANE FIRED HEATER, IGNITION, BURNER, AND FAN (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
S517628
HEATER
ASSEMBLY - L.P. fired, parts list Figure: 4-36 through 4-42, Includes: Ref. 1 - 38
1шт.
1
S300356
IGNITION SWITCH
IGNITION - electrical, heater
1шт.
2
S90475
PLUG
- ignition, includes gasket
1шт.
3
S118259
ELEC CONNECTOR
ADAPTER - male, straight
1шт.
4
S90413
CONNECTOR, ELEC
ADAPTER - female
1шт.
S300329
KIT
- fuel line, Includes: Ref. 6 and 7
1шт.
6
S90408
CONVERTER
ADAPTER - male, straight
2шт.
7
N8773
LINE
HOSE - fuel
1шт.
8
N8772
VALVE
- solenoid, 24 volt
1шт.
9
NSS
NOT SOLD SEPARAT
NIPPLE - pipe, at solenoid
1шт.
S300330
KIT
- burner head, Includes: Ref. 10 - 15
1шт.
10
NSS
NOT SOLD SEPARAT
ELBOW - female, 90 degree
1шт.
11
N8770
RESISTOR
RESTRICTOR - fuel, 1/16 inch diameter
1шт.
12
N8771
HEAD
- burner
1шт.
13
S90404
GASKET
- burner head
1шт.
14
NSS
NOT SOLD SEPARAT
RESTRICTOR - air, burner intake
1шт.
15
165-23
HEX SOC SCREW,#10 - 24 x 3/4"
BOLT - hex socket head, No. 10 NC x 3/4 inch
5шт.
S300335
KIT
- blower, motor and fan, includes mounting parts, Includes: Ref. 16 - 34
1шт.
16
NSS
NOT SOLD SEPARAT
PLATE - mounting, fan
1шт.
17
S118261
NUT
- mounting plate
4шт.
18
187-1176
SCREW
- Phillips head, self-tapping, No. 10 NC x 1 inch
4шт.
19
195-513
WASHER,#10
- flat, No. 10
4шт.
20
NSS
NOT SOLD SEPARAT
MOUNT - fan motor
1шт.
21
187-1150
SCREW,Cross Pan Hd, 1/4"-20 x 1"
- Phillips head, self-tapping, 1/4 NC x 1 inch
1шт.
22
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
1шт.
23
S239980
MOTOR
- fan, 24 volt
1шт.
For L.P. tank and hose and air intake and exhaust parts, see Fig. 4-44
1шт.
Part of blower and motor only, kit P/N S300336
1шт.
24
NSS
NOT SOLD SEPARAT
BLADE - fan
1шт.
25
S118166
GASKET
- fan motor
1шт.
For L.P. tank and hose and air intake and exhaust parts, see Fig. 4-44
1шт.
Part of blower and motor only, kit P/N S300336
1шт.
26
NSS
NOT SOLD SEPARAT
SPACER - fan motor
1шт.
For L.P. tank and hose and air intake and exhaust parts, see Fig. 4-44
1шт.
Part of blower and motor only, kit P/N S300336
1шт.
27
NSS
NOT SOLD SEPARAT
HOUSING - blower
1шт.
For L.P. tank and hose and air intake and exhaust parts, see Fig. 4-44
1шт.
Part of blower and motor only, kit P/N S300336
1шт.
28
NSS
NOT SOLD SEPARAT
SCREW - blower housing
1шт.
For L.P. tank and hose and air intake and exhaust parts, see Fig. 4-44
1шт.
Part of blower and motor only, kit P/N S300336
1шт.
29
NSS
NOT SOLD SEPARAT
SPACER - blower wheel
1шт.
For L.P. tank and hose and air intake and exhaust parts, see Fig. 4-44
1шт.
Part of blower and motor only, kit P/N S300336
1шт.
30
195-513
WASHER,#10
- flat, No. 10
4шт.
31
192-18
LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND
WASHER, LOCK, #10
4шт.
For L.P. tank and hose and air intake and exhaust parts, see Fig. 4-44
1шт.
Part of blower and motor only, kit P/N S300336
1шт.
32
129-37
NUT,#10-32
4шт.
For L.P. tank and hose and air intake and exhaust parts, see Fig. 4-44
1шт.
Part of blower and motor only, kit P/N S300336
1шт.
33
NSS
NOT SOLD SEPARAT
WHEEL - blower
1шт.
For L.P. tank and hose and air intake and exhaust parts, see Fig. 4-44
1шт.
Part of blower and motor only, kit P/N S300336
1шт.
34
NSS
NOT SOLD SEPARAT
COVER - wheel
1шт.
For L.P. tank and hose and air intake and exhaust parts, see Fig. 4-44
1шт.
Part of blower and motor only, kit P/N S300336
1шт.
S300337
KIT
- hose, blower and duct, Includes: Ref. 35 - 38
1шт.
35
NSS
NOT SOLD SEPARAT
HOSE - intake blower
1шт.
36
NSS
NOT SOLD SEPARAT
CLAMP - hose
2шт.
37
NSS
NOT SOLD SEPARAT
HOSE - air, duct
1шт.
38
S118176
CLAMP
- hose
2шт.
S300336
KIT
- blower and motor only, Includes Refs. 23, 25, 26, 2, 28, 29, 31, 32, 33 and 34
1шт.
For L.P. tank and hose and air intake and exhaust parts, see Fig. 4-44
1шт.
