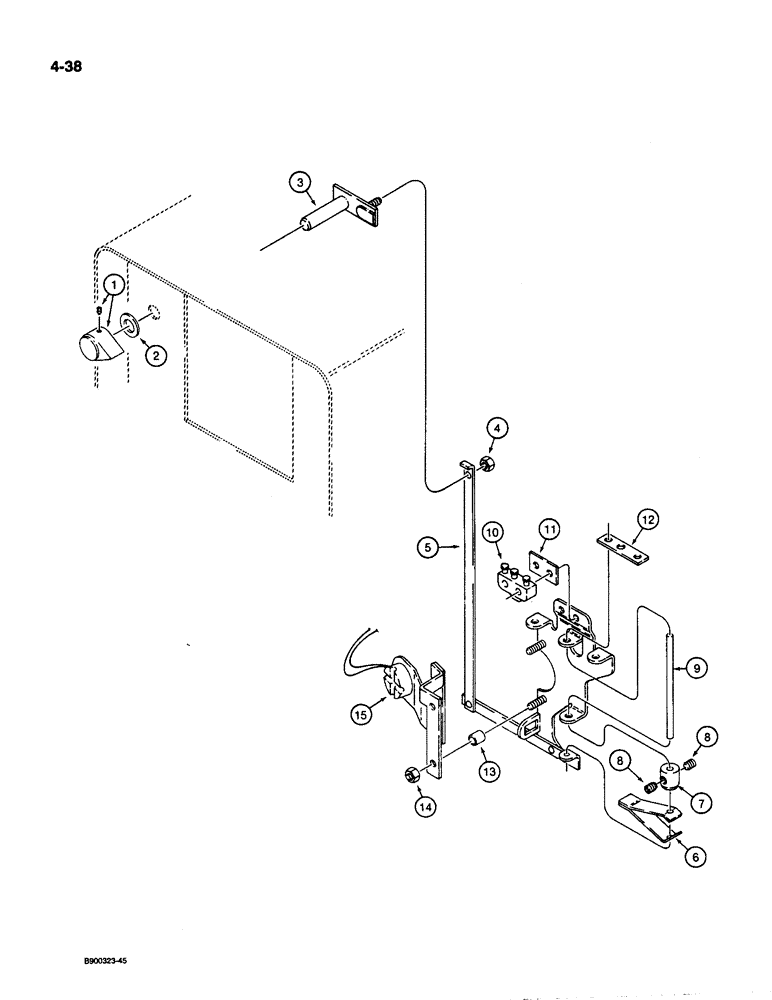

Запчасти Case 1085C (4-38) - LIQUID PROPANE FIRED HEATER, HEATER SAFETY CONTROLS (04) - ELECTRICAL SYSTEMS

S517628

HEATER

- L.P. fired, parts list Figure: 4-36 through 4-42, Includes: Ref. 1 - 15

1шт.

S300339

KIT

- knob and arm, heat control, Includes: Ref. 1 - 4

1шт.

1

S118156

KNOB

- heat control, includes set screw, if used

1шт.

2

S118260

WASHER

- spring, if used

1шт.

3

S118158

ARM

- pivot, heat control

1шт.

4

N8777

NUT

- stop, special

1шт.

S300342

KIT

- heat regulating, Includes: Ref. 5 - 15

1шт.

5

NSS

NOT SOLD SEPARAT

BRACKET - microswitch and bi-metal control mounting

1шт.

6

S118152

BLADE

CONTROL - bi-metal

1шт.

7

S90496

STOP

COLLAR - actuator

1шт.

8

NSS

NOT SOLD SEPARAT

SCREW - set, actuator stop

2шт.

9

S120614

ROD

- actuating

1шт.

10

S90493

SWITCH

MICROSWITCH - heat control

1шт.

Part of microswitch kit P/N S300340

1шт.

11

S110357

INSULATOR

- microswitch

1шт.

Part of microswitch kit P/N S300340

1шт.

12

N8778

SHIELD

- heat

1шт.

13

NSS

NOT SOLD SEPARAT

SPACER - flame switch bracket

2шт.

14

NSS

NOT SOLD SEPARAT

NUT - hex, flame, Serial Range: switch-bracket

2шт.

15

13961A1

SWITCH - flame

1шт.

S300340

KIT

- microswitch, Includes Refs. 10 and 11

1шт.
