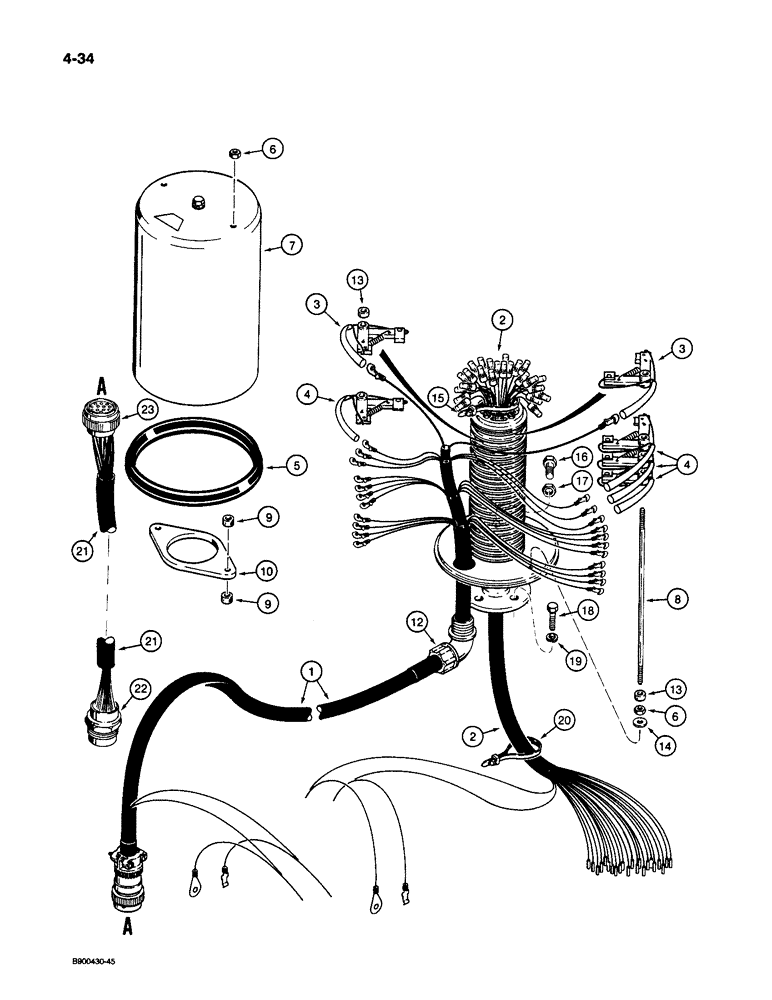

Запчасти Case 1085C (4-34) - ELECTRICAL SWIVEL (04) - ELECTRICAL SYSTEMS

A187834

SPECIAL RING

SWIVEL ASSEMBLY - electrical, Includes: Ref. 1 - 15

1шт.

1

A191104

HARNESS

- electrical swivel, upper

1шт.

2

A191105

HARNESS

- electrical swivel, lower

1шт.

3

A191106

BRUSH ASSY.

BRUSH - contact, large, 45 amp, includes brushes, arms, spring and wire leads

2шт.

4

A191107

BRUSH ASSY.

BRUSH - contact, small, 10 amp, includes brushes, arms, spring and wire leads

22шт.

5

A191108

COVER

SEAL - cover to base plate

1шт.

6

NSS

NOT SOLD SEPARAT

NUT - hex, cover and stud retaining

4шт.

7

NSS

NOT SOLD SEPARAT

COVER - swivel contact ring and brushes

1шт.

8

NSS

NOT SOLD SEPARAT

STUD - retaining, brushes

2шт.

9

NSS

NOT SOLD SEPARAT

COLLAR - retaining, brushes and plate, includes set screw

4шт.

10

NSS

NOT SOLD SEPARAT

PLATE - upper, swivel

1шт.

11

NSS

NOT SOLD SEPARAT

SWIVEL - electrical, includes contact rings, base plate, and mounting flange

1шт.

12

NSS

NOT SOLD SEPARAT

ELBOW - strain relief, includes nut and seal

1шт.

13

NSS

NOT SOLD SEPARAT

SPACER - retaining stud

2шт.

14

NSS

NOT SOLD SEPARAT

WASHER - special, stud

2шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

16

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

1шт.

17

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

1шт.

18

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

3шт.

19

492-11038

LOCK WASHER,3/8"

3шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

21

S619599

HARNESS

- extension, for swivel, 30 inch and 60 inch cab riser, Includes: Ref. 22 and 23

1шт.

22

245329C1

CONNECTOR, ELEC

CAB METAL PLUG 23C

1шт.

23

245330C1

CONNECTOR, ELEC

CONNECTOR - at cab harness

1шт.
