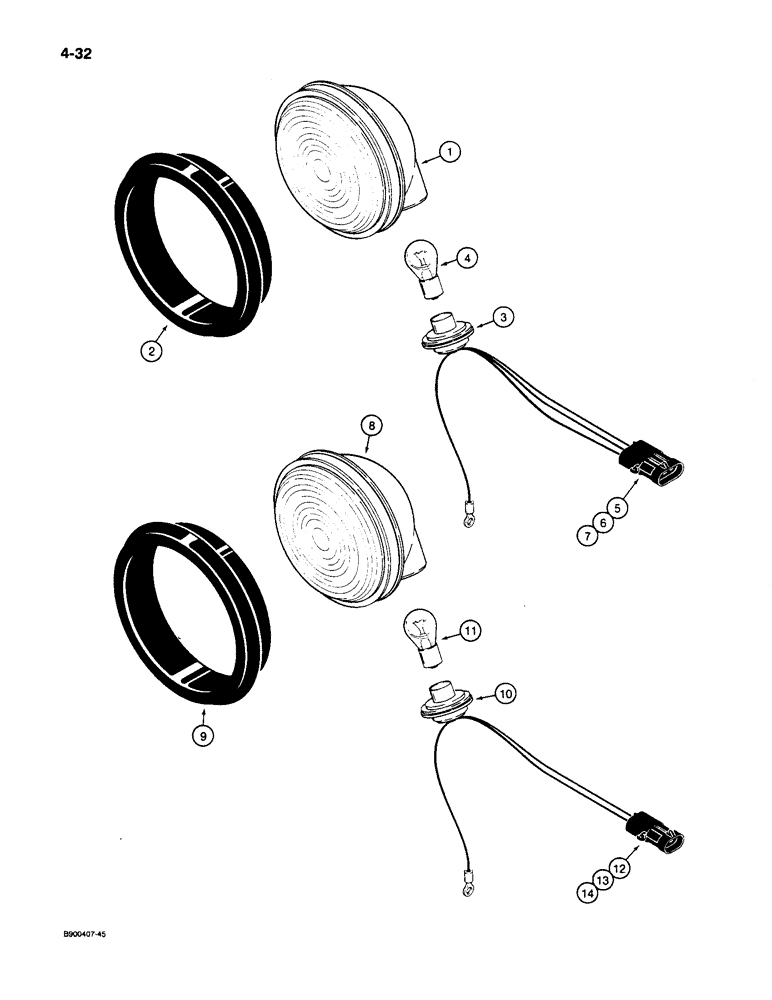

Запчасти Case 1085C (4-32) - LAMPS, STOP AND TAIL AND TURN SIGNAL (04) - ELECTRICAL SYSTEMS

S243738

LIGHT ASSY.

LAMP ASSEMBLY - red stop and tail, Includes: Ref. 1 - 7

2шт.

1

N60379

HOUSING ASSY.

HOUSING - lamp, includes red lens

1шт.

2

N60380

GROMMET

RETAINER - lamp, rubber

1шт.

3

N60381

SOCKET

ASSEMBLY - lamp

1шт.

4

L33194

BULB

- lamp, 24 volt, No. 1662

1шт.

5

245485C1

ELEC CONNECTOR,Male, 3 Pin

CONNECTOR - receptacle, 3 contact

1шт.

6

225119C1

TERMINAL

- receptacle

3шт.

7

225125C1

SEAL

- terminal

3шт.

S243739

LIGHT ASSY.

LAMP ASSEMBLY - amber, front and rear turn signal, Includes: Ref. 8 - 14

4шт.

8

N60382

HOUSING ASSY.

HOUSING - lamp, includes amber lens

1шт.

9

N60380

GROMMET

RETAINER - lamp, rubber

1шт.

10

N60383

SOCKET

ASSEMBLY - lamp

1шт.

11

A15084

LAMP

BULB - lamp, 24 volt, No. 1683

1шт.

12

245483C1

ELEC CONNECTOR,Male, 2 Pin

CONNECTOR - receptacle, 2 contact

1шт.

13

225119C1

TERMINAL

- receptacle

2шт.

14

225125C1

SEAL

- terminal

2шт.
