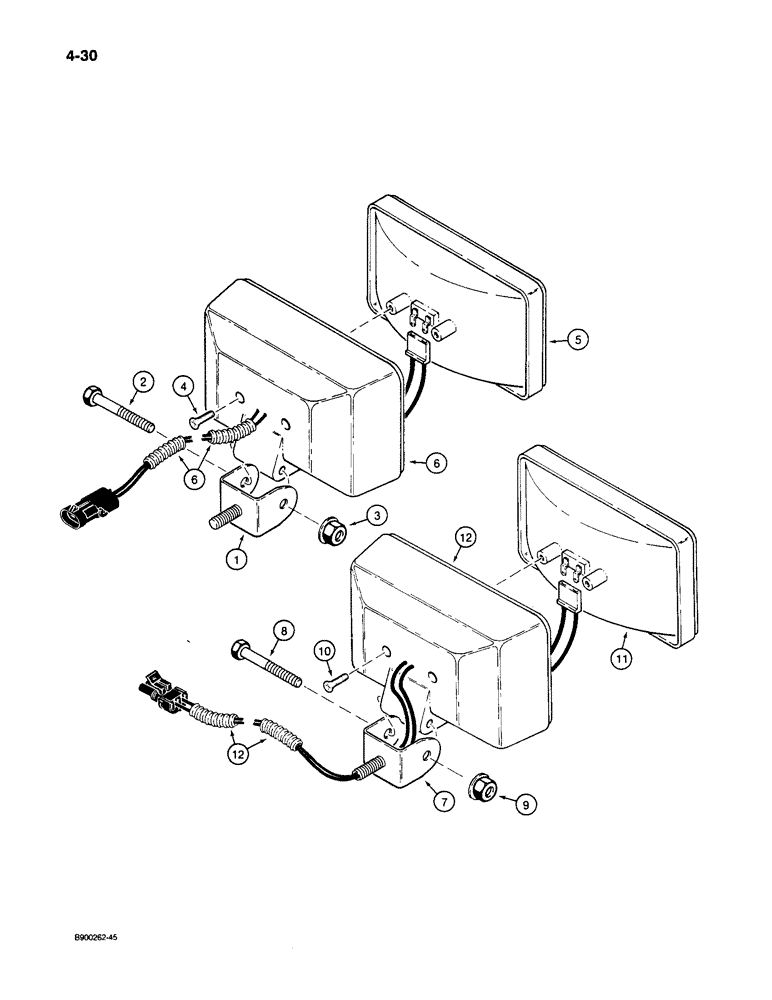

Запчасти Case 1085C (4-30) - LAMPS, FRONT AND WORK (04) - ELECTRICAL SYSTEMS

A187519

LIGHT ASSY.,24V, 70W, Clear

LAMP ASSEMBLY - front, Includes: Ref. 1 - 6

2шт.

1

A187913

SUPPORT

BRACKET - lamp, front

1шт.

2

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Front lamp Hex, 5/16"-18 x 2", G5

1шт.

3

131-937

FLANGE NUT,Flg, 5/16"-18

NUT - hex flange, self-locking, 5/16 inch NC, front lamp

1шт.

4

187-625

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

SCREW - flat head, self-tapping, No. 8 x 1/2 inch, front lamp

2шт.

5

N9427

HEADLIGHT

BULB - sealed beam, front lamp

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING - lamp, front

1шт.

A187520

LIGHT ASSY.,24V, 70W, Clear

LAMP ASSEMBLY - work, Includes: Ref. 7 - 12

3шт.

7

A187913

SUPPORT

BRACKET - lamp, work

1шт.

8

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Work lamp Hex, 5/16"-18 x 2", G5

1шт.

9

131-937

FLANGE NUT,Flg, 5/16"-18

NUT - hex flange, self-locking, 5/16 inch NC, work lamp

1шт.

10

187-625

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

SCREW - flat head, self-tapping, No. 8 x 1/2 inch, work lamp

2шт.

11

F45305

HEADLIGHT

BULB - sealed beam, work lamp

1шт.

12

NSS

NOT SOLD SEPARAT

HOUSING - lamp, work

1шт.
