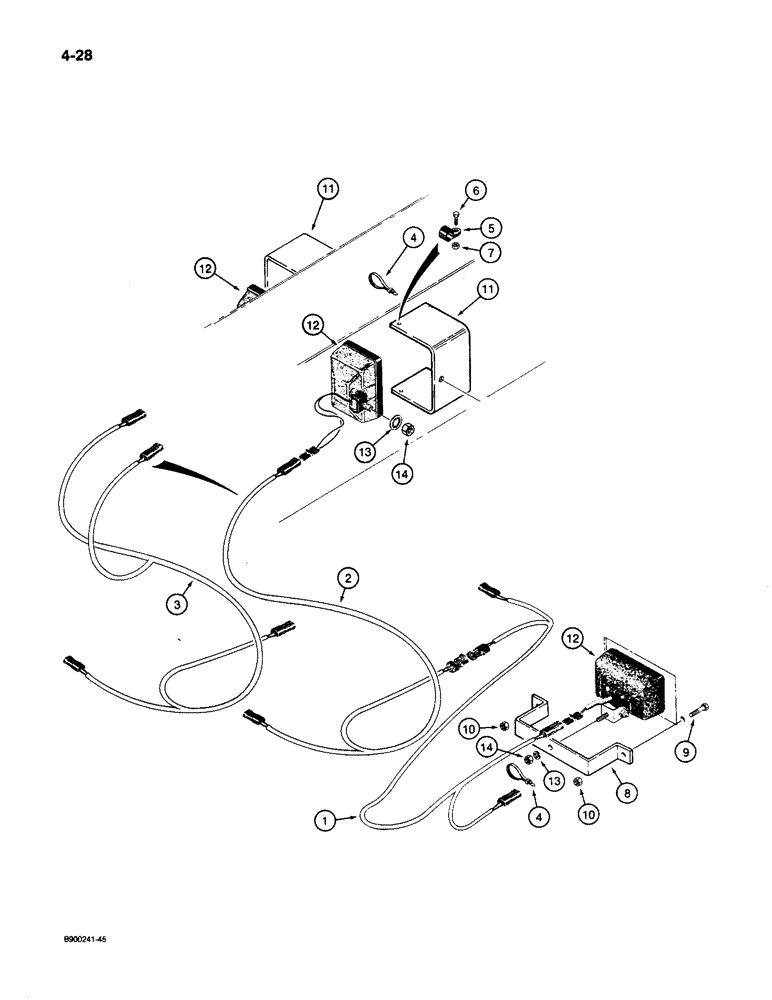

Запчасти Case 1085C (4-28) - WORK LAMPS AND HARNESSES (04) - ELECTRICAL SYSTEMS

1

S517648

HARNESS

- to work lamp at turntable, used with excavating boom

1шт.

2

S517924

HARNESS

- to work lamps at boom, used with excavating boom

1шт.

3

S517859

HARNESS

- to work lamps at turntable and arm, used with material handling arm

1шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

5

49845

CLAMP

- harness, at work lamp bracket

2шт.

6

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

7

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

8

S243653

BRACKET

- mounting, work, Serial Range: lamp-turntable

1шт.

9

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

10

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

11

S242621

BRACKET

- work lamp, welds to excavator boom or material handling arm

2шт.

12

A187520

LIGHT ASSY.,24V, 70W, Clear

LAMP ASSEMBLY - work, parts list Figure: 4-30

3шт.

13

93-21052

LOCK WASHER,Int Tooth, 1/2"

WASHER - lock, internal tooth, 1/2 inch

3шт.

14

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

3шт.
