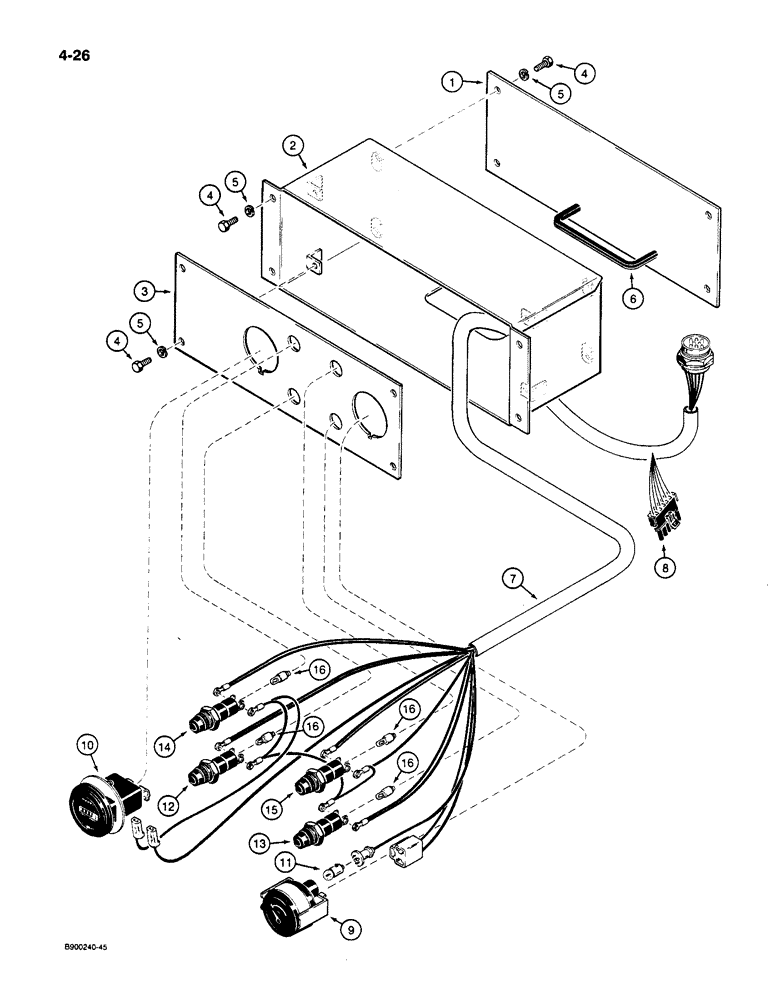

Запчасти Case 1085C (4-26) - INSTRUMENT PANEL ELECTRICAL HARNESS (04) - ELECTRICAL SYSTEMS

1

S517523

PANEL

COVER - rear access, box

1шт.

2

S619403

HOUSING

BOX - electrical, instrument panel

1шт.

3

S517522

PANEL

- engine instrument

1шт.

4

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

12шт.

5

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

12шт.

6

REF

INSTRUCTION

GUARD - edge, 8 inch (203 mm) long, cut from F42827, see below

1шт.

7

S517661

HARNESS

- instrument panel, Includes: Ref. 8

1шт.

8

A187813

DIODE

- instrument panel harness

1шт.

9

L125857

VOLTMETER

GAUGE - voltmeter

1шт.

10

S516994

GAUGE

HOURMETER - engine

1шт.

11

S116543

BULB

- gauge, voltmeter

1шт.

12

S243319

LAMP

- warning, coolant temperature

1шт.

13

S239150

LIGHT

LAMP - warning, hydraulic oil filter

1шт.

14

S240123

LIGHT

LAMP - warning, torque converter temperature

1шт.

15

S242610

LIGHT

LAMP - warning, engine oil pressure

1шт.

16

A25258

BULB

- warning lamp

4шт.

F42827

TRIM,2946.4mm L

GUARD - edge, bulk roll, 116 inch (2946 mm) long

1шт.
