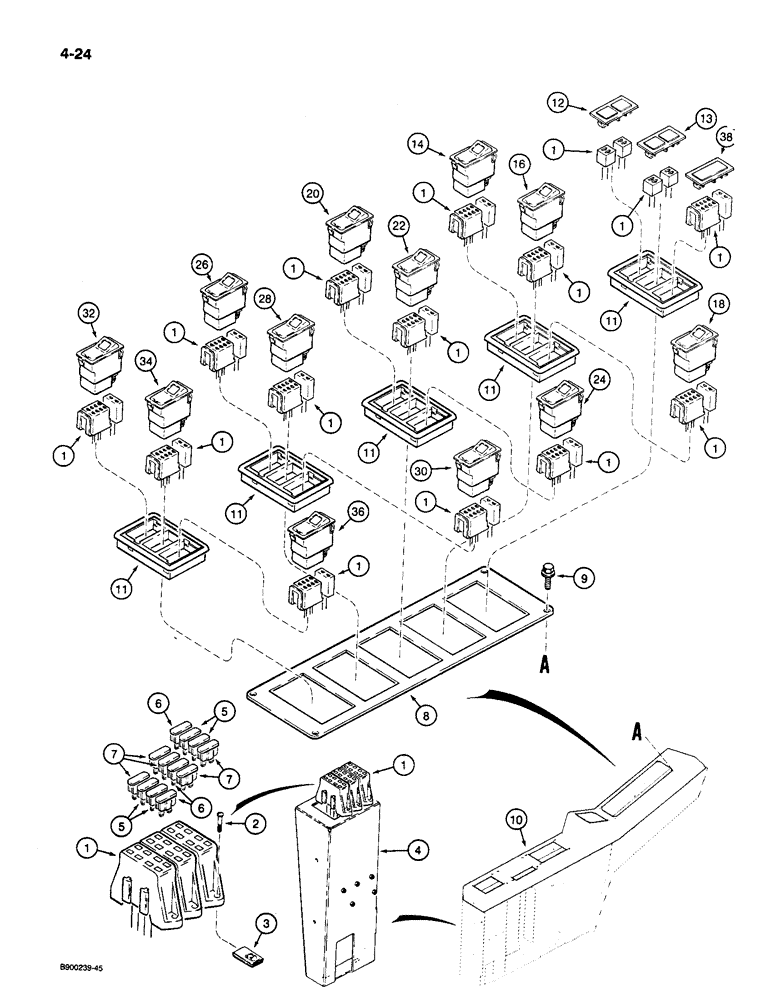

Запчасти Case 1085C (4-24) - RIGHT-HAND CONSOLE ELECTRICAL PANEL, SWITCHES AND FUSES (04) - ELECTRICAL SYSTEMS

1

S619549

HARNESS

- cab, see Figure: 4-16 for continuation of harness

1шт.

2

70-11012

SCREW,Slotted Pan Hd, #10-24 x 3/4"

- machine, pan, slotted, No. 10 NC x 3/4 inch

4шт.

3

S117167

CLIP

NUT - U-type, No. 10 NC

4шт.

4

S619448

BRACKET

- mounting, fuse block, see Figure: 4-22 for related console parts

1шт.

5

A149798

FUSE

- 5 ampere (Tan)

4шт.

6

A149799

FUSE

- 7.5 ampere (Brown)

3шт.

7

A149800

FUSE,10 Amp

- 10 ampere (Red)

5шт.

8

S243178

PANEL

PLATE - mounting, switch panel

1шт.

9

163-39

SCREW,Hex Wshr Hd, #10 - 24 x 3/4", Gr 5

- machine, hex washer head, No. 10 NC x 3/4 inch

4шт.

10

S957062

CONSOLE

- switch panel plate, see Figure: 4-22 for related console parts

1шт.

11

A187581

SWITCH

PANEL - RH electrical, mounting, 3-place rocker switch frame

5шт.

12

A187870

LAMP

- warning, master and low brake pressure

1шт.

13

A187870

LAMP

- warning, parking brake and steering pressure

1шт.

14

A187762

SWITCH

- rocker, front axle oscillation lock, Includes: Ref 15

1шт.

See Figure: 9-092 for rocker switch decals.

1шт.

15

926645C1

BULB,W5, 12V, 1.2W

- W5/1,2 24V1, 2W, not shown

1шт.

16

A187799

SWITCH

- rocker, transmission range, Includes: Ref 17

1шт.

See Figure: 9-092 for rocker switch decals.

1шт.

17

926645C1

BULB,W5, 12V, 1.2W

- W5/1,2 24V1, 2W, not shown

1шт.

18

A187762

SWITCH

- rocker, parking brake, Includes: Ref 19

1шт.

See Figure: 9-092 for rocker switch decals.

1шт.

19

926645C1

BULB,W5, 12V, 1.2W

- W5/1,2 24V1, 2W, not shown

1шт.

20

A187622

SWITCH

- rocker, ether cold start, Includes: Ref 21

1шт.

See Figure: 9-092 for rocker switch decals.

1шт.

21

926645C1

BULB,W5, 12V, 1.2W

- W5/1,2 24V1, 2W, not shown

1шт.

22

A187796

SWITCH

- rocker, front lamp, Includes: Ref 23

1шт.

See Figure: 9-092 for rocker switch decals.

1шт.

23

926645C1

BULB,W5, 12V, 1.2W

- W5/1,2 24V1, 2W, not shown

1шт.

24

A187796

SWITCH

- rocker, work lamp, if used, Includes: Ref 25

1шт.

See Figure: 9-092 for rocker switch decals.

1шт.

25

926645C1

BULB,W5, 12V, 1.2W

- W5/1,2 24V1, 2W, not shown

1шт.

26

A187882

TOGGLE SWITCH

SWITCH - rocker, left front outrigger, if used, Includes: Ref 27

1шт.

See Figure: 9-092 for rocker switch decals.

1шт.

27

926645C1

BULB,W5, 12V, 1.2W

- W5/1,2 24V1, 2W, not shown

1шт.

28

A187882

TOGGLE SWITCH

SWITCH - rocker, right front outrigger, if used, Includes: Ref 29

1шт.

See Figure: 9-092 for rocker switch decals.

1шт.

29

926645C1

BULB,W5, 12V, 1.2W

- W5/1,2 24V1, 2W, not shown

1шт.

30

A187621

SWITCH

- rocker, windshield wiper, Includes: Ref 31

1шт.

See Figure: 9-092 for rocker switch decals.

1шт.

31

926645C1

BULB,W5, 12V, 1.2W

- W5/1,2 24V1, 2W, not shown

1шт.

32

A187882

TOGGLE SWITCH

SWITCH - rocker, left rear outrigger, Includes: Ref 33

1шт.

See Figure: 9-092 for rocker switch decals.

1шт.

33

926645C1

BULB,W5, 12V, 1.2W

- W5/1,2 24V1, 2W, not shown

1шт.

34

A187882

TOGGLE SWITCH

SWITCH - rocker, right rear outrigger, Includes: Ref 35

1шт.

See Figure: 9-092 for rocker switch decals.

1шт.

35

926645C1

BULB,W5, 12V, 1.2W

- W5/1,2 24V1, 2W, not shown

1шт.

36

A187622

SWITCH

- rocker, windshield washer, if used, Includes: Ref 37

1шт.

See Figure: 9-092 for rocker switch decals.

1шт.

37

926645C1

BULB,W5, 12V, 1.2W

- W5/1,2 24V1, 2W, not shown

1шт.

38

245918C1

LENS

PLUG - rocker switch, used in panel when rocker switch is not required

1шт.
