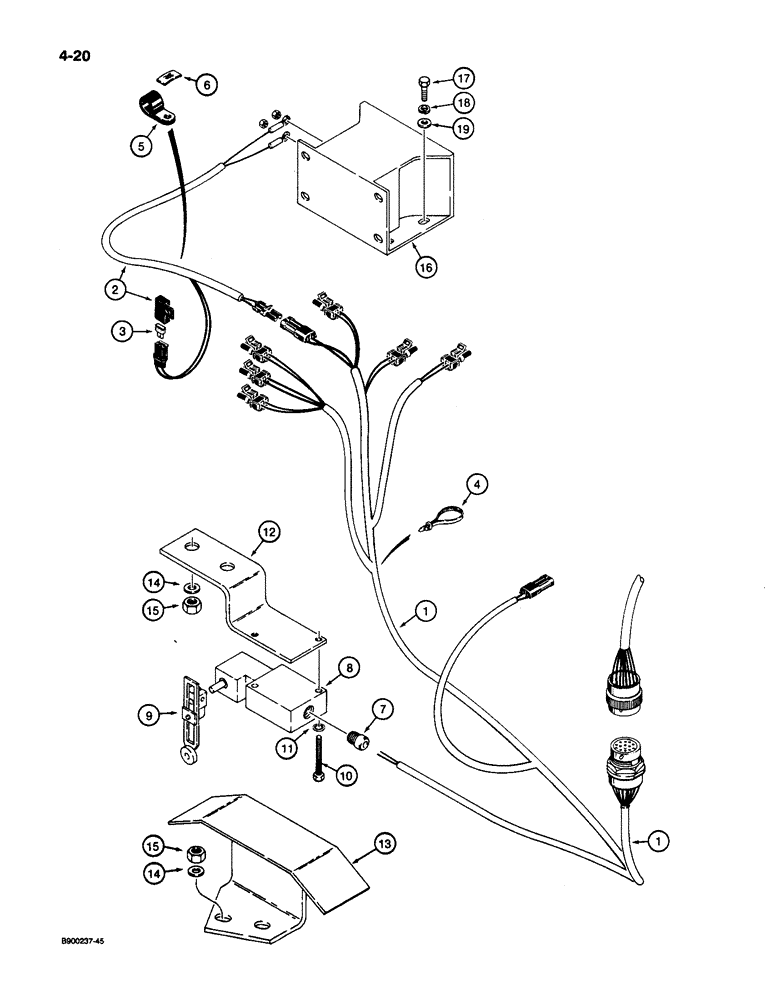

Запчасти Case 1085C (4-20) - BACKUP ALARM AND HARNESS (04) - ELECTRICAL SYSTEMS

1

S517646

HARNESS

- turntable, see Figure: 4-18 for related parts, Includes: Ref. 3

1шт.

2

S243468

HARNESS

- backup alarm, Includes: Ref. 3

1шт.

3

A149796

FUSE

- 3 amp, backup alarm

1шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

5

214-1202

CLAMP

- harness, 5/16 inch

2шт.

6

S48576

NUT

- speed, clamp to frame studs

2шт.

7

T29397

CONNECTOR, ELEC

CONNECTOR - harness, at switch

1шт.

8

S120338

SWITCH

- turntable position

1шт.

9

S120339

LEVER

- roller, adjustable

1шт.

10

163-24

SCREW,Hex Wshr Hd, #10 - 24 x 1 1/4"

- machine, hex, No. 10 NC x 1-1/4 inch

2шт.

11

93-81000

LOCK WASHER,Int Tooth, #10

WASHER - lock, internal tooth, No. 10

2шт.

12

S242535

BRACKET

- mounting, turntable position switch

1шт.

13

S242481

BRACKET

- roller, turntable position switch

1шт.

14

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

15

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8 inch NC

4шт.

16

D121972

ALARM

- backup

1шт.

17

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

2шт.

18

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

19

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.
