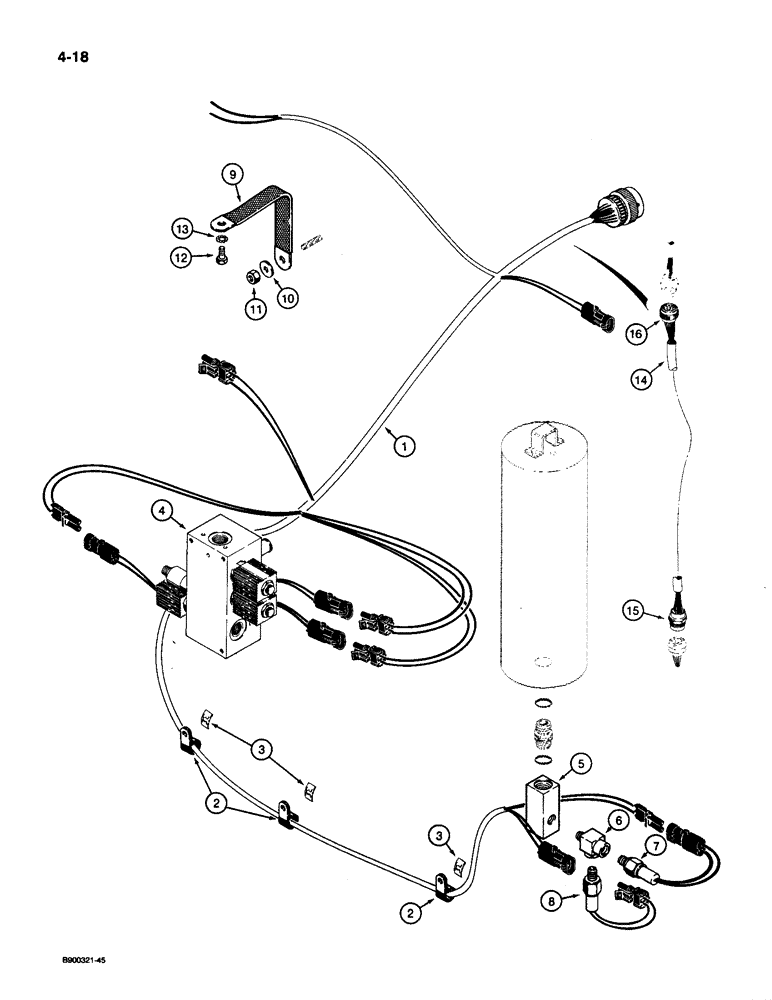

Запчасти Case 1085C (4-18) - TURNTABLE ELECTRICAL HARNESS (04) - ELECTRICAL SYSTEMS

1

S517646

HARNESS

- turntable

1шт.

2

214-1202

CLAMP

- turntable, Serial Range: harness-studs

3шт.

3

S48576

NUT

- speed, clamp to frame studs

3шт.

4

S517926

VALVE

ASSEMBLY - pilot manifold, parts list Figure: 8-40

1шт.

5

S517675

MANIFOLD

- at accumulators, brake and auxiliary steering

2шт.

6

217-1062

TEE,1/8" - 18 Female x 1/4" - 18 Male Run

- 1/4 inch PT female branch x female x male PT

1шт.

7

S243549

SWITCH

- warning lamp, low pressure, brake and auxiliary steering

2шт.

8

S243550

SWITCH

- warning lamp, low pressure, parking brake

1шт.

9

S90084

STRAP

- ground, at turntable

1шт.

10

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

- flat, brass, special

1шт.

11

L127555

NUT,Hex, 3/8" - 16

- hex, brass, special

1шт.

12

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

1шт.

13

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

WASHER - external-internal tooth lock, 3/8 inch

1шт.

14

S517870

HARNESS

- extension, for turntable harness, used on models with 30 inch and 60 inch cab riser, Includes: Ref. 15 and 16

1шт.

15

225233C1

CONNECTOR, ELEC

CONNECTOR - at turntable harness

1шт.

16

225237C1

ELEC CONNECTOR,Female, 14 Pin

CONNECTOR - at cab harness

1шт.
