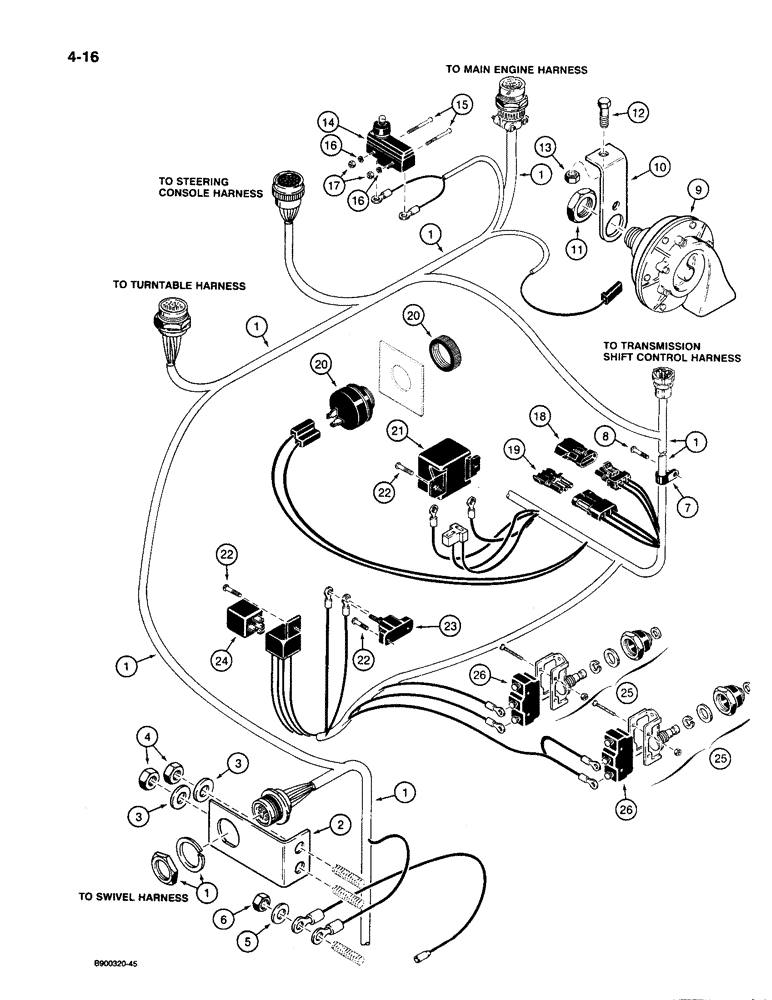

Запчасти Case 1085C (4-16) - CAB ELECTRICAL HARNESS (04) - ELECTRICAL SYSTEMS

1

S619549

HARNESS

- cab main, includes washer and locking nut

1шт.

2

S243644

BRACKET

- harness mounting, at turntable

1шт.

3

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-16 x 1/8 inch, hardened

2шт.

4

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

5

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

- flat, brass, special

1шт.

6

L127555

NUT,Hex, 3/8" - 16

- hex, brass, special

1шт.

7

214-1207

CLAMP

- cab harness

1шт.

8

70-11012

SCREW,Slotted Pan Hd, #10-24 x 3/4"

- machine, pan, slotted, No. 10 NC x 3/4 inch

1шт.

9

L10353

HORN

- electric, 24 volt

1шт.

10

L73799

BRACKET

- mounting, horn

1шт.

11

L30866

LOCK NUT

- special, horn mounting

1шт.

12

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

13

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

1шт.

14

S120861

SWITCH

- hydraulic interlock

1шт.

15

470-10620

SCREW,Pan HD, #6 - 32 x 1-1/4"

- machine, pan slotted, No. 6 NC x 1-1/4 inch

2шт.

16

492-11006

LOCK WASHER,#6

Washer, Lock, #6

2шт.

17

225-14106

NUT,#6-32

2шт.

18

A187826

DIODE

DIODE - warning lamp

1шт.

19

A187874

MODULE

- backup alarm

1шт.

20

245854C1

BUZZER

- alarm

1шт.

21

L115883

RELAY

- cab power

1шт.

22

70-11012

SCREW,Slotted Pan Hd, #10-24 x 3/4"

- machine, pan, slotted, No. 10 NC x 3/4 inch

3шт.

23

L115178

BREAKER

- circuit, head lamp, 10 amp

1шт.

24

S243589

RELAY

- neutral start

1шт.

25

S243361

ACTUATOR

- switch, throttle interlock

2шт.

26

S120858

SWITCH

- throttle interlock

2шт.
