Запчасти Case 1085C (4-14) - RELAY PANEL AND HARNESS (04) - ELECTRICAL SYSTEMS

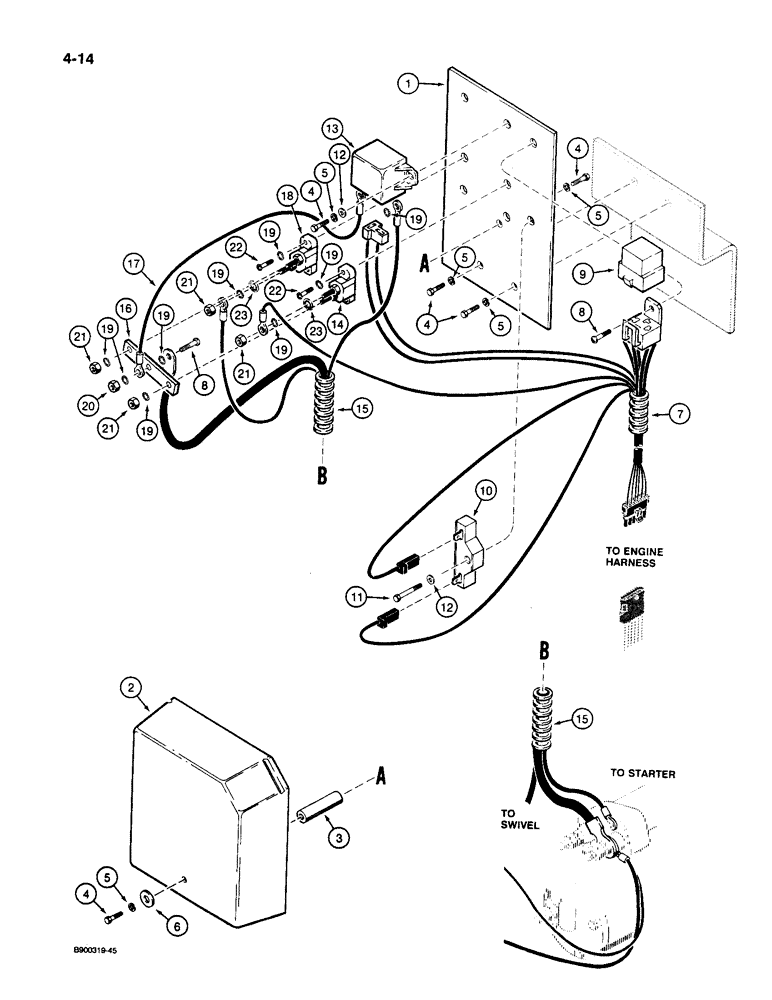

Схема запчастей Case 1085C - (4-14) - RELAY PANEL AND HARNESS (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

S517650

PLATE

PANEL - relay mounting

1шт.

2

L114612

COVER

- relay panel

1шт.

3

L114195

SPACER

-, Serial Range: cover-panel

1шт.

4

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

6шт.

5

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

6

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

1шт.

7

S619492

HARNESS

- chassis power relay

1шт.

8

70-11010

SCREW,Slotted Pan Hd, #10-24 x 5/8"

- machine, pan slotted, No. 10 NC x 5/8 inch

2шт.

9

S243589

RELAY

- chassis power

1шт.

10

F22316

RESISTOR,75 Ohms 0.2 Amps DC

- 75 ohm

1шт.

12

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

3шт.

13

L115883

RELAY

- starter

1шт.

14

S243558

CIRCUIT-BREAKER,12.5A

BREAKER - circuit, 12-1/2 amp

1шт.

15

S243504

CABLE

HARNESS - starter and swivel

1шт.

16

L114028

BAR

- connector, circuit breaker

1шт.

17

L114058

HARNESS

WIRE - jumper, bar to starter relay

1шт.

18

S243561

BREAKER

- circuit, 40 amp

1шт.

19

493-11020

LOCK WASHER,5.08mm ID x 12.75mm OD x 1.02mm Thk

WASHER, LOCK, Ext-Int Tooth, #10

6шт.

20

225-14110

NUT,#10-24

Machine screw #10-24

1шт.

21

225-10210

NUT,#10-32

4шт.

22

140-110

SCREW,Cross Pan Hd, #10 - 24 x 1"

- machine, pan Phillips, No. 10 NC x 7/8 inch

4шт.

23

93-41020

LOCK WASHER,Ext Tooth, #10

WASHER - internal tooth lock, 3/16 inch

4шт.

11

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

Выбрано товаров: 23
