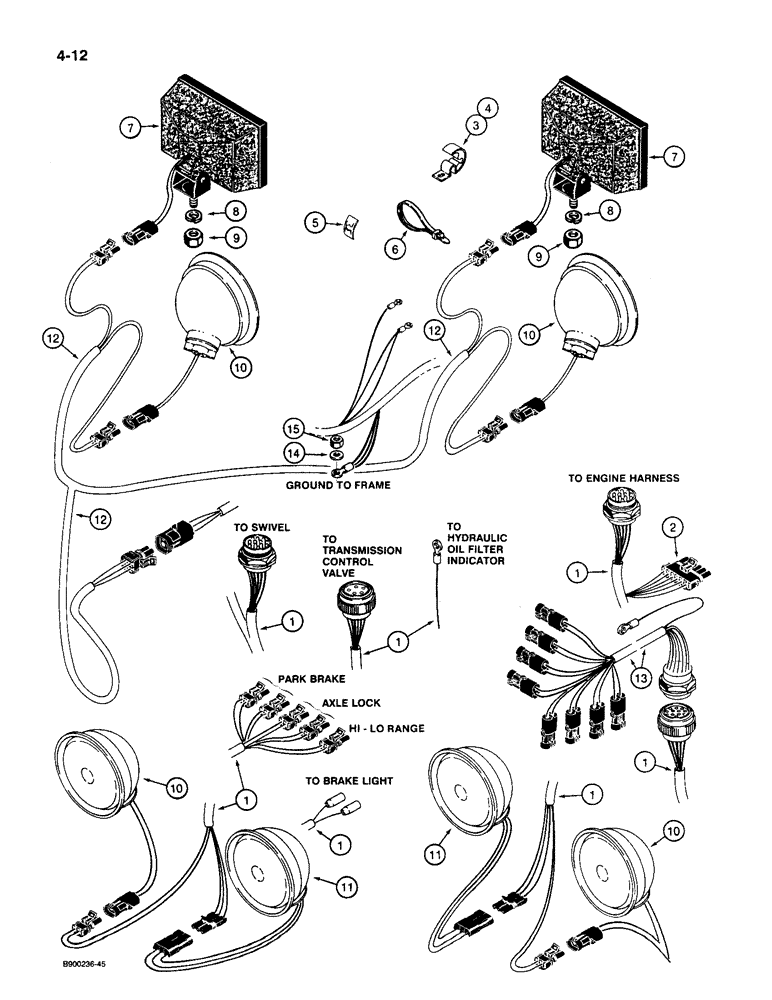

Запчасти Case 1085C (4-12) - MAIN FRAME LOWER ELECTRICAL HARNESS (04) - ELECTRICAL SYSTEMS

1

S619496

HARNESS

- lower main frame, Includes: Ref. 2

1шт.

2

A187813

DIODE

- main frame harness

1шт.

3

214-1210

CLAMP

- harness, 1-1/4 inch ID

4шт.

4

214-1204

CLAMP

- harness, 1/2 - 5/8 inch dia

5шт.

5

S48576

NUT

- speed, clamp to frame studs

9шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

7

A187519

LIGHT ASSY.,24V, 70W, Clear

LAMP ASSEMBLY - front, parts list Figure: 4-30

2шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

10

S243739

LIGHT ASSY.

LAMP ASSEMBLY - amber, front and rear turn, parts list Figure: 4-32

4шт.

11

S243738

LIGHT ASSY.

LAMP ASSEMBLY - red, stop and tail, parts list Figure: 4-32

2шт.

12

S517660

HARNESS

- front lamps

1шт.

13

S517665

HARNESS

- outrigger control valve

1шт.

14

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

- flat, special, brass

1шт.

15

L127555

NUT,Hex, 3/8" - 16

- hex, special, brass

1шт.
