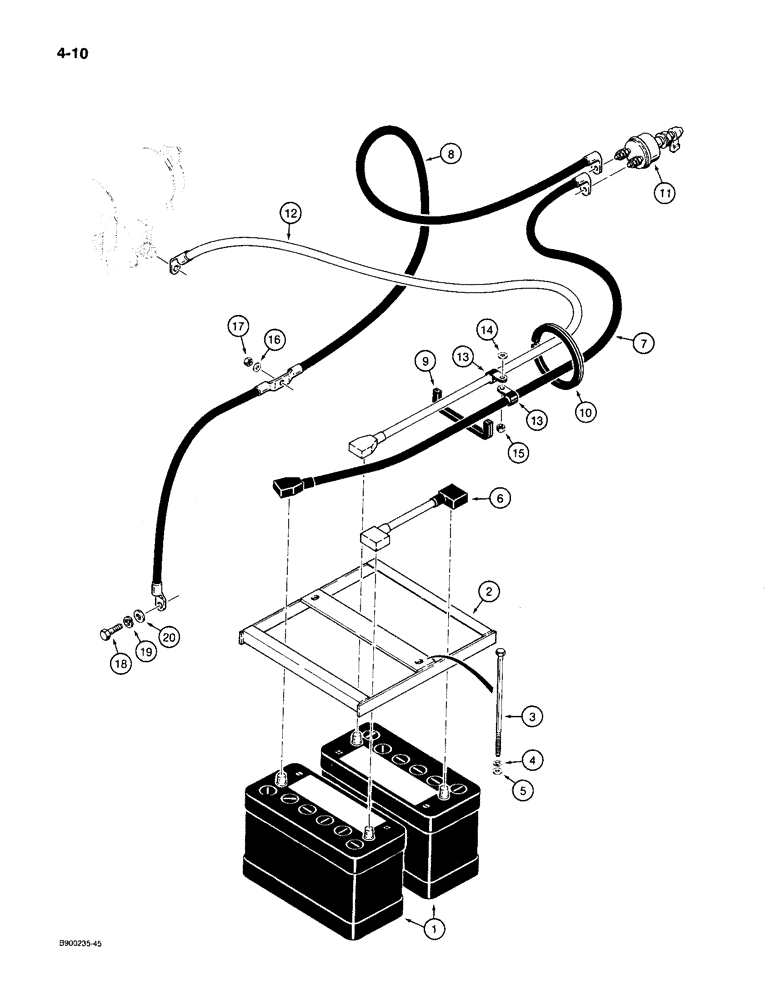

Запчасти Case 1085C (4-10) - BATTERIES, BATTERY MOUNTING, AND CABLES (04) - ELECTRICAL SYSTEMS

1

BMF31E

DRY BATTERY

BATTERY, DRY - electrical, 12 volt

2шт.

2

S517712

BRACKET

RETAINER - battery

1шт.

3

115-218

BOLT,Hex, 3/8" - 16 x 10", Gr 2

2шт.

4

492-11038

LOCK WASHER,3/8"

2шт.

5

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

6

S243335

CABLE

- battery to battery, 8 inch (203 mm) long

1шт.

7

S517838

CABLE

- battery to switch, negative, 48 inch (1220 mm) long

1шт.

8

S517836

CABLE

- switch to ground, negative, 44 inch (1118 mm) long

1шт.

9

REF

INSTRUCTION

GUARD - cable protector, 5-3/4 inch (146mm) long, cut from D52812, see below

1шт.

10

REF

INSTRUCTION

GUARD - cable protector, 10 inch (250 mm) long, cut from D52812, see below

1шт.

11

R52278

SWITCH

- battery disconnect

1шт.

12

S243336

CABLE

- battery to starter solenoid, positive, 49-1/4 inch (1250 mm) long

1шт.

13

49885

CLAMP

-, Serial Range: cable-frame

2шт.

14

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

15

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8 inch NC

1шт.

16

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

- flat, special, copper

1шт.

17

L126318

NUT

- hex, special, copper

1шт.

18

814-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, 12 - 1.75 x 25 mm

1шт.

19

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

20

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

D52812

RUBBER STRIP

GUARD - edge, bulk roll, 83 inch (2108 mm) long

1шт.
