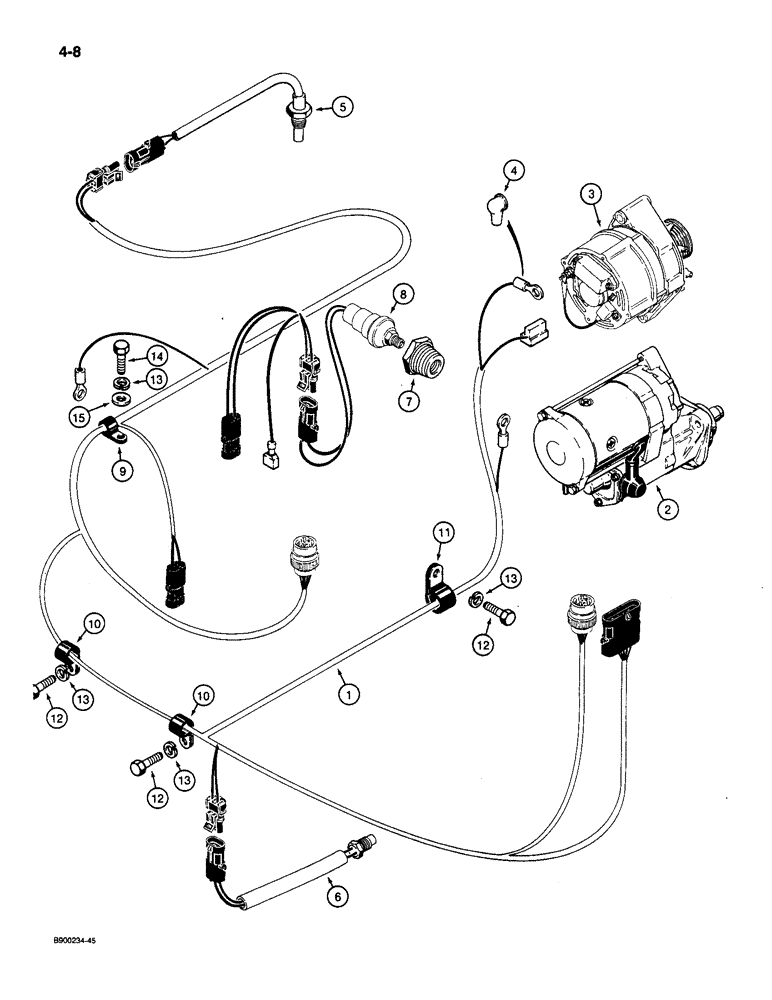

Запчасти Case 1085C (4-08) - ENGINE ELECTRICAL SYSTEM (04) - ELECTRICAL SYSTEMS

1

S619491

HARNESS

- engine

1шт.

2

D129494

STARTING MOTOR

STARTER ASSEMBLY - engine, parts list Figure: 4-02, mounting parts Figure: 4-06

1шт.

2

1987566C1GV

STARTER MOTOR,24V, 5.5kW

Value

1шт.

2

1987566C1R

REMAN-STARTER,24V, 5.5kW

Reman For New PN D129494

1шт.

2

1987566C1C

CORE-STARTER,24V, 5.5kW

Return Number

1шт.

3

A186124

ALTERNATOR

ASSEMBLY - engine, parts list Figure: 4-04, mounting parts Figure: 4-06

1шт.

4

S64612

BOOT

- rubber, at alternator connection

1шт.

5

A187867

SWITCH

- warning lamp, engine temperature

1шт.

6

A187530

TEMPERATURE SENDER

SWITCH - warning lamp, torque converter temperature

1шт.

7

221-603

REDUCER,Hex, 1" x 1/2" NPT

- pipe, 1 male x 1/2 inch female

1шт.

8

A187723

SENDER UNIT

SWITCH - warning lamp, engine oil pressure

1шт.

9

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- cold start solenoid wire to transmission filter bracket

1шт.

10

S88820

CLAMP

- engine harness, at rear of engine

2шт.

11

51200329

CLIP

CLAMP - engine harness, at right-hand side of engine

1шт.

12

613-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

3шт.

13

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

14

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

Harness ground Hex, M12 x 20, 8.8, Full Thd

1шт.

15

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.
