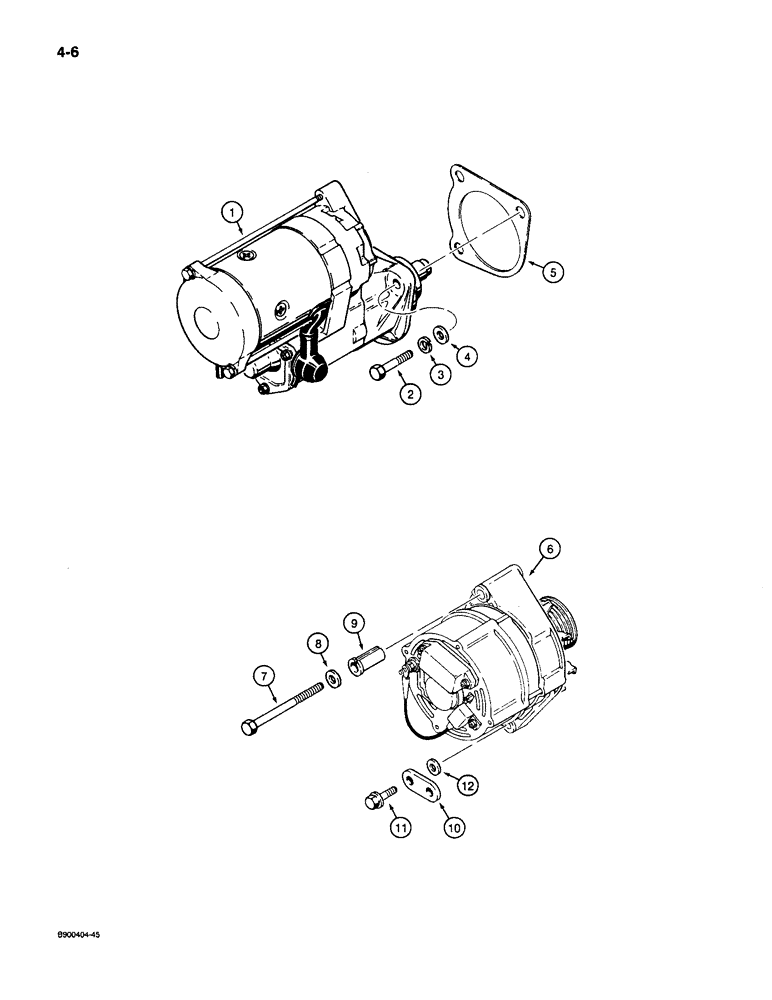

Запчасти Case 1085C (4-06) - STARTER AND ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

D129494

STARTING MOTOR

STARTER ASSEMBLY - engine, parts list Figure: 4-02

1шт.

1

1987566C1GV

STARTER MOTOR,24V, 5.5kW

Value

1шт.

1

1987566C1R

REMAN-STARTER,24V, 5.5kW

Reman For New PN D129494

1шт.

1

1987566C1C

CORE-STARTER,24V, 5.5kW

Return Number

1шт.

2

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

BOLT - hex, 10 mm - 1.5 x 40 mm

3шт.

3

892-11010

LOCK WASHER,M10

LOCK WASHER, M10

3шт.

4

496-21041

WASHER,13/32" x 13/16" x .089", HDN

WASHER - flat, 13/32 x 13/16 x 3/32", hardened

3шт.

5

L112209

GASKET,0.79mm Thk

GASKET - starting motor

1шт.

6

A186124

ALTERNATOR

ALTERNATOR ASSEMBLY - electrical, parts list Figure: 4-04

1шт.

6

AR186124

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

6

AC186124

CORE-ALTERNATOR

Return Number

1шт.

7

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

BOLT - hex, 10 - 1.5 x 100 mm

1шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

WASHER - flat, 11 x 21 x 2 mm

1шт.

9

J902469

SPACER

SPACER - alternator

1шт.

10

J903089

SUPPORT

BRACE - alternator mounting

1шт.

11

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

BOLT - hex flange, 8 mm - 1.25 x 20 mm

2шт.

12

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

WASHER - special, hardened

1шт.
