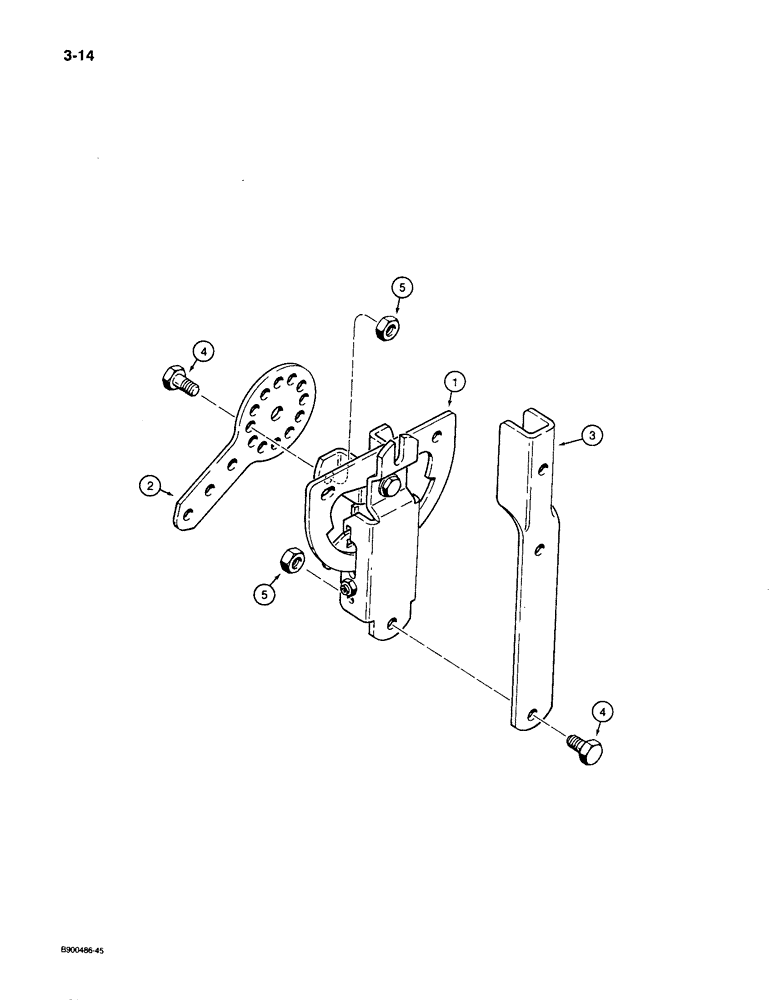

Запчасти Case 1085C (3-14) - THROTTLE CONTROL ASSEMBLY (03) - FUEL SYSTEM

S517839

CONTROL

ASSEMBLY - throttle, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

UNIT - locking

1шт.

2

S301376

LEVER

- output

1шт.

3

S301377

ADAPTER

- input, lever attaching

1шт.

4

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

4шт.

5

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4 inch NC

4шт.
