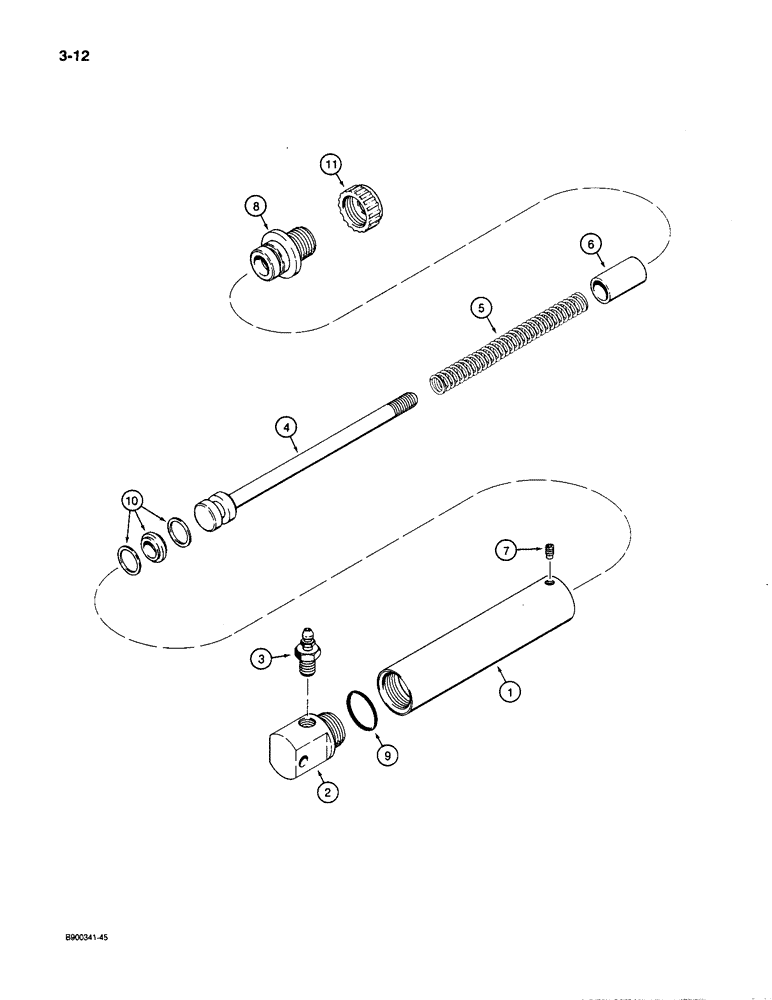

Запчасти Case 1085C (3-12) - ACCELERATOR SLAVE CYLINDER (03) - FUEL SYSTEM

S243750

CYLINDER

ASSEMBLY - accelerator slave, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

CAP - end

1шт.

3

D46258

PLUG

BREATHER - Y-fitting

1шт.

4

NSS

NOT SOLD SEPARAT

ROD - piston and push

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - piston

1шт.

6

NSS

NOT SOLD SEPARAT

SLEEVE - spring

1шт.

7

S301133

SCREW

- set, special

1шт.

8

NSS

NOT SOLD SEPARAT

CAP - end, includes bearings

1шт.

S301134

SEAL KIT

- seal, Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - cap, breather end

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - piston, three-piece

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - cap, shaft end

1шт.
