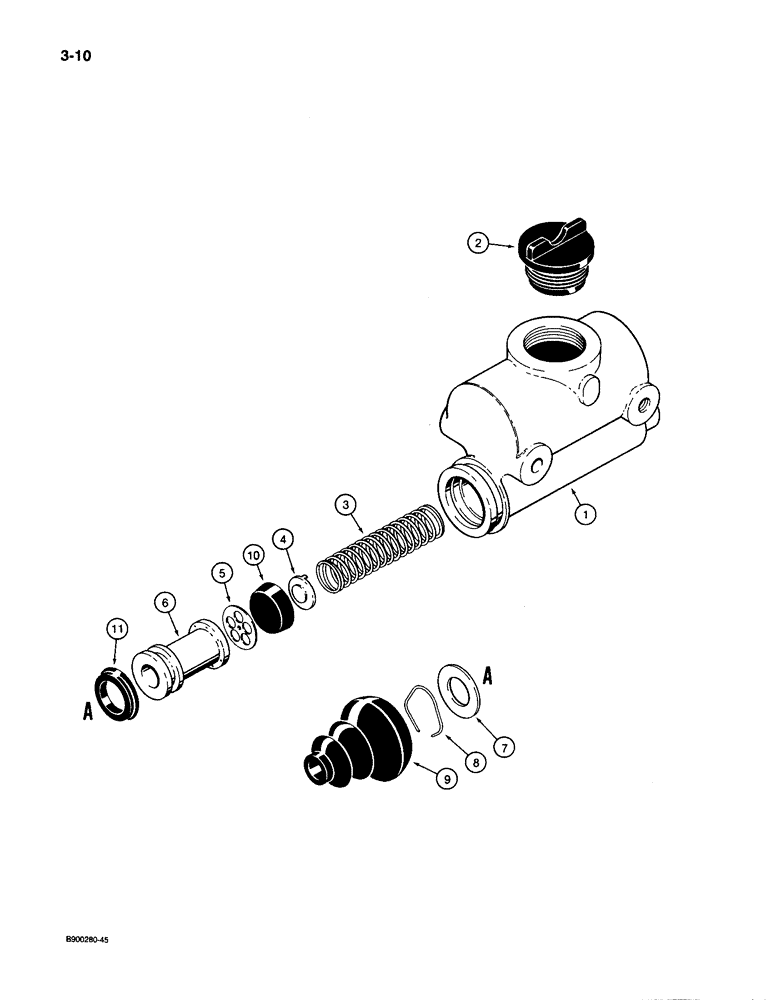

Запчасти Case 1085C (3-10) - ACCELERATOR MASTER CYLINDER (03) - FUEL SYSTEM

S517341

CYLINDER

ASSEMBLY - master, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder

1шт.

2

S301536

PLUG

CAP - filler

1шт.

3

NSS

NOT SOLD SEPARAT

SPRING - piston return

1шт.

4

NSS

NOT SOLD SEPARAT

RETAINER - piston

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER - piston, inner

1шт.

6

NSS

NOT SOLD SEPARAT

PISTON - cylinder

1шт.

7

NSS

NOT SOLD SEPARAT

WASHER - piston, outer

1шт.

8

NSS

NOT SOLD SEPARAT

RING - retaining, piston

1шт.

9

A18699

BOOT

- cylinder

1шт.

S301132

KIT

- cylinder repair, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

CUP - piston

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - cup, piston

1шт.
