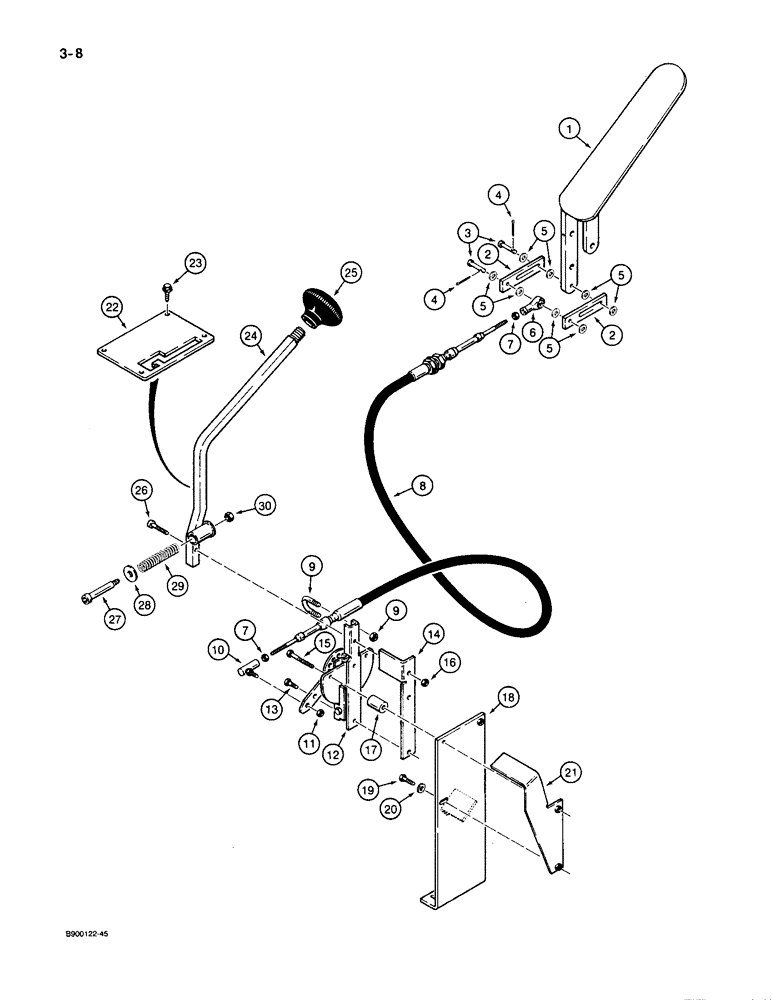

Запчасти Case 1085C (3-08) - ACCELERATOR LINKAGE, ACCELERATOR PEDAL TO THROTTLE CONTROL LEVER (03) - FUEL SYSTEM

1

S517447

PEDAL ASSY.

PEDAL - accelerator control, see Figure: 3-4, items 1 through 8 for mounting and pedal cover

1шт.

2

S120791

SLIDE

LINK - control cable

2шт.

3

141-62

CLEVIS PIN,1/4" x 1.219"

PIN - clevis, 1/4 x 1-1/8 inch

2шт.

4

32-410

COTTER PIN,1/16" x 5/8"

PIN, SPLIT (COTTER), 1/16" x 5/8"

2шт.

5

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

8шт.

6

L53928

BALL JOINT

JOINT - ball, control cable, at accelerator pedal

1шт.

7

425-114

NUT,1/4"-28, G5

2шт.

8

S243310

CABLE

- throttle control

1шт.

9

S120817

U-BOLT

BOLT - U-type, includes nuts, control cable mounting

1шт.

10

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT - ball, at throttle control

1шт.

11

131-498

LOCK NUT,1/4"-28, GB

NUT - hex, self-locking, 1/4 inch NF

1шт.

12

S517839

CONTROL

ASSEMBLY - throttle, parts list and mounting hardware on Figure: 3-14

1шт.

13

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch

2шт.

14

S243746

ANGLE

BRACKET - throttle control mounting

1шт.

15

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch

2шт.

16

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4 inch NC

1шт.

17

S121043

SPACER

- bracket

2шт.

18

S517554

BRACKET

- hand throttle mounting

1шт.

19

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

1шт.

20

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

1шт.

21

S517929

BRACKET

- accelerator switch mounting

1шт.

22

S517927

PLATE

- throttle lever

1шт.

23

163-39

SCREW,Hex Wshr Hd, #10 - 24 x 3/4", Gr 5

- machine, hex washer head, No. 10 NC x 3/4 inch

4шт.

24

S517931

BRACKET

LEVER - throttle control

1шт.

25

T34930

KNOB

- throttle control lever

1шт.

26

62-32520

HEX SOC SCREW,1/4"-28 x 1 1/4"

BOLT - hex socket, 1/4 NF x 1-1/4 inch

1шт.

27

121-250

STEP BOLT,Hex Skt, 5/16" - 18 - 3/8" x 2"

BOLT - shoulder, hex socket, 5/16 NC x 2 inch

1шт.

28

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

29

S121075

SPRING

- throttle control lever

1шт.

30

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

1шт.
