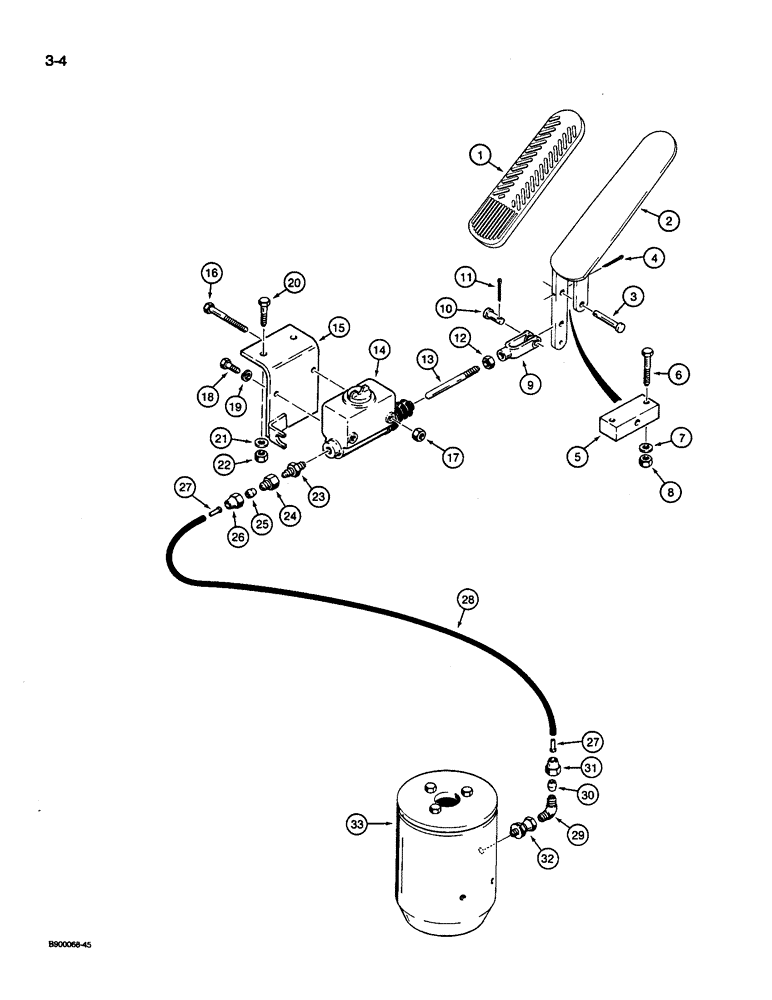

Запчасти Case 1085C (3-04) - ACCELERATOR LINKAGE, ACCELERATOR PEDAL TO UPPER HYDRAULIC SWIVEL (03) - FUEL SYSTEM

1

S86996

RUBBER STRIP

COVER - rubber, pedal

1шт.

2

S517447

PEDAL ASSY.

PEDAL - accelerator control

1шт.

3

S10777

PIN

- clevis, 3/8 x 2-1/64 inch, accelerator pedal

1шт.

4

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

5

S243134

BLOCK

- mounting, pedal

1шт.

6

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

7

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

8

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

9

213-41

ADJUSTABLE CLEVIS,3/8"-24

light 3/8"-24

1шт.

10

141-54

CLEVIS PIN,3/8" x 1 1/16"

1шт.

11

32-616

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

12

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NF

1шт.

13

S120789

ROD

- push, at master cylinder

1шт.

14

S517341

CYLINDER

ASSEMBLY - master, parts list Figure: 3-10

1шт.

15

S517448

BRACKET

- mounting, master cylinder

1шт.

16

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

- hex, 5/16 NC x 3 inch

1шт.

17

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

1шт.

18

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

19

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

20

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

21

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

22

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

23

218-1023

HYD CONNECTOR,1/2"-20, 37 Degree x 1/4"-18, NPTF

ADAPTER - straight, 1/2-20 flare x 1/4 inch PT, Includes: Ref. 24 - 26

1шт.

222-1810

FITTING,17/32"-24 x 1/4" NPT

ADAPTER - compression, 3/8 tube OD x 1/4 inch female PT, Includes: Ref. 24 - 26

1шт.

24

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

25

222-1860

SLEEVE,3/8" Tube, Comp

- spherical, 3/8 inch tube OD

1шт.

26

222-1865

NUT,17/32"-24, Sph Sleeve

NUT - hex, 3/8 tube OD x 17/32-24 inch

1шт.

27

222-2446

INSERT,1/4" Tube

SLEEVE - 3/8 inch tube OD

2шт.

28

S119899

HOSE,75.00"

- at swivel port 3 75.00"

1шт.

222-1848

ELBOW,90 Degree, 17/32"-24 x 1/4" NPT, Comp

- 90 degree, compression, 3/8 tube OD x 1/4 inch PT

1шт.

29

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

30

222-1860

SLEEVE,3/8" Tube, Comp

- spherical, 3/8 inch tube OD

1шт.

31

222-1865

NUT,17/32"-24, Sph Sleeve

NUT - hex, 3/8 tube OD x 17/32-24 inch

1шт.

32

S243455

ADAPTER

- at swivel port 3

1шт.

33

S517241

PIVOT

SWIVEL ASSEMBLY - hydraulic, upper, parts list Fig. 8-58

1шт.
