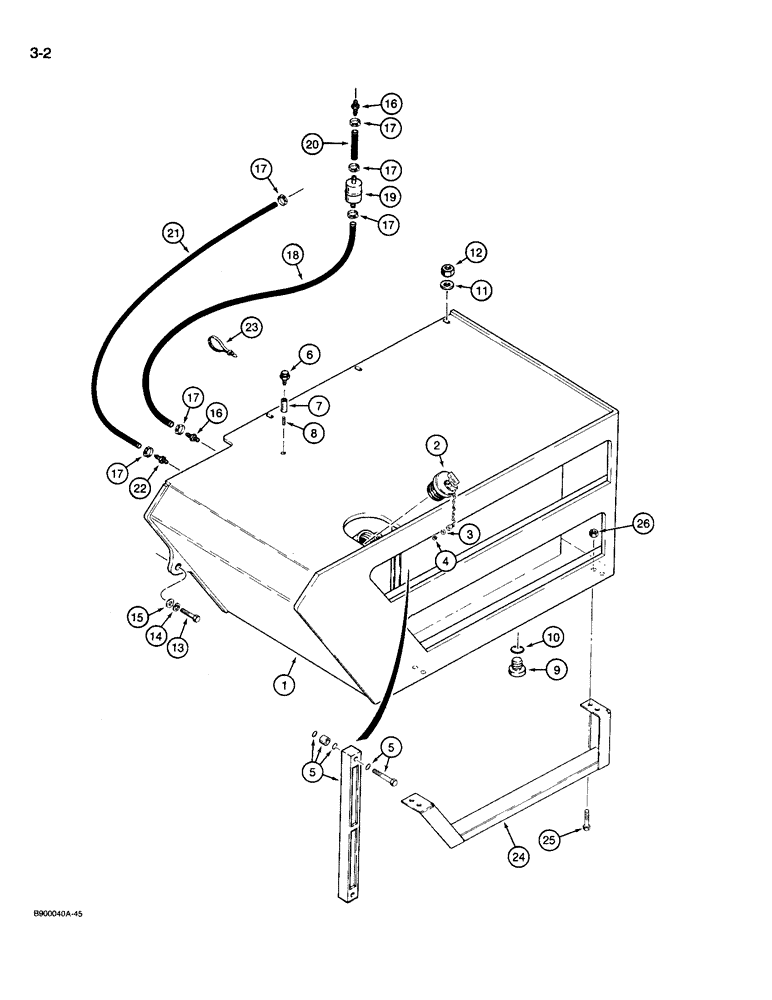

Запчасти Case 1085C (3-02) - FUEL TANK AND LINES (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
S957122
FUEL TANK
TANK - fuel
1шт.
2
S243775
CAP
- filler, includes chain, fuel tank
1шт.
3
495-21050
WASHER,7/16"
- flat, 1/2 x 1-1/4 x 5/64 inch
1шт.
4
131-52
NUT,3/8"-16, GC
NUT - light hex, self-locking, 3/8 inch NC
1шт.
5
S243765
GAUGE
- fuel, includes mounting hardware
1шт.
6
S120420
PLUG
- vented, with filter, fuel tank
1шт.
7
221-1336
COUPLING,Pipe, 1/4" NPT
- pipe, 1/4 inch PT
1шт.
8
221-1130
PIPE,Nipple, 1/4" NPT x 7/8"
NIPPLE - straight, 1/4 PT x 7/8 inch
1шт.
9
218-5214
PLUG,Hex Soc, 1 5/16"-12 ORB
drain, fuel tank, Incl. Ref 10 Hex Soc, 1 5/16"-12 ORB
1шт.
11
S95569
WASHER
- flat, 9/16 x 1-3/8 x 9/64 inch, hardened
3шт.
12
131-70
NUT,1/2"-13, GB
NUT - hex, self-locking, 1/2 inch NC
3шт.
13
413-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5
2шт.
14
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
2шт.
15
S95569
WASHER
- flat, 9/16 x 1-3/8 x 9/64 inch, hardened
2шт.
16
220-503
ROD, CONNECTING
FITTING - barb, straight, push-on type, 5/16 inch hose ID
2шт.
17
214-274
HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm
- adj. #4, 0.25/0.62 Type F Worm
6шт.
18
S121066
FUEL HOSE,0.31" ID x 98.00", SAE 30R2 TYPE 1
0.31" ID x 98.00" SAE 30R2 Type 1, Supply
1шт.
19
D139225
FILTER, FUEL
FILTER - fuel, in-line
1шт.
20
S121065
FUEL HOSE,0.31" ID x 4.00", SAE 30R2 TYPE 1
Supply 0.31" ID x 4.00", SAE 30R2 TYPE 1
1шт.
21
S121064
FUEL HOSE,0.19" ID x 112.00", SAE 30R6
Return 0.19" ID x 112.00", SAE 30R6
1шт.
22
217-126
FITTING,3/16" Hose Barb x 1/4" Male NPTF
- barb, straight, 3/16 inch hose ID x 1/4 PT, brass
1шт.
23
L18337
CABLE TIE,9.95"-12.1" lg
STRAP - tie, 15 inch, nylon
1шт.
24
S619423
STEP
- operator access, lower
1шт.
25
413-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5
- hex, 1/2 NC x 1-1/4 inch
4шт.
26
131-70
NUT,1/2"-13, GB
NUT - light hex, self-locking, 1/2 inch NC
4шт.
Выбрано товаров: 26
