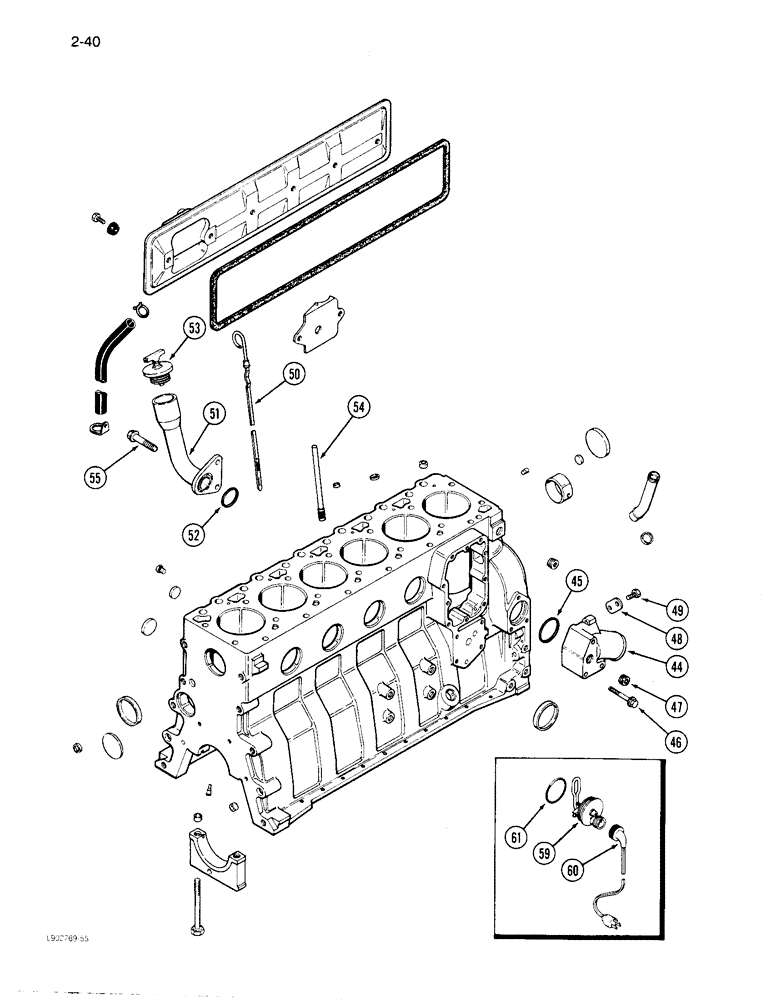

Запчасти Case 1085C (2-40) - CYLINDER BLOCK, 6T-590 ENGINE (02) - ENGINE

44

J903102

CONNECTION

- water inlet

1шт.

45

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID

1шт.

46

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

- hex heavy flange, 10 mm - 1.50 x 75 mm, Grade 10.9

3шт.

47

A77429

PLUG

- hex socket pipe, 1/2-14 PT

1шт.

48

J903089

SUPPORT

BRACE - alternator mounting

1шт.

49

813-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 20 mm

1шт.

50

J907714

DIPSTICK

- engine oil

1шт.

51

J905440

TUBE

- oil fill

1шт.

52

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

RING - sealing

1шт.

53

A77424

FILLER CAP

CAP ASSEMBLY - fill, oil

1шт.

54

J905127

TUBE,9.52 mm OD x 180 mm L

- dipstick

1шт.

55

J905372

FLANGE BOLT,Hex, M12 x 60mm, Cl 10.9

BOLT - flanged hex, 12 mm - 1.75 x 60 mm

2шт.

A77634

KIT

HEATER KIT - engine blockENGINE ASSEMBLY - basic, new, Includes: Ref. 59 - 61

1шт.

59

NSS

NOT SOLD SEPARAT

ELEMENT - heater (Order A77634), block

1шт.

60

J905113

CABLE

- engine block heater

1шт.

61

J910517

O-RING

- heater sealing, block

1шт.
