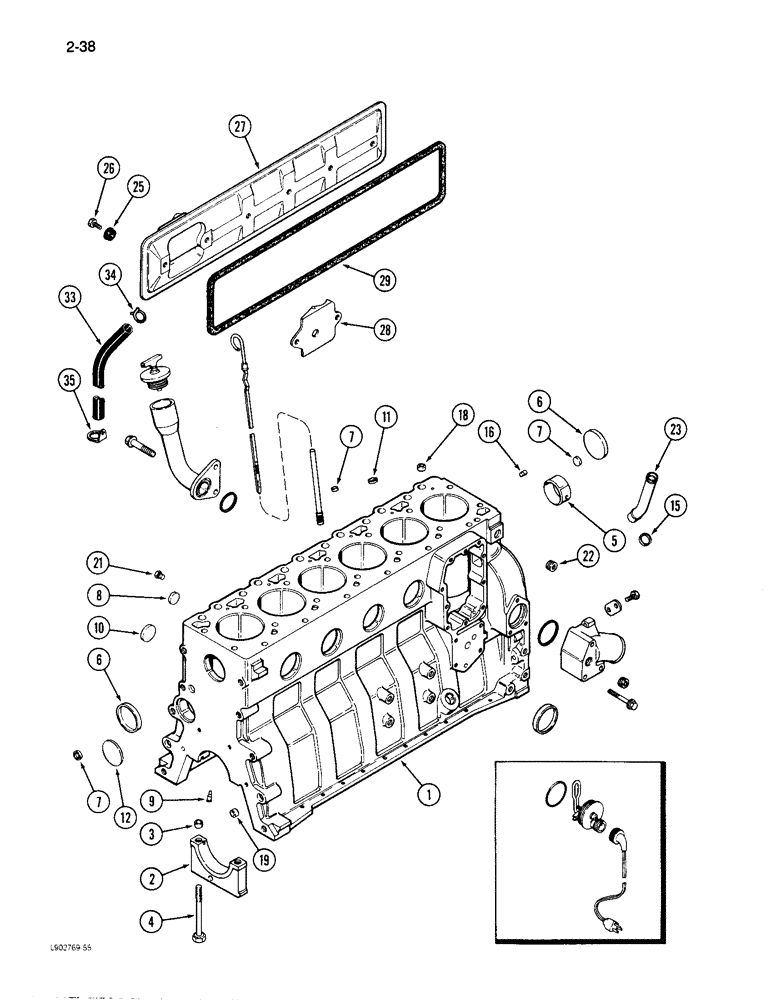

Запчасти Case 1085C (2-38) - CYLINDER BLOCK, 6T-590 ENGINE (02) - ENGINE

A174292

ENGINE ASSEMBLY

SPARE PART ENGINE ASSEMBLY - complete (Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe)

1шт.

1989096C2R

ENGINE, EXCHANGE

Engine (Exchange) Remanufactured

1шт.

1989096C2C

CORE-ENGINE

Return Part Number

1шт.

A174356

BASIC ENGINE

ENGINE ASSEMBLY - basic, new

1шт.

(Includes all parts except starter, alternator, fan, fan belt, fan bracket, air cleaner, muffler, exhaust manifold and pipe, flywheel and housing, oil fill tube, dipstick, fuel injection pump, injectors and lines, front crank pulley, belt tensioner and turbocharger)

1шт.

AR174356

ENGINE, EXCHANGE

Engine (Exchange) Block Assembly, Basic, Remanufactured

1шт.

AC174356

CORE-ENGINE

Return Part Number, Use This Part Number To Return Engine Assembly For Credit

1шт.

J910510

SKELETON ENGINE

BLOCK ASSEMBLY - short, engine, new (Includes stripped block pistons, connecting rods and bearings, crankshaft and bearings) (Also order J905813 kit), Includes: Ref. 2 - 8

1шт.

JR910510

ENGINE, EXCHANGE

Engine (Exchange) Block Assembly, Engine Short, Remanufactured, Includes: Ref. 2 - 8

1шт.

JC910510

CORE-ENGINE

Return Part Number, Engine Short Block (Use This Part Number To Return Block Core For Credit)

1шт.

JR933182

REMAN-SHORT ENGINE

Remanufactured

1шт.

JC933182

CORE-SHORT ENGINE

Return Part Number

1шт.

1

J905810

CRANKCASE

BLOCK ASSEMBLY - stripped engine (Also order J905813 kit, Includes: Ref. 2 - 8

1шт.

2

J900967

BEARING CAP

CAP - main bearing

7шт.

3

J900068

BEARING WASHER

RING - dowel, 18 mm OD

14шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

BOLT - bearing cap, special

14шт.

5

REF

INSTRUCTION

BUSHING - camshaft, front (See Figure: 2-37)

1шт.

6

J900965

PLUG

PLUG - expansion, 58 mm OD

6шт.

7

J900956

PLUG

PLUG - expansion, 18 mm OD

3шт.

8

23624R1

PLUG

PLUG - expansiong, 26 mm

4шт.

J905813

PACKAGE, REPAIR

KIT - block hardware, Includes: Ref. 9 - 22

1шт.

9

J901020

NOZZLE CAP

NOZZLE - piston cooling

6шт.

10

J900958

PLUG

PLUG - expansion, 32 mm OD

1шт.

11

J900955

PLUG

PLUG - expansion, 10 mm OD

2шт.

12

J900687

PLUG

PLUG - expansion, (Welch) 60 mm OD

1шт.

15

A77439

PLUG

PLUG - expansion, 0.886 mm OD

1шт.

16

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, locating, 16 mm

2шт.

18

J902343

DOWEL

RING - dowel, 16 mm OD

2шт.

19

J900068

BEARING WASHER

RING - dowel, 18 mm OD

2шт.

21

J906619

PLUG,1/8" - 27

PLUG - hex socket pipe, 1/8-27 PT

2шт.

22

A77429

PLUG

PLUG - hex socket pip, 1/2-14 PT

1шт.

23

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain

1шт.

25

J900267

SEAL

SEAL ASSEMBLY - cover bolt

4шт.

26

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, 8 mm - 1.25 x 16 mm

4шт.

27

J911822

COVER

COVER - tappet

1шт.

28

J907586

BAFFLE

BAFFLE - tappet cover

1шт.

29

J904776

GASKET

GASKET - tappet cover

1шт.

33

J906593

HOSE

Bbreather

1шт.

34

J904230

CLAMP,25.4mm

CLAMP - spring hose

1шт.

35

J909670

CLIP

CLIP - retaining

1шт.
