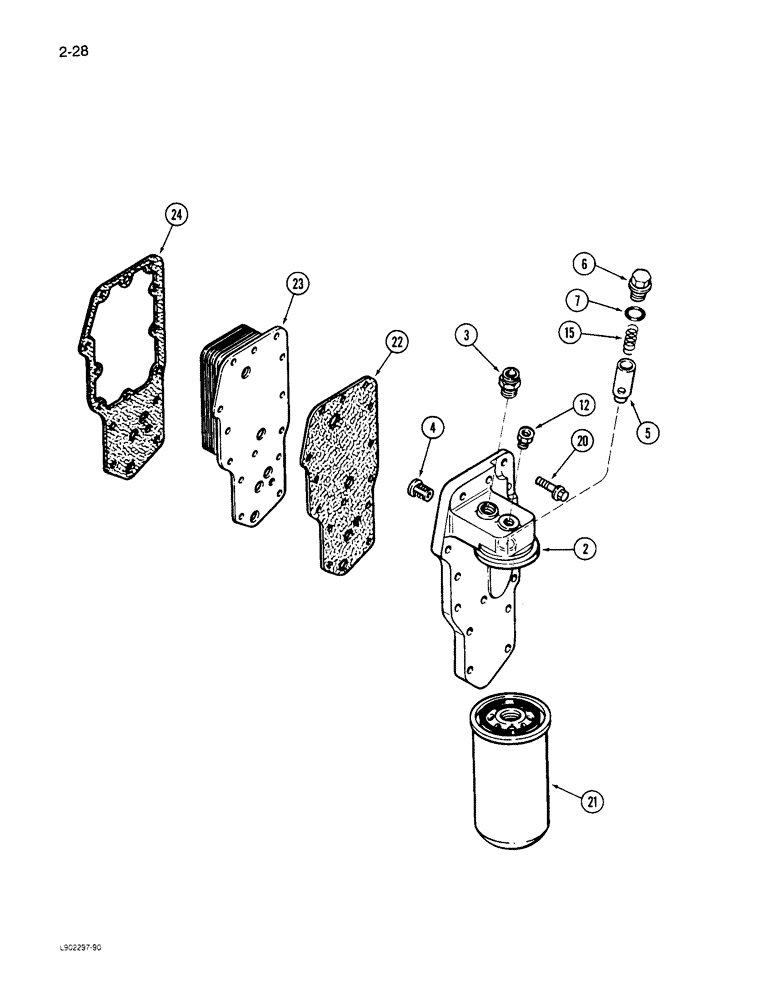

Запчасти Case 1085C (2-28) - OIL FILTER AND COOLER, 6T-590 ENGINE (02) - ENGINE

J915766

KIT

- oil cooler cover, Includes: Ref. 2 - 7

1шт.

2

J909352

FILTER COVER

HEAD ASSEMBLY - filter and cooler

1шт.

3

J909355

ADAPTER

- filter head

1шт.

4

J902338

VALVE, PRESSURE RELI

VALVE - relief, pressure

1шт.

5

J914084

VALVE

PLUNGER - regulator, pressure

1шт.

6

J915787

PLUG

- pipe

1шт.

7

J909397

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- sealing

1шт.

12

J906619

PLUG,1/8" - 27

- hex socket pipe, 1/8-27 PT

1шт.

15

J903261

SPRING

- compression

1шт.

20

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 mm - 1.25 x 35 mm

14шт.

21

J908615

FILTER

- engine oil

1шт.

22

J918257

GASKET

- filter head

1шт.

23

J911940

HEAT-EXCHANGER

CORE - cooler, oil

1шт.

24

J918256

GASKET

- cooler core

1шт.
