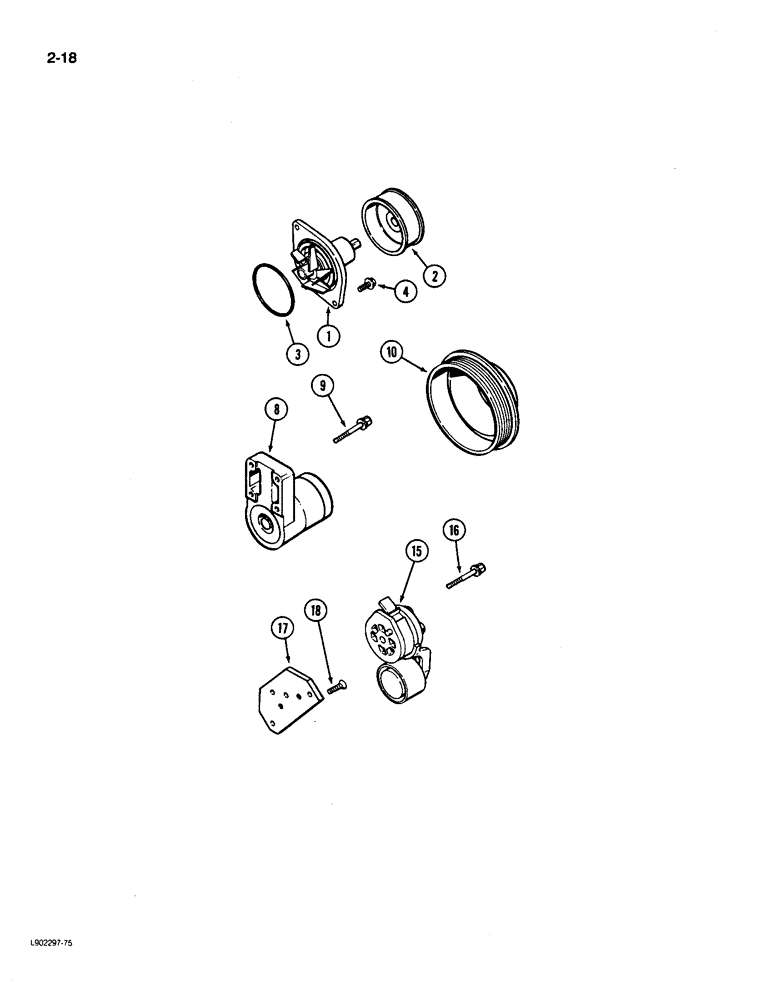

Запчасти Case 1085C (2-18) - WATER PUMP SYSTEM, 6T-590 ENGINE (02) - ENGINE

AR77703

PUMP

- water, remanufactured

1шт.

J286278R

REMAN-WATER PUMP

1085C Cruz-Air

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

AC77703

CORE-WATER PUMP

RETURN NUMBER - use this part number to return pump core for credit

1шт.

A77703

PUMP, WATER

PUMP KIT - water, new, Includes: Ref. 1 - 3

1шт.

A77703GV

WATER PUMP

Value, Water Pump Assy.

1шт.

J286278R

REMAN-WATER PUMP

1085C Cruz-Air, Replaces P/N's A77703 & AR77703

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY - water

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY - pump (Order A77703)

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

8

J913433

BRACKET

ASSEMBLY - fan

1шт.

9

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

- heavy hex flange, 8 mm - 1.25 x 40 mm, 8.8

4шт.

9

J900678

BOLT,Hex Flg, M8 x 40mm, Cl 8.8

- hex flange, 8 x 63 mm

4шт.

10

J914462

PULLEY,163mm OD

- fan, 165 mm diameter

1шт.

15

J914086

BELT TENSIONER

TENSIONER ASSEMBLY - belt

1шт.

16

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 70 mm, Grade 10.9

1шт.

17

J904548

BRACKET

- belt tension

1шт.

18

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

- flat head cap, 8 x 25 mm

2шт.
