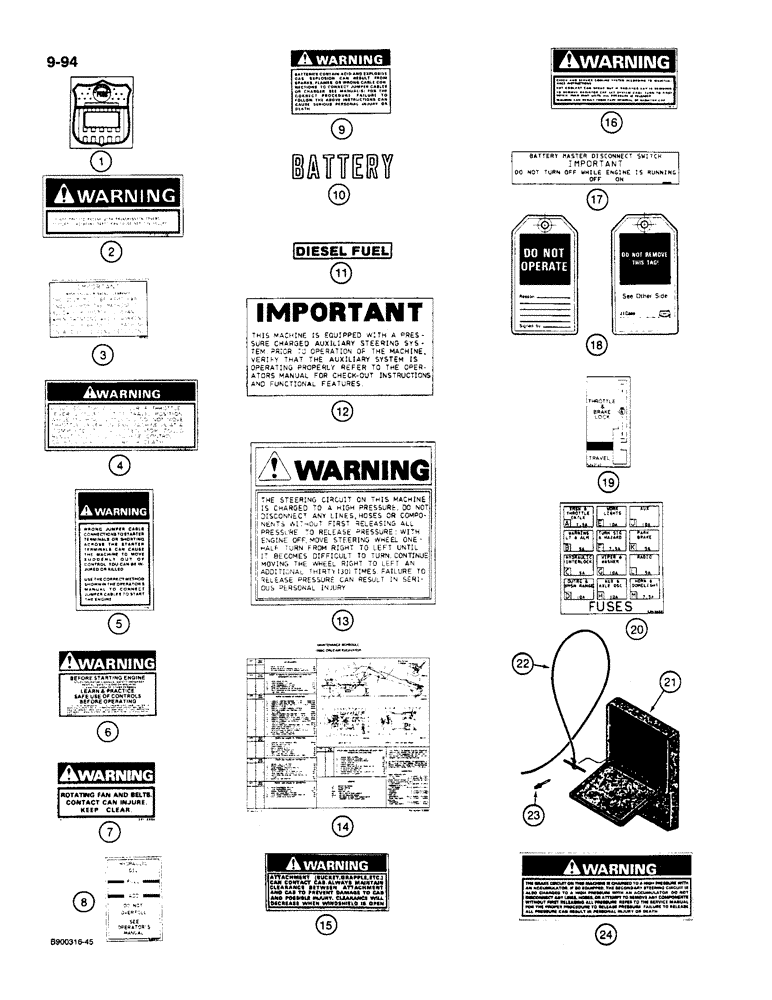

Запчасти Case 1085C (9-094) - DECALS, ENGLISH (09) - CHASSIS/ATTACHMENTS

1

S242429

DECAL

- PCSA

1шт.

2

321-6276

DECAL

- Warning, do not operate engine with transmission covers removed

3шт.

3

S243677

DECAL

- Important, boom cylinder swing clearance

1шт.

4

S517837

DECAL

- Warning, a sudden stop will occur

1шт.

5

321-6718

DECAL

- Warning, wrong jumper cable connections

1шт.

6

321-3705

DECAL

- Warning, before starting engine

1шт.

7

321-3596

DECAL

- Warning, rotating fan and belts

2шт.

8

NLS

NO LONGER SERVICED

- hydraulic oil

1шт.

9

321-6714

DECAL

- Warning, batteries contain acid and explosive gas

1шт.

10

S29611

DECAL

- battery

1шт.

11

321-2601

DECAL

- diesel fuel

1шт.

12

S240964

DECAL

- important, this machine is equipped with a pressure charged auxiliary steering system

1шт.

13

321-6636

DECAL

- Warning, the steering circuit on this machine is charged to a high pressure

2шт.

14

8-80902

DECAL

- Master Maintenance Schedule

1шт.

See your local authorized Case dealer for ordering information or this decal may be ordered directly from CdS at 2525 West Hampton Ave. Milwaukee, WI 53209-0359.

1шт.

15

321-6694

DECAL

- Warning, attachment (bucket, grapple, etc.)

1шт.

16

321-6672

DECAL

- Warning, check and service cooling system

2шт.

17

R55652

DECAL

- battery master disconnect switch

1шт.

18

321-4614

TAG

- do not operate

1шт.

19

S243693

DECAL

- throttle and brake lock

1шт.

20

S243682

DECAL

- fuses

1шт.

21

S511692

BOX

- operators manual

1шт.

22

A141917

ROPE

CORD -, Serial Range: manual-box

1шт.

23

151-522

RIVET,Pop, 3/16" x .575"

- pop, 3/16 x 17/32 inch, manual box to cab

3шт.

24

321-7006

DECAL

- Warning, the brake circuit on this machine is charged

1шт.
