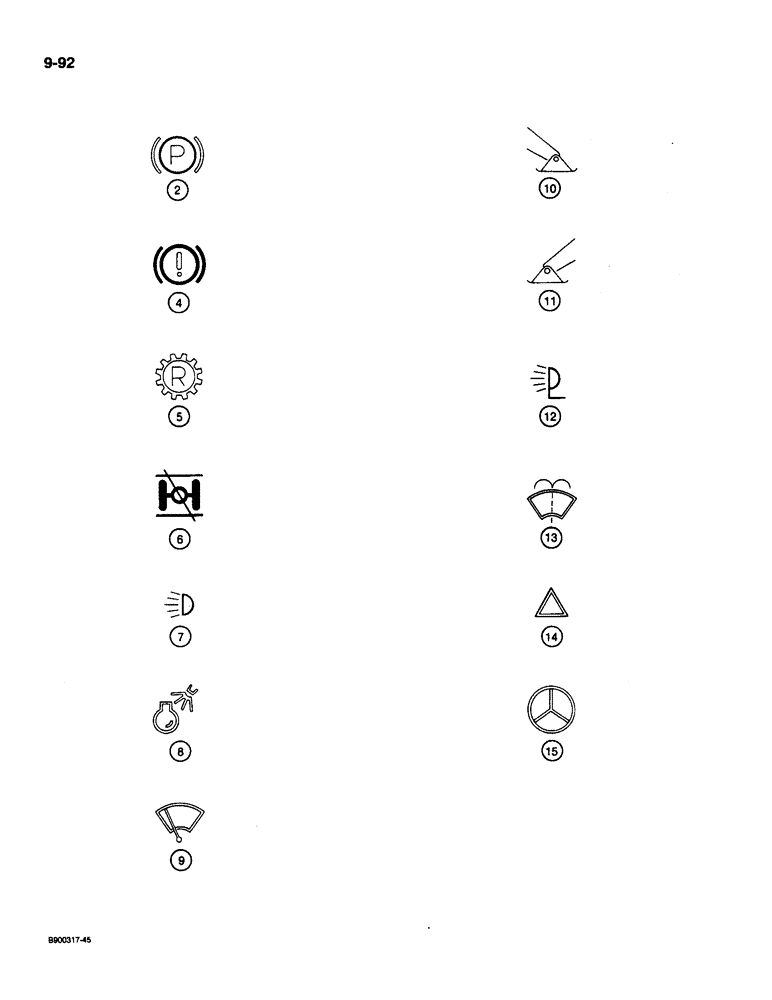

Запчасти Case 1085C (9-092) - DECALS, ROCKER SWITCHES AND SYMBOLS (09) - CHASSIS/ATTACHMENTS

1

83883C1

SYMBOLS

DECAL - plain, black, used if steering-warning lamp is not installed, not shown

1шт.

2

A187804

DECAL

- parking brake, red

2шт.

3

91957C1

DECAL

- plain, red, master warning lamp, not shown

1шт.

4

A187872

DECAL

- low brake pressure, red

1шт.

5

A187802

DECAL

- high/low speed range, green

1шт.

6

1983366C1

SYMBOL

DECAL - cross-shaft axle lock, red

1шт.

7

A187806

DECAL

- lamp, green

1шт.

8

A187810

DECAL

- ether inject, yellow

1шт.

9

A187808

DECAL

- wiper, two steps, green

1шт.

10

A187800

DECAL

- right-hand outrigger, green

1-2шт.

11

A187801

DECAL

- left-hand outrigger, green

1-2шт.

12

A187807

DECAL

- working lamp, front, green, if used

1шт.

13

A187809

DECAL

- windshield washer, green, if used

1шт.

14

245916C1

DECAL

DECAL - hazard warning lamp, red

1шт.

15

A187871

DECAL

- low steering pressure, red

1шт.
