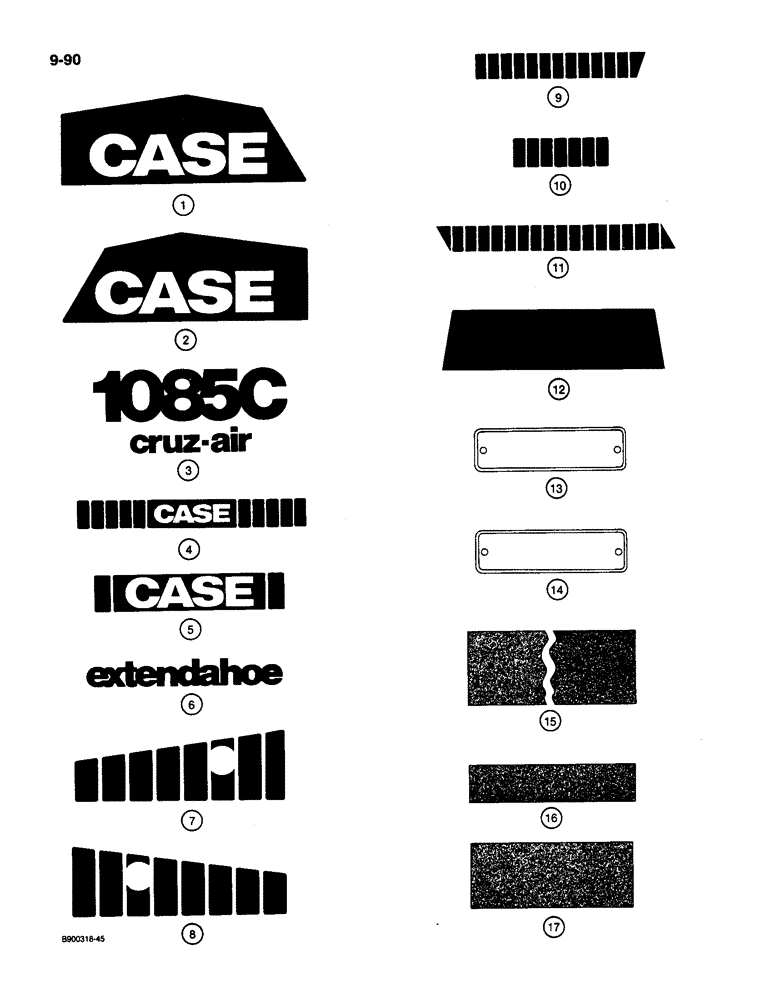

Запчасти Case 1085C (9-090) - DECALS, EXTERIOR, REFLECTORS, AND NON-SKID PADS (09) - CHASSIS/ATTACHMENTS

1

S619623

DECAL

- Case, left-hand side, Excavator boom

1шт.

2

S619621

DECAL

- Case, right-hand side, Excavator boom

1шт.

3

S619628

DECAL

- 1085C Cruz-Air, both sides of engine shroud

2шт.

4

S619626

DECAL

- Case, with treads, rear of shroud

1шт.

5

S617990

DECAL

- Case, with treads, boom sides, models with material handling boom

2шт.

6

S619638

DECAL

- Extendahoe, both sides of extendahoe

2шт.

7

S619624

DECAL

- treads, left-hand side, Excavator boom

1шт.

8

S619622

DECAL

- treads, right-hand side, Excavator boom

1шт.

9

S619630

DECAL

- treads, left-hand side of shroud

1шт.

10

S619625

DECAL

- treads, front of shroud

1шт.

11

S619629

DECAL

- treads, right-hand side of shroud

1шт.

12

S619627

DECAL

- grille patch

1шт.

13

S121072

REFLECTOR

- red, rear and both sides of rear shroud

4шт.

14

S121073

REFLECTOR

- yellow, front and both sides of engine shroud

4шт.

15

S243101

WEAR PAD

PAD - non-skid, 4 x 11 inch

29шт.

16

D55216

PAD,2" x 9"

PAD - non-skid, 2 x 9 inch

4шт.

17

L71193

ANTI-SKID STRIP

- non-skid, 3-1/2 x 8-51/64 inch

2шт.
