(9-088) - CAB OVERHEAD GUARD, STANDARD CAB WITH MATERIAL HANDLING BOOM

Запчасти Case 1085C (9-088) - CAB OVERHEAD GUARD, STANDARD CAB WITH MATERIAL HANDLING BOOM (09) - CHASSIS/ATTACHMENTS

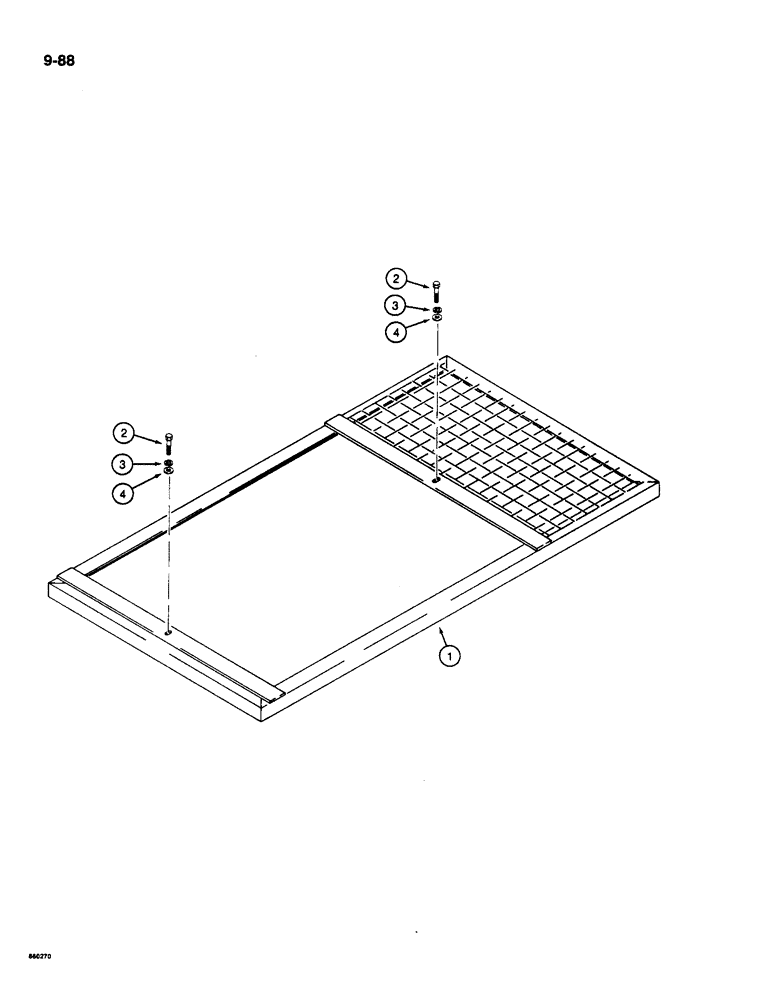

Схема запчастей Case 1085C - (9-088) - CAB OVERHEAD GUARD, STANDARD CAB WITH MATERIAL HANDLING BOOM (09) - CHASSIS/ATTACHMENTS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

S517065

GUARD ASSY.

GUARD - cab overhead

1шт.

2

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

4

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 3/32 inch

2шт.
