Запчасти Case 1085C (9-086) - MATERIAL HANDLING CAB, GLASS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

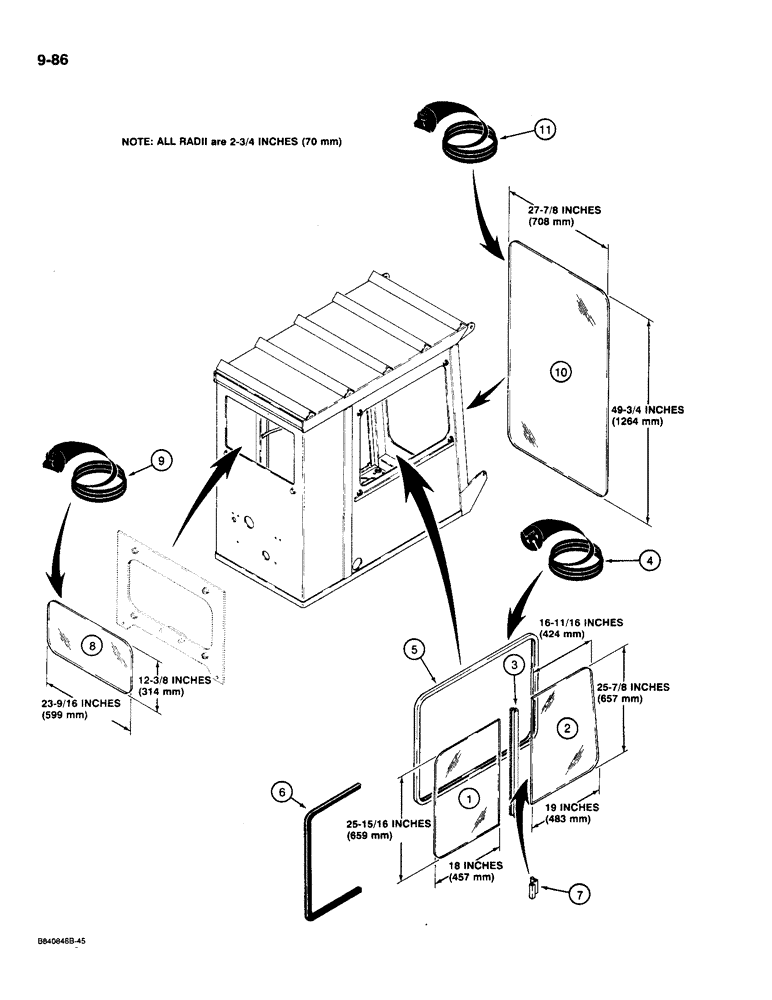

GLASS cab, door and right side, stationary, see Figure: 9-086 for dimensions

2шт.

All glass to be obtained from local source and must be 7/32 inch (6 mm) thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.

2

REF

INSTRUCTION

GLASS cab, door and right side, moveable, see Figure: 9-086 for dimensions

2шт.

All glass to be obtained from local source and must be 7/32 inch (6 mm) thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.

3

REF

INSTRUCTION

SEAL - between stationary and moveable glass, 26 inch (660 mm) long, cut from S118385

2шт.

4

REF

INSTRUCTION

MOULDING - glass, door and right side, 120 inch (3048 mm) long, cut from S118634

2шт.

5

REF

INSTRUCTION

SEAL - glass channel, 120 inch (3048 mm) long, cut from S118387

2шт.

6

REF

INSTRUCTION

SEAL - rubber, glass spacer, 60 inch (1524 mm) long, cut from S118386

2шт.

7

S118207

HANDLE

- pull, side window

2шт.

8

REF

INSTRUCTION

GLASS cab, rear window, see Figure: 9-086 for dimensions

1шт.

All glass to be obtained from local source and must be 7/32 inch (6 mm) thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.

9

REF

INSTRUCTION

MOULDING - rear window glass, 68-1/2 inch (1740 mm) long, cut from S118384

1шт.

10

REF

INSTRUCTION

GLASS windshield, see Figure: 9-086 for dimensions

1шт.

All glass to be obtained from local source and must be 7/32 inch (6 mm) thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.

11

REF

INSTRUCTION

MOULDING - windshield glass, 154 inch (3912 mm) long, cut from S118384

1шт.

S118384

SEAL

MOULDING - glass, bulk roll, 600 inch (15240 mm) long

1шт.

S118385

SEAL

- glass, bulk roll, 72 inch (1830 mm) long

1шт.

S118386

SEAL

SEAL - glass spacer, 600 inch (15240 mm) long

1шт.

S118387

SEAL

- glass, bulk roll, 132 inch (3352 mm) long

1шт.

S118634

SEAL

MOULDING - glass, 600 inch (15240 mm) roll

1шт.
