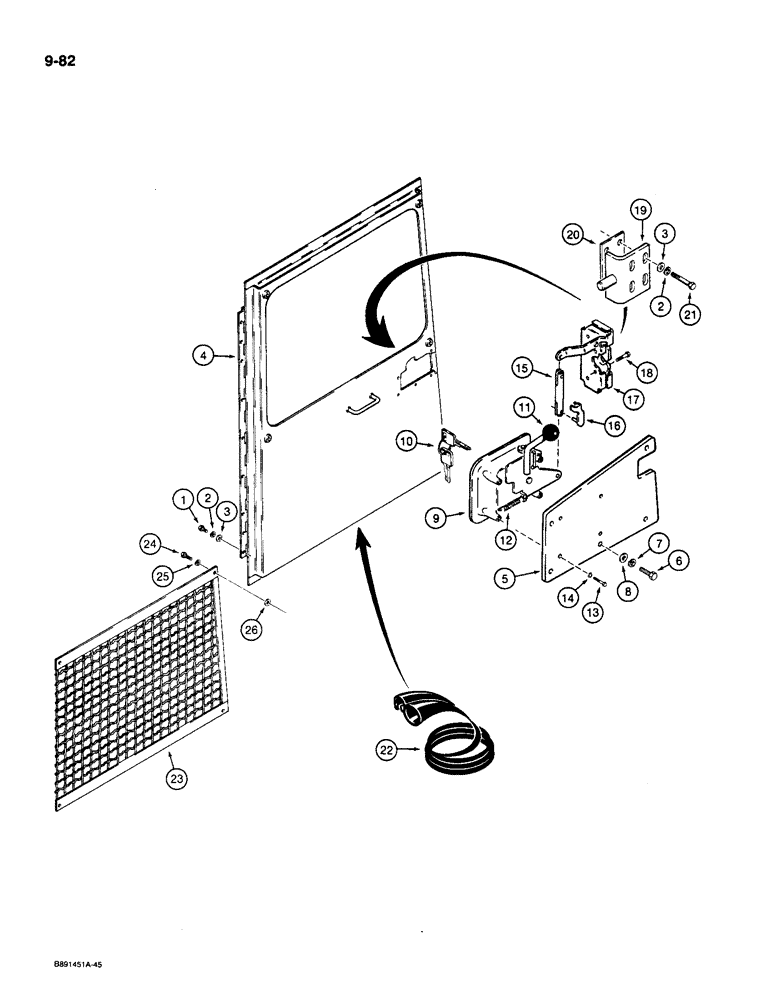

Запчасти Case 1085C (9-082) - MATERIAL HANDLING CAB, DOOR, LATCH AND WINDOW GUARD (09) - CHASSIS/ATTACHMENTS

S956959

CAB

ASSEMBLY - material handling, Includes: Ref. 1 - 17 figure 9-080 and 1 - 21 this figure

1шт.

1

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

9шт.

2

492-11038

LOCK WASHER,3/8"

13шт.

3

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat, hardened, 13/32 x 1-1/16 x 1/8 inch

13шт.

4

S619079

DOOR

- cab

1шт.

5

S517147

PLATE

- mounting, Serial Range: latch-door

1шт.

6

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

5шт.

7

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

8

195-518

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 1/16 inch

5шт.

9

S619075

LATCH

HANDLE AND LOCK ASSEMBLY - door closure, Includes: Ref. 10 - 12

1шт.

10

D88772

KEY

- door lock, set of two

1шт.

11

70213

KNOB

- handle

1шт.

12

N14815

SPRING

- handle return

1шт.

13

463-1102

SCREW - machine, hex, No. 10 NC x 3/4 inch

4шт.

14

493-21020

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

4шт.

15

S517137

LINK

- connecting, Serial Range: handle-latch

1шт.

16

S242927

PIN

RETAINER - connecting link

2шт.

17

S517136

LATCH ASSY.

LATCH - door closure

1шт.

18

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

19

S242940

ANGLE

STRIKER - door latch

1шт.

20

S242947

SHIM,.059" Thk

Latch striker .059" Thk

1шт.

21

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

22

S120341

SEAL

- cab door to cab, 153 inch (3886 mm) long

1шт.

23

S515176

GUARD

- side window, in door

1шт.

24

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

26

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 3/32 inch, used as spacer

1шт.
