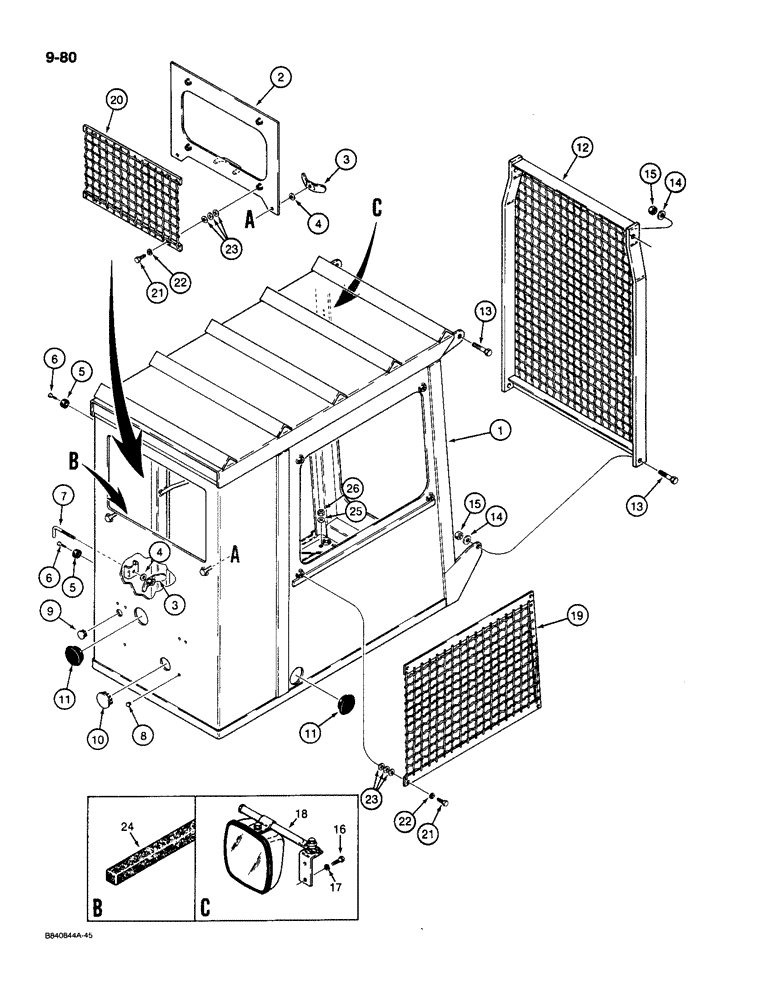

Запчасти Case 1085C (9-080) - MATERIAL HANDLING CAB, CAB AND WINDOW GUARDS (09) - CHASSIS/ATTACHMENTS

S956959

CAB

ASSEMBLY - material handling, Includes: Ref. 1 - 17 this figure and 1 - 21 on Figure 9-082

1шт.

1

NSS

NOT SOLD SEPARAT

CAB - material handling

1шт.

2

S508190

FRAME

- cab rear window

1шт.

3

S221281

HANDLE

- retaining, rear window and door

3шт.

4

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 3/32 inch

3шт.

5

S63621

BUMPER

- rubber, Serial Range: door-cab

2шт.

6

173-116

SCREW,Sl Rnd Hd, #12 - 24 x 1/2"

- machine, round head slotted, No. 12 NC x 1/2 inch

2шт.

7

S94142

LATCH

- door retaining, open

1шт.

8

205-15

HOLE PLUG BUTTON,3/8"

PLUG - button, 3/8 inch hole, cab rear

6шт.

9

205-61

HOLE PLUG BUTTON,1 1/2"

PLUG - button, 1-1/2 inch hole, cab rear

1шт.

10

205-72

HOLE PLUG BUTTON,3"

PLUG - button, 3 inch hole, cab rear

1шт.

11

S117638

PLUG

- cab rear and right side, 3-3/4 inch hole

2шт.

12

S618301

GUARD ASSY.

GUARD - windshield

1шт.

13

113-925

BOLT,Hex, 1" - 8 x 3", Gr 5

- hex, 1 NC x 3 inch

4шт.

14

195-553

WASHER,1", SAE

- flat, 1 inch

4шт.

15

131-20

LOCK NUT,1"-8, GB

NUT - hex, self-locking, 1 inch NC

4шт.

16

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

Mirror to cab Hex, 1/4"-20 x 5/8", G5, Full Thd

2шт.

17

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Mirror to cab 1/4"

2шт.

18

S515469

MIRROR

- cab, rear view

1шт.

19

S515179

GUARD

- side window

1шт.

20

S221288

GUARD ASSY.

GUARD - rear window

1шт.

21

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

8шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

23

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 3/32 inch, used as spacer

1шт.

24

REF

INSTRUCTION

SEAL - rear window frame to cab, 98 inch (2489 mm) long, cut from S120316

1шт.

25

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened, cab mounting, see reference number 19, Figure: 9-046 for mounting plate

10шт.

26

131-208

SPECIAL NUT,1/2"-13

NUT - hex, self-locking, 1/2 inch NC, cab mounting, see reference number 19, Figure: 9-046 for mounting plate

10шт.

S120316

SEAL

- weather, bulk roll, 300 inch (7620 mm) long

1шт.
