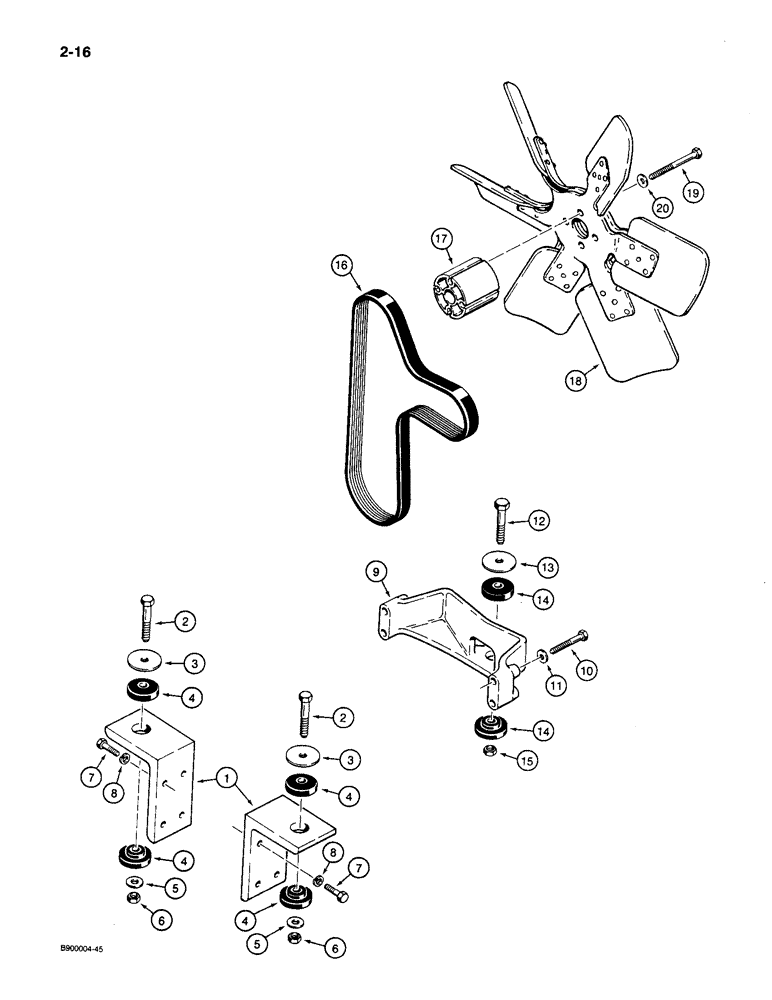

Запчасти Case 1085C (2-16) - ENGINE MOUNTING AND ADAPTING PARTS (02) - ENGINE

1

S243196

BRACKET

- rear engine mounting

2шт.

2

26-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

- hex, 5/8 NC x 3-1/2 inch, grade 8

2шт.

3

R49597

WASHER,17.5mm ID x 70mm OD x 4.5mm Thk

- flat, 5/8 inch, special

2шт.

4

R49921

RUBBER MOUNTING

MOUNT - rubber, engine

4шт.

5

NLS

NO LONGER SERVICED

- flat, 21/32 x 1-5/16 x 9/64 inch, hardened

2шт.

6

131-460

LOCK NUT,5/8"-11

NUT - hex, self-locking, 5/8 inch NC

2шт.

7

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

- hex, 12 mm - 1.75 x 40 mm

8шт.

8

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

8шт.

9

A170985

BRACKET

SUPPORT - front engine mounting

1шт.

10

A171690

BOLT

BOLT - hex, 12 - 1.75 x 85 mm, class 10.9

4шт.

11

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

4шт.

12

26-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

- hex, 5/8 NC x 3-1/2 inch, grade 8

1шт.

13

R49597

WASHER,17.5mm ID x 70mm OD x 4.5mm Thk

- flat, 5/8 inch, special

1шт.

14

R49921

RUBBER MOUNTING

MOUNTING - rubber, engine

2шт.

15

131-460

LOCK NUT,5/8"-11

NUT - hex, self-locking, 5/8 inch NC

1шт.

16

J911557

V-BELT,27.92mm W x 1422.4mm L, 8 Ribs

Fan 3.56 mm W x 1422.40 mm L, 8 Ribs

1шт.

17

A184548

SPACER,Fan, 89/90mm Thk

- fan

1шт.

18

A189123

FAN

- suction, engine cooling

1шт.

19

814-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8

- hex, 10 - 1.5 x 120 mm

4шт.

20

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.
