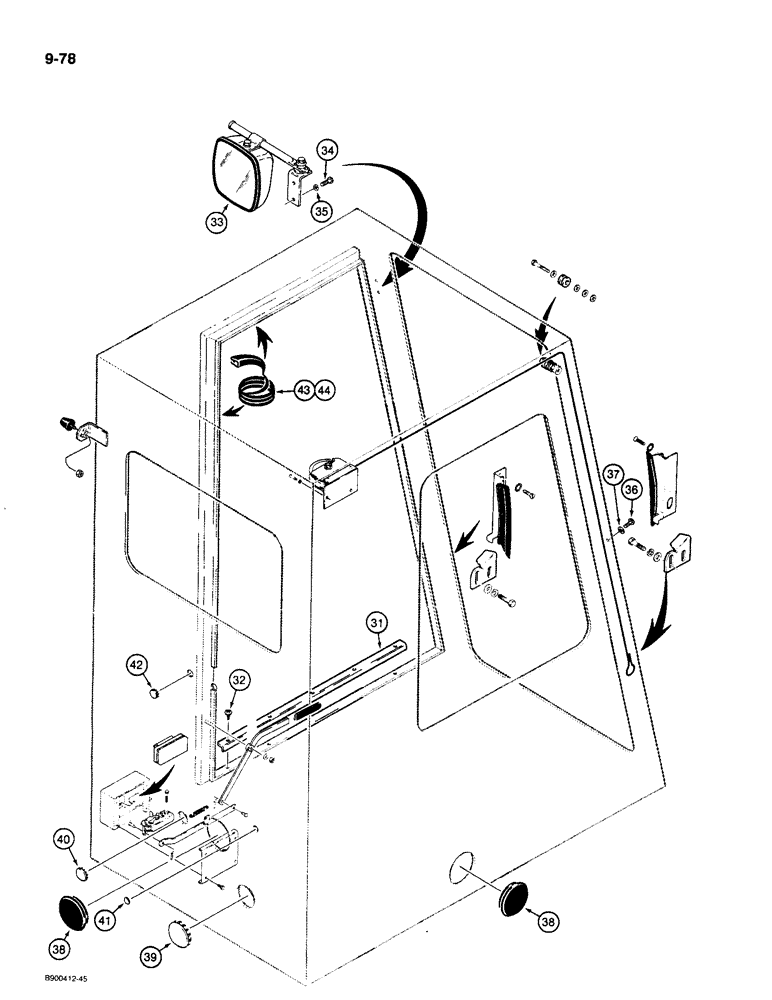

Запчасти Case 1085C (9-078) - STANDARD CAB, WINDSHIELD CABLES, DOOR RETAINER, AND MISCELLANEOUS (09) - CHASSIS/ATTACHMENTS

S619460

CAB

ASSEMBLY - standard, Includes: Ref. 1 - 12 figure 9-070, 1 - 20 figure 9-072, 1 - 36 figure 9-074, 1 - 30 figure 9-076, and 31 - 44 this figure

1шт.

31

S239626

ANGLE

COVER - door sill

1шт.

32

261-5448

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW - self tapping, pan Phillips, No. 8 NC x 1/2 inch

5шт.

33

S515469

MIRROR

- rear view

1шт.

34

182-527

SCREW,Sl Pan Hd, 1/4" - 20 x 5/8"

- machine, pan head slotted, 1/4 NC x 5/8 inch

2шт.

35

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

36

182-300

SCREW,Slotted Pan Hd, 3/8"-24 X 3/4"

- machine, pan head slotted, 3/8 NF x 3/4 inch

1шт.

37

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

38

S117638

PLUG

- cab, side and rear, 4-1/2 inch hole

2шт.

39

205-72

HOLE PLUG BUTTON,3"

PLUG - cab, rear, 3 inch hole

1шт.

40

205-61

HOLE PLUG BUTTON,1 1/2"

PLUG - cab, rear, 1-1/2 inch hole

1шт.

41

205-15

HOLE PLUG BUTTON,3/8"

PLUG - cab, rear, 3/8 inch hole

2шт.

42

205-36

HOLE PLUG BUTTON,7/8"

PLUG - cab, rear, upper, 7/8 inch hole

2шт.

43

REF

INSTRUCTION

TRIM - edge, cab frame at door opening, 59-1/2 inch (1511 mm) long, cut from S118479, see below

1шт.

44

REF

INSTRUCTION

TRIM - edge, cab frame at door opening, 30-1/2 inch (775 mm) long, cut from S118479, see below

1шт.

S118479

SEAL

TRIM - edge, cab frame, 90 inch (2286 mm) long, equals total length needed at door opening (see items 43 and 44)

1шт.
