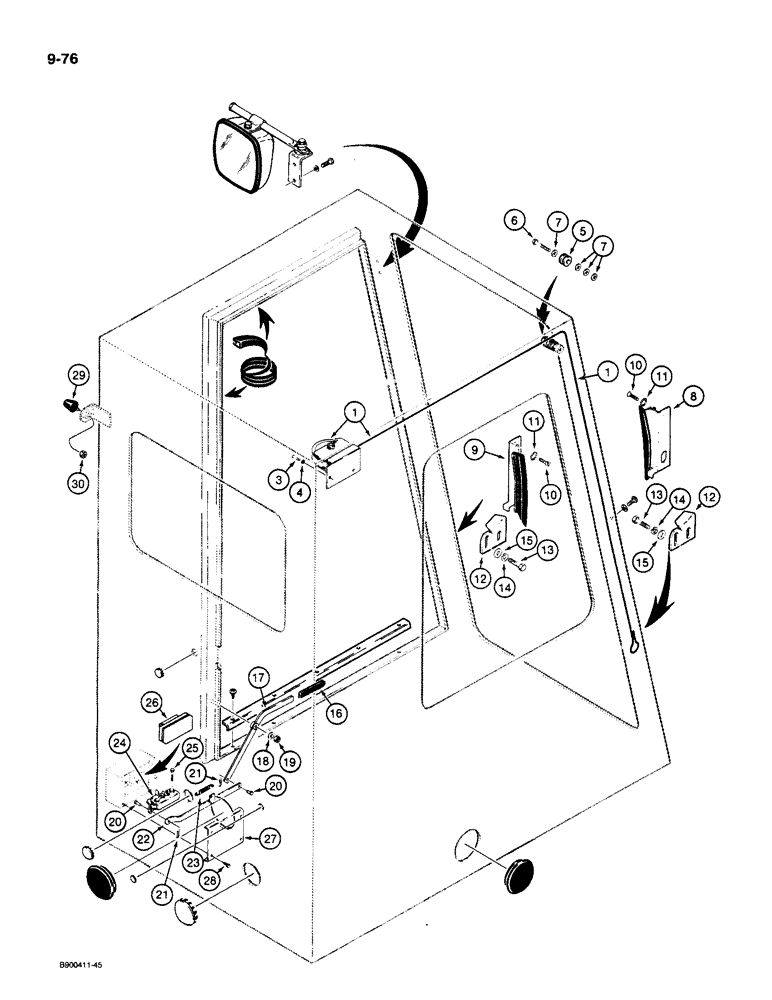

Запчасти Case 1085C (9-076) - STANDARD CAB, WINDSHIELD CABLES, DOOR RETAINER, AND MISCELLANEOUS (09) - CHASSIS/ATTACHMENTS

S619460

CAB

ASSEMBLY - standard, Includes: Ref. 1 - 12 figure 9-070, 1 - 20 figure 9-072, 1 - 36 figure 9-074, 1 - 30 this figure, and 31 - 44 figure 9-078

1шт.

1

N13087

REEL

- windshield cable, right-hand, includes cable which is not sold separately

1шт.

2

N13088

REEL

- windshield cable, left-hand, includes cable which is not sold separately, not shown

1шт.

3

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

4

492-11038

LOCK WASHER,3/8"

4шт.

5

S301157

PULLEY - cable

2шт.

6

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

2шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16"), Pulley alignment 3/8", SAE

1шт.

8

S301147

ASSEMBLY

TRACK - right-hand, includes seal

1шт.

9

S301154

ASSEMBLY

TRACK - left-hand, includes seal

1шт.

10

443-1258

SCREW,Cross Flat Hd, 1/4"-20 x 1/2"

- machine, Phillips head, 1/4 NC x 1/2 inch

4шт.

11

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, Ext Csk Tooth, 1/4"

4шт.

12

S119610

WEDGE

- windshield adjusting

2шт.

13

326-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

4шт.

14

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

15

195-518

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 1/16 inch

4шт.

16

N13085

LEVER

GRIP - door release lever

1шт.

17

S301156

LEVER

- door release

1шт.

18

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

19

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

20

K912968

PIN

- clevis, connecting bar

2шт.

21

136-158

COTTER PIN,Int, 9/64" x .054"

PIN - hair, 1-1/8 inch

2шт.

22

N13083

BAR ASSY.

BAR - connecting, lever to door release latch

1шт.

23

S301151

SPRING

- door release latch

1шт.

24

S301155

LATCH

- door release

1шт.

25

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

3шт.

26

N13082

STOP

BRACKET - door retaining

1шт.

27

N13086

COVER ASSY

COVER - door retainer

1шт.

28

163-32

SCREW,Hex, #10 - 24 x 1/2"

- machine, hex, No. 10 NC x 1/2 inch

4шт.

29

N13081

BUMPER

- for open door

1шт.

30

129-122

NUT,5/16"-24, G5

1шт.
