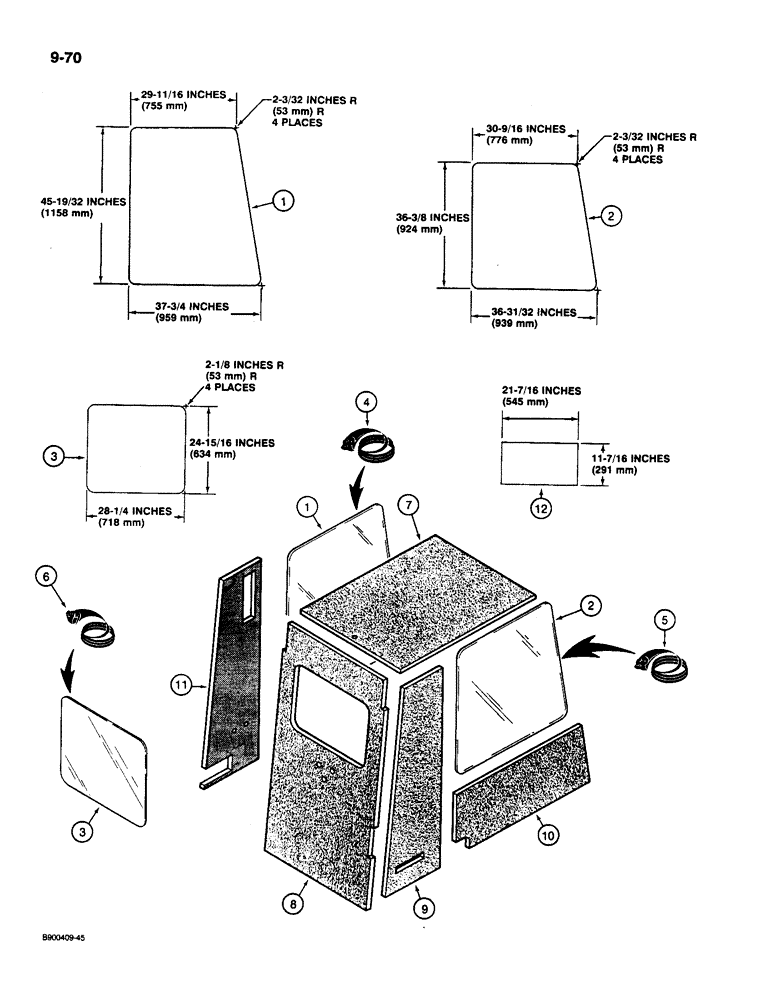

Запчасти Case 1085C (9-070) - STANDARD CAB, WINDOWS, SEALS, AND INSULATION (09) - CHASSIS/ATTACHMENTS

S619460

CAB

ASSEMBLY - standard, Includes: Ref. 1 - 12 this figure, 1 - 20 figure 9-072, 1 - 36 figure 9-074, 1 - 30 figure 9-076, and 31 - 44 figure 9-078

1шт.

1

N13095

GLASS

LEXAN - window, in door, part of S301144 door assembly, see Figure: 9-070

1шт.

Replacement of reference numbers 1, 2, 3 and 12 may be obtained from local source. Material to be 1/4 inch (6 mm) thick Lexan bronze tint with crowned edges.

1шт.

2

S517949

LEXAN - window, right-hand

1шт.

Replacement of reference numbers 1, 2, 3 and 12 may be obtained from local source. Material to be 1/4 inch (6 mm) thick Lexan bronze tint with crowned edges.

1шт.

3

S301146

LEXAN - window, rear

1шт.

Replacement of reference numbers 1, 2, 3 and 12 may be obtained from local source. Material to be 1/4 inch (6 mm) thick Lexan bronze tint with crowned edges.

1шт.

4

REF

INSTRUCTION

SEAL - used with cab door window, 160 inch (4064 mm) long, cut from S118468, see below, prt of S301144 door assembly, Figure: 9-072

1шт.

5

REF

INSTRUCTION

SEAL - used with right-hand cab window, 136-1/4 inch (3460 mm) long, cut from S118468, see below

1шт.

6

REF

INSTRUCTION

SEAL - used with rear window, 102-13/16 inch (2611 mm) long, cut from S118468, see below

1шт.

7

S241506

INSULATOR

INSULATION - cab, top, requires cutting out for top window

1шт.

8

S301152

INSULATOR

INSULATION - cab, rear

1шт.

9

N13077

INSULATOR

INSULATION - cab, right-hand, rear

1шт.

10

S301153

INSULATOR

INSULATION - cab, right-hand, front

1шт.

11

N13080

INSULATOR

INSULATION - cab, left-hand, rear

1шт.

12

S301158

LEXAN - window, cab top

1шт.

Replacement of reference numbers 1, 2, 3 and 12 may be obtained from local source. Material to be 1/4 inch (6 mm) thick Lexan bronze tint with crowned edges.

1шт.

S118468

SEAL

- window glass, bulk, 600 inch (15240 mm) long

1шт.
