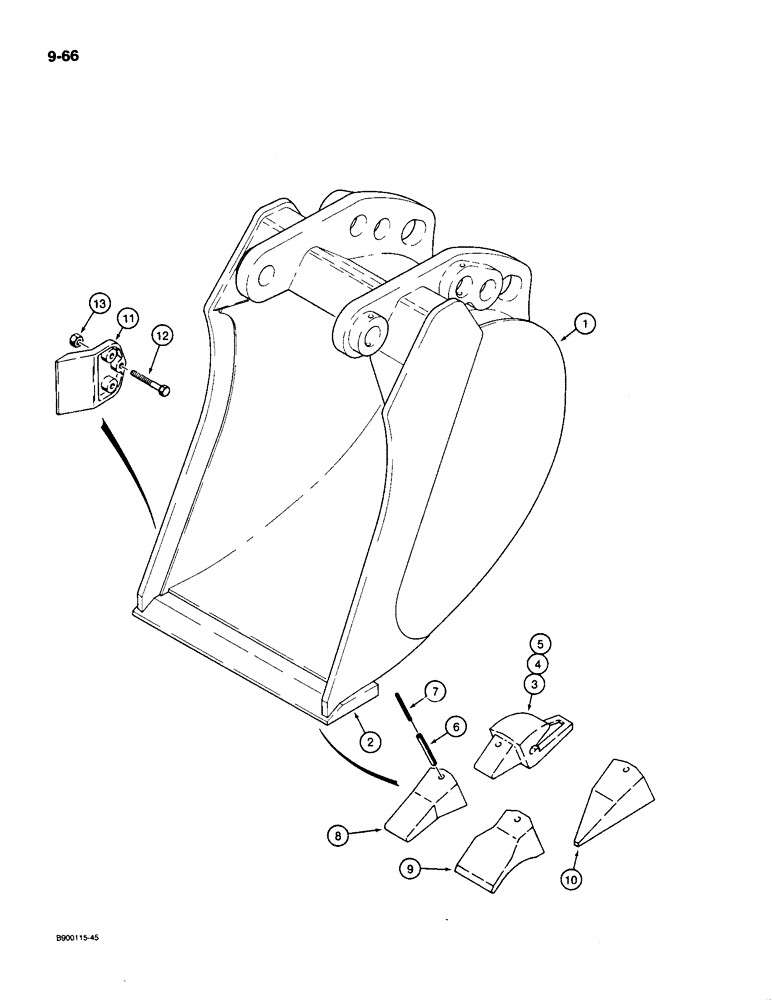

Запчасти Case 1085C (9-066) - BACKHOE BUCKETS (09) - CHASSIS/ATTACHMENTS

1

S957099

BUCKET ASSEMBLY - 24 inch (610 mm), machinery item, order from Machinery Price List, Includes: Ref. 2 - 8

1шт.

1

S957046

BUCKET ASSEMBLY - 30 inch (762 mm), machinery item, order from Machinery Price List, Includes: Ref. 2 - 8

1шт.

1

S957093

BUCKET ASSEMBLY - 36 inch (914 mm), machinery item, order from Machinery Price List, Includes: Ref. 2 - 8

1шт.

1

S957054

BUCKET ASSEMBLY - 42 inch (1066 mm), machinery item, order from Machinery Price List, Includes: Ref. 2 - 8

1шт.

2

S243800

EDGE

- cutting, for 24 inch (610 mm) bucket

1шт.

2

S243243

BAR

EDGE - cutting, for 30 inch (762 mm) bucket

1шт.

2

S243601

BAR

EDGE - cutting, for 36 inch (914 mm) bucket

1шт.

2

S243295

BAR

EDGE - cutting, for 42 inch (1066 mm) bucket

1шт.

3

S615011

SHANK

- tooth, left-hand

1шт.

4

S615009

SHANK

- tooth, center

1шт.

5

S615010

SHANK

- tooth, right-hand

1шт.

S239750

ROLL PIN

PIN ASSEMBLY - roll, tooth point, Includes: Ref. 6 - 8

1шт.

6

138-310

LOCK PIN,1/2" x 3", Slotted

PIN, 1/2" x 3", Slotted

1шт.

7

REF

INSTRUCTION

PLUG - rubber, 3 inch (76 mm) long, cut from S119223, see below

1шт.

8

S615008

POINT

- tooth, standard

1шт.

9

S615024

POINT

- tooth, spade, optional

1шт.

10

S615025

POINT

- tooth, rock, optional

1шт.

11

S33993

CUTTER

- side, if used

2шт.

12

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

6шт.

13

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

6шт.

S119223

RUBBER

PLUG - rubber, 48 inch (1219 mm) long strip

1шт.
