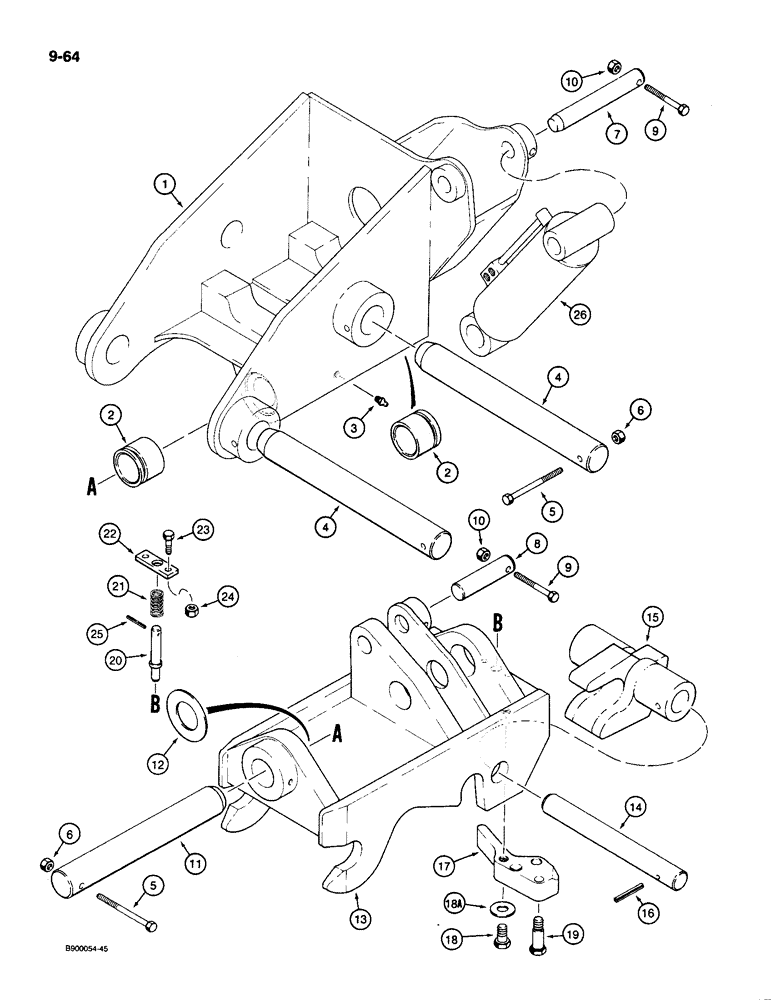

Запчасти Case 1085C (9-064) - WRIST-O-TWIST (09) - CHASSIS/ATTACHMENTS

1

S619493

GRIP

FRAME ASSEMBLY - upper, Includes: Ref. 2 and 3

1шт.

2

S229548

BUSHING

- latch hinge mounting

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

1шт.

4

S243195

KIT

- upper frame to arm and attachment link

2шт.

5

326-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 8

3шт.

6

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

3шт.

7

S243531

PIN

- closed end of cylinder to upper frame

1шт.

8

S243532

PIN

- rod end of cylinder to upper frame

1шт.

9

326-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 8

2шт.

10

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

11

S243193

PIN

- latch hinge to upper frame

1шт.

12

S88992

WASHER

- 1/16 inch (2 mm) thick, shim, hinge mounting pin

1шт.

13

S619504

GRIP

FRAME - hinge, quick latch

1шт.

14

S243533

PIN

- locking, Serial Range: latch-hinge

1шт.

15

S517695

LOCK

LATCH - locking, hinge

1шт.

16

138-182

LOCK PIN,3/8" x 3", Slotted

PIN, 3/8" x 3", Slotted

1шт.

17

S517823

LEVER

- latch locking

1шт.

18

113-2704

LOCK BOLT,Locking, 3/4"-10 x 1 1/2", G5, Full Thd

BOLT, Locking, 3/4-10 x 1 1/2", G5, Full Thd

1шт.

18a

195-45

WASHER,3/4"

Used as spacer 3/4"

1шт.

19

121-435

STEP BOLT,Hex Skt, 5/8" - 11 - 3/4" x 1 3/4"

BOLT - shoulder, hex socket, 3/4 NC x 1-3/4 inch

1шт.

20

S243769

PIN

- latch lever

1шт.

21

S121041

SPRING

- latch lever

1шт.

22

S121092

BAR

PLATE - spring retainer

1шт.

23

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

24

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

25

138-159

LOCK PIN,5/16" x 1 3/4", Slotted

Pin, 5/16" x 1 3/4", Slotted

1шт.

26

S619488

CYLINDER

ASSEMBLY - Wrist-O-Twist, parts list Figure: 8-092

1шт.
