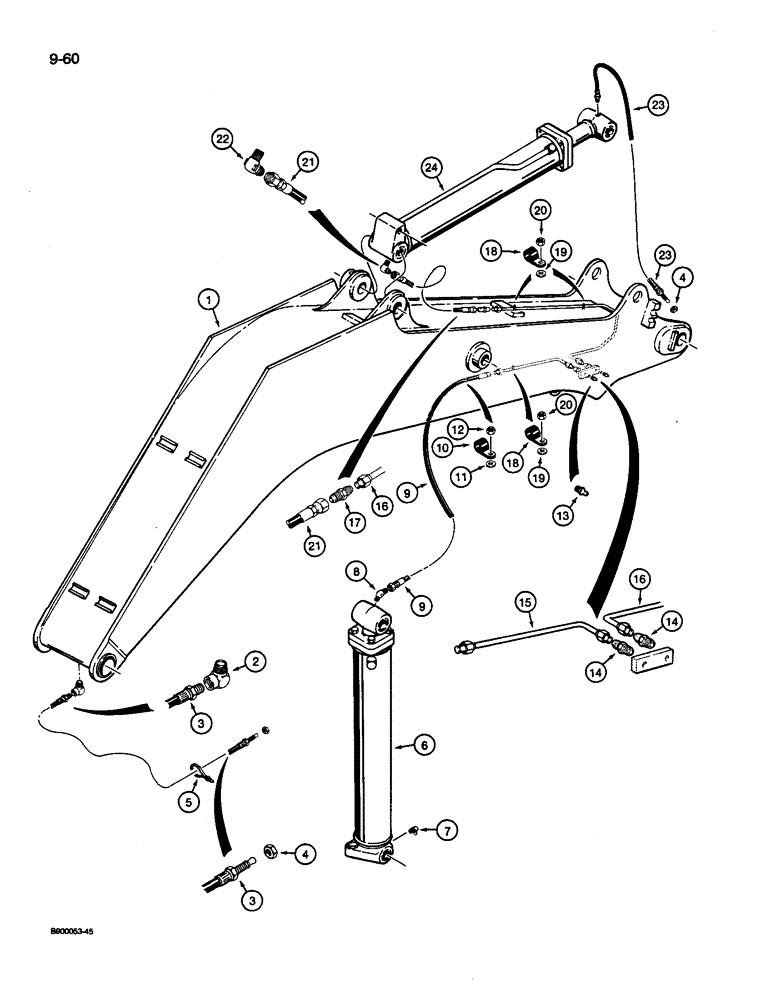

Запчасти Case 1085C (9-060) - BOOM LUBRICATION LINES, MODELS WITH EXCAVATING BOOM AND ARM (09) - CHASSIS/ATTACHMENTS

1

S957010

BOOM

ASSEMBLY - excavating arm, see Figures: 9-054 or 9-056 for boom and bushings

1шт.

2

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

Street 90º, 1/8"-27 Female x 1/8"-27 Male

1шт.

3

F53473

LOCK NUT,1/8-27 NPSM

HOSE - 60 inch long, lubrication, boom pin at turntable

1шт.

4

F53473

LOCK NUT,1/8-27 NPSM

- special, lubrication hose

2шт.

5

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - tie, hose

1шт.

6

S957011

CYLINDER

ASSEMBLY - boom, parts list Figure: 8-88

1шт.

7

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

8

218-531

ELBOW,45 Degree, 7/16-20" 37 Degree x 1/8"-27, NPTF

- 45 degree, 7/16-20 flare x 1/8 inch PT

1шт.

9

S77467

HOSE

- lubrication, pin at rod end of boom cylinder

1шт.

10

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- 5/8 inch ID, lubrication hose

1шт.

11

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

12

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

1шт.

13

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8 PT x 55/64 inch long

2шт.

14

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, 7/16-20 flare x 1/8 inch PT

2шт.

15

S243569

TUBE

- lubrication, rod end of boom cylinder

1шт.

16

S517716

TUBE

- lubrication, base end of arm cylinder

1шт.

17

218-732

UNION,7/16"-20, 37 Degree x 7/16"-20, 37 Degree

CONNECTOR - straight, 7/16-20 inch flare

1шт.

18

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- 1/4 inch ID, lubrication tubes to boom

3шт.

19

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

3шт.

20

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

3шт.

21

S77467

HOSE

- lubrication, pin at base end of arm cylinder

1шт.

22

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, 7/16-20 flare x 1/8 inch PT

1шт.

23

L111706

HOSE

- 44 inch long, lubrication, rod end of arm cylinder

1шт.

24

S957012

CYLINDER

ASSEMBLY - arm, parts list Figure: 8-084

1шт.
