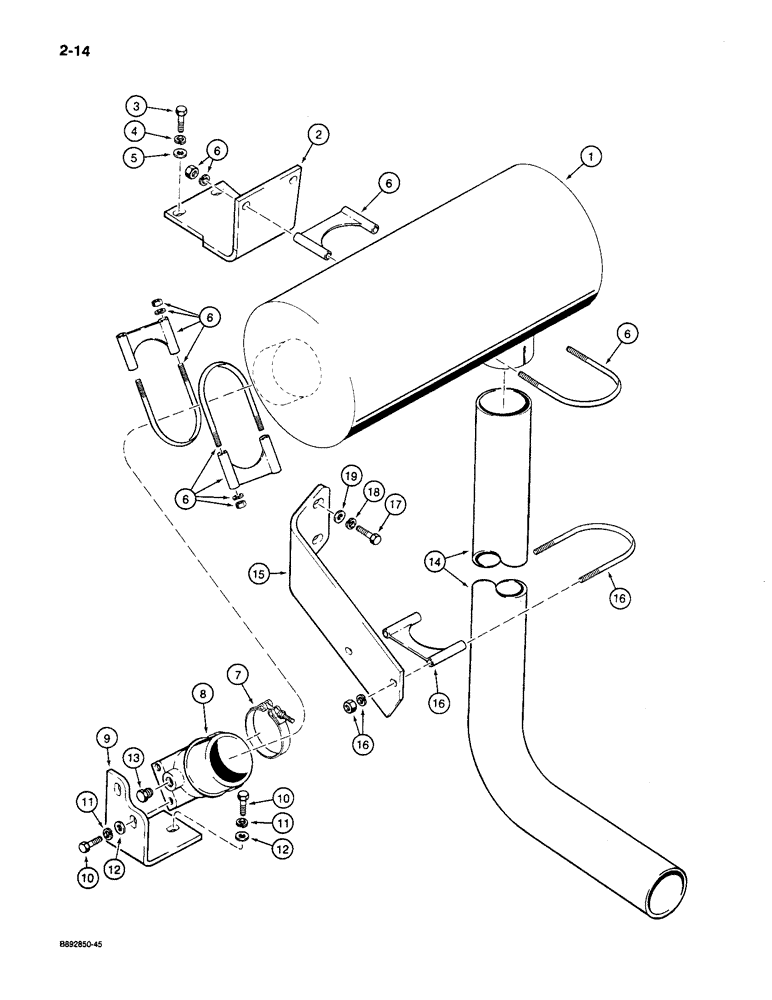

Запчасти Case 1085C (2-14) - MUFFLER AND EXHAUST SYSTEM (02) - ENGINE

1

A189233

MUFFLER

- engine exhaust

1шт.

2

S517861

BRACKET

- mounting, muffler

1шт.

3

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

4

892-11010

LOCK WASHER,M10

2шт.

5

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch, hardened

2шт.

6

L14222

CLAMP,79.25mm ID

- muffler, includes hardware

3шт.

7

A170467

CLAMP,72mm ID

- elbow

1шт.

8

A173623

ELBOW

-, Serial Range: muffler-turbocharger

1шт.

9

S517804

BRACKET

- elbow

1шт.

10

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

11

892-11010

LOCK WASHER,M10

4шт.

12

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch, hardened

4шт.

13

221-662

PLUG,Hex Hd, 1/4"-18

- hex, 1/4 inch PT

1шт.

14

S517860

TUBE

PIPE - engine exhaust

1шт.

15

S517806

BRACKET

- exhaust pipe

1шт.

16

L14222

CLAMP,79.25mm ID

- exhaust pipe, includes hardware

1шт.

17

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

- hex, 12 - 1.75 x 30 mm

2шт.

18

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

19

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.
