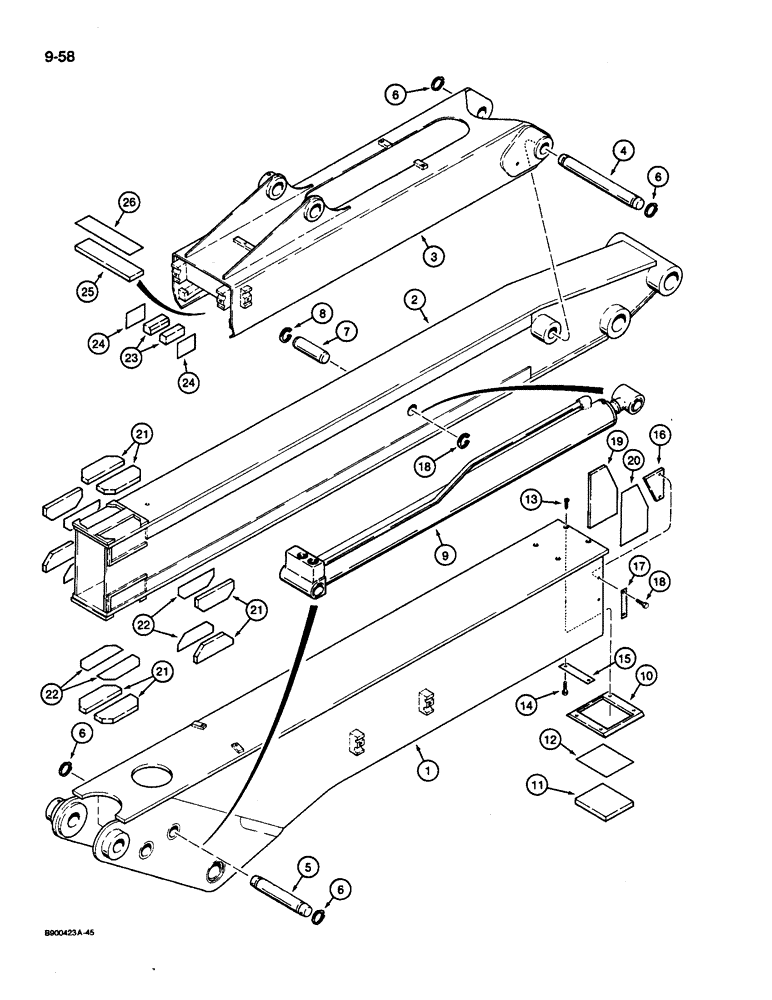

Запчасти Case 1085C (9-058) - EXTENDAHOE (09) - CHASSIS/ATTACHMENTS

1

S957048

ARM

ASSEMBLY - extendahoe, outer, see Figure: 9-056 for bushings and set screws

1шт.

2

S957047

DIPPER

ARM ASSEMBLY - extendahoe, inner, see Figure: 9-056 for bushings and set screws

1шт.

3

S957091

BRACKET

- mounting, tool cylinder to extendahoe inner arm

1шт.

4

S243545

PIN

- mounting bracket to inner arm

1шт.

5

S243311

PIN

- outer arm to base end of extendahoe cylinder

1шт.

6

D26919

SNAP RING,#200, Ext

Ring, Snap, , base end cylinder pin and tool cylinder mounting bracket pin #200, Ext

4шт.

7

S243312

PIN

- inner arm to rod end of extendahoe cylinder

1шт.

8

D28436

SNAP RING,2", Int, #200

Ring, Snap, , rod end cylinder pin 2", Int, #200

2шт.

9

1978074C2

CYLINDER

ASSEMBLY - extendahoe, parts list Figure: 8-094

1шт.

10

S243782

PLATE

RETAINER - wear pad, outer arm

2шт.

11

S243781

SLIDER

PAD - wear, outer arm, top and bottom

2шт.

12

S243783

SHIM,1.5mm Thk

Wear pad, outer arm, top and bottom 1.5mm Thk

1шт.

13

61-43820

HEX SOC SCREW,FLAT, 3/8" x 1-1/4"

SCREW - hex socket head, 3/8 NC x 1-1/4 inch

4шт.

14

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

4шт.

15

S121084

RETAINER

PLATE - lock, bottom bolts

2шт.

16

S243788

PLATE

BAR - stop, inner arm

2шт.

17

S121083

RETAINER

PLATE - lock, side bolts

2шт.

18

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

19

S243277

SLIDER

PAD - wear, outer arm sides

2шт.

20

S243307

SHIM,1.5mm Thk

Wear pad, outer arm sides 1.5mm Thk

1шт.

21

S243275

SLIDER

PAD - wear, inner arm

8шт.

22

S243308

SHIM,1.5mm Thk

Wear pad, inner arm 1.5mm Thk

1шт.

Wear pad shims are used only with side and bottom pads. See illustration for proper location.

1шт.

23

S243278

BEARING

PAD - wear, cylinder mounting bracket sides

2шт.

24

S121106

SHIM,1.5mm Thk

Wear pad, Cylinder mounting bracket sides 1.5mm Thk

1шт.

25

S243279

BEARING

PAD - wear, cylinder mounting bracket top

1шт.

26

S243309

SHIM,1.6mm Thk

Wear pad, cylinder mounting bracket top 1.6mm Thk

1шт.
