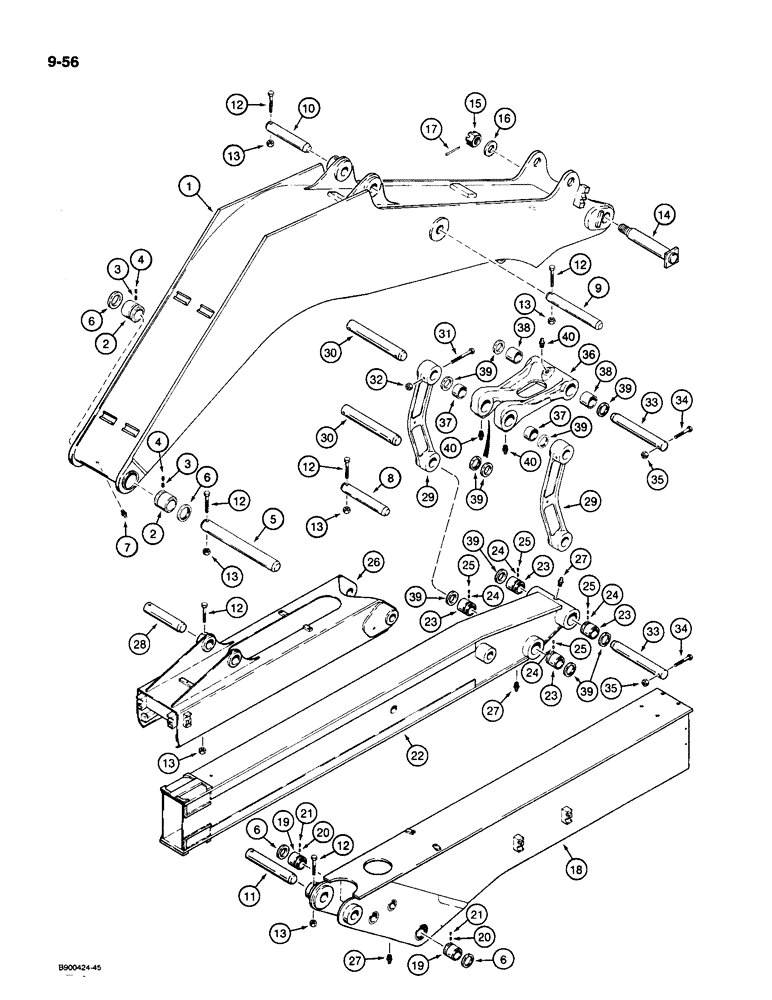

Запчасти Case 1085C (9-056) - EXCAVATING BOOM AND ARM, WITH EXTENDAHOE (09) - CHASSIS/ATTACHMENTS

1

S957010

BOOM

ASSEMBLY - extendahoe, Includes: Ref. 2 - 4

1шт.

2

S243244

BUSHING

-, Serial Range: boom-turntable

2шт.

3

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cone point

2шт.

4

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup point

2шт.

5

S243190

PIN

-, Serial Range: boom-turntable

1шт.

6

S241665

SEAL

- boom to turntable pin and arm to boom pin

4шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

1шт.

8

S243648

PIN

- boom cylinder base, Serial Range: end-turntable

1шт.

9

S243193

PIN

- boom cylinder rod, Serial Range: end-boom

1шт.

10

S243245

PIN

- arm cylinder base, Serial Range: end-boom

1шт.

11

S243188

PIN

- arm cylinder rod, Serial Range: end-arm

1шт.

12

326-880

BOLT,Hex, 1/2" - 13 x 5", Gr 8

6шт.

13

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

6шт.

14

S243239

PIN

-, Serial Range: arm-boom

1шт.

15

25-3032

SLOTTED NUT,2"-4.5, G5, Hvy

NUT - hex, slotted, heavy, 2 inch NC

1шт.

16

S110511

WASHER

- flat, special

1шт.

17

132-208

COTTER PIN,3/8" x 4"

Pin, Split (Cotter), 3/8" x 4"

1шт.

18

S957048

ARM

ASSEMBLY extendahoe, outer, Includes: Ref. 19 - 21

1шт.

See Fig. 9-058 for shims, wear pads and pins used in assembly of the extendahoe.

1шт.

19

S243244

BUSHING

-, Serial Range: arm-boom

2шт.

20

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cone point

2шт.

21

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup point

2шт.

22

S957047

DIPPER

ASSEMBLY extendahoe, inner, Includes: Ref. 23 - 25

1шт.

See Fig. 9-058 for shims, wear pads and pins used in assembly of the extendahoe.

1шт.

23

S229548

BUSHING

- link to arm and, Serial Range: arm-tool

4шт.

24

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cone point

4шт.

25

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup point

4шт.

26

S957091

BRACKET

mounting, tool cylinder to extendahoe inner arm

1шт.

See Fig. 9-058 for shims, wear pads and pins used in assembly of the extendahoe.

1шт.

27

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

3шт.

28

S243530

PIN

- tool cylinder base, Serial Range: end-bracket

1шт.

29

S619313

LINK

- tool, at arm

2шт.

30

S243187

PIN

- link to inner arm and link to tool attachment link

2шт.

31

326-896

BOLT,Hex, 1/2" - 13 x 6", Gr 8

4шт.

32

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

4шт.

33

S243195

KIT

- tool to inner arm and attachment, Serial Range: link-tool

2шт.

34

326-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 8

2шт.

35

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

36

S619310

LINK

ASSEMBLY - tool attachment, Includes: Ref. 37 and 38

1шт.

37

S243185

BUSHING

- pin, attachment link to arm link

2шт.

38

S229548

BUSHING

- pin, attachment, Serial Range: link-tool

2шт.

39

S243186

SEAL

- grease, bushing, at attachment link and arm

10шт.

40

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

3шт.
