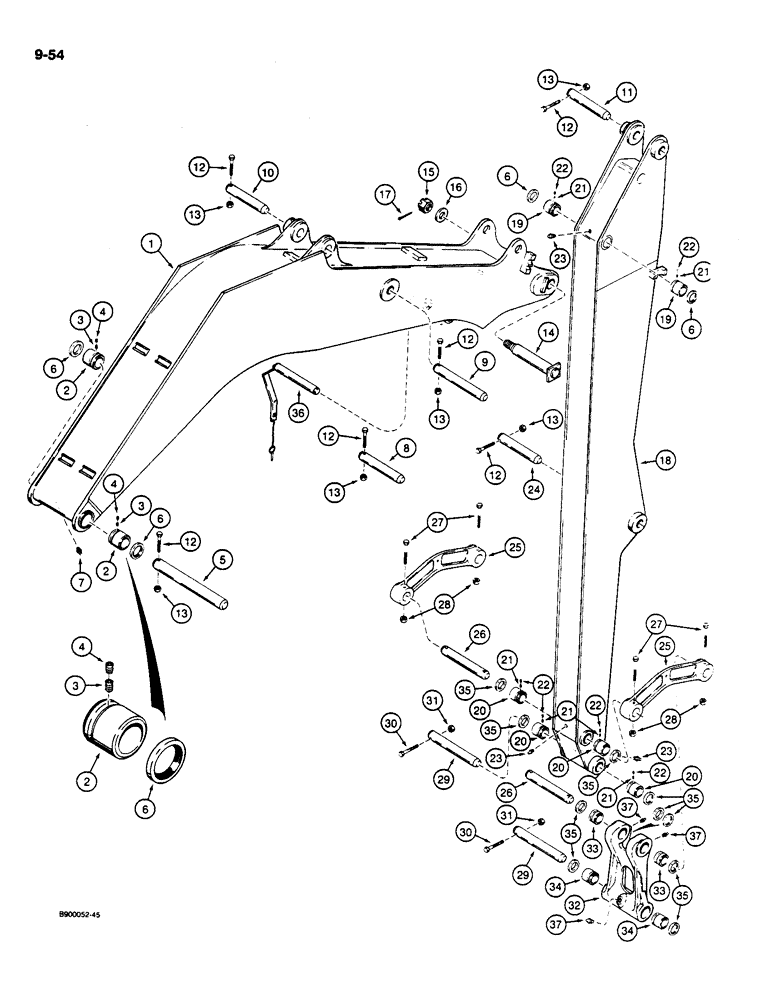

Запчасти Case 1085C (9-054) - EXCAVATING BOOM AND ARM, WITH RIGID ARM (09) - CHASSIS/ATTACHMENTS

1

S957010

BOOM

ASSEMBLY - excavating arm, Includes: Ref. 2 - 4

1шт.

2

S243244

BUSHING

-, Serial Range: boom-turntable

2шт.

3

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, core point

2шт.

4

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup point

2шт.

5

S243190

PIN

-, Serial Range: boom-turntable

1шт.

6

S241665

SEAL

- boom to turntable pin and arm to boom pin

4шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

41шт.

8

S243648

PIN

- boom cylinder base, Serial Range: end-turntable

1шт.

9

S243193

PIN

- boom cylinder rod, Serial Range: end-boom

1шт.

10

S243245

PIN

- arm cylinder base, Serial Range: end-boom

1шт.

11

S243188

PIN

- arm cylinder rod, Serial Range: end-arm

1шт.

12

326-880

BOLT,Hex, 1/2" - 13 x 5", Gr 8

6шт.

13

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

6шт.

14

S243239

PIN

-, Serial Range: arm-boom

1шт.

15

25-3032

SLOTTED NUT,2"-4.5, G5, Hvy

NUT - hex, slotted, heavy, 2 inch NC

1шт.

16

S110511

WASHER

- flat, special

1шт.

17

132-208

COTTER PIN,3/8" x 4"

Pin, Split (Cotter), 3/8" x 4"

1шт.

18

S957006

ARM

ASSEMBLY - excavating, Includes: Ref. 19 - 22

1шт.

19

S243244

BUSHING

-, Serial Range: arm-boom

2шт.

20

S229548

BUSHING

- link to arm and, Serial Range: arm-tool

4шт.

21

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cone point

6шт.

22

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup point

6шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

3шт.

24

S243188

PIN

- tool cylinder base, Serial Range: end-arm

1шт.

25

S619313

LINK

- tool, at arm

2шт.

26

S243187

PIN

- link to arm and link to tool attachment link

2шт.

27

326-896

BOLT,Hex, 1/2" - 13 x 6", Gr 8

4шт.

28

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

4шт.

29

S243195

KIT

- tool to arm and attachment, Serial Range: link-tool

2шт.

30

326-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 8

2шт.

31

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

32

S619310

LINK

ASSEMBLY - tool attachment, Includes: Ref. 33 and 34

1шт.

33

S243185

BUSHING

- pin, attachment link to arm link

2шт.

34

S229548

BUSHING

- pin, attachment, Serial Range: link-tool

2шт.

35

S243186

SEAL

- grease, bushing, at attachment link and arm

10шт.

36

S517689

PIN

- transport lock, Serial Range: boom-arm

1шт.

37

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

3шт.
