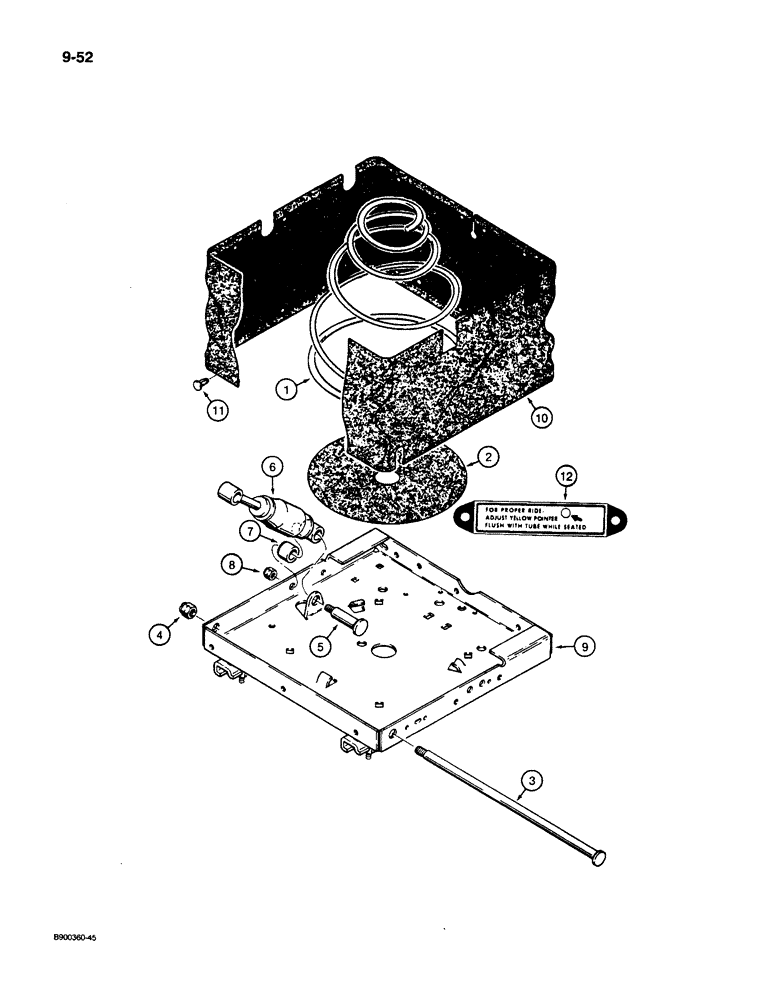

Запчасти Case 1085C (9-052) - SUSPENSION SEAT (09) - CHASSIS/ATTACHMENTS

S517337

SEAT ASSY.

SEAT ASSEMBLY - suspension, Includes: Ref. 1 - 27 figure 9-048, 1 - 29 figure 9-050, and 1 - 12 this figure

1шт.

Part of seat suspension support kit P/N S301392

1шт.

1

A45497

SPRING

- conical

1шт.

Part of seat suspension support kit P/N S301392

1шт.

2

A45530

PAD

- spring

1шт.

Part of seat suspension support kit P/N S301392

1шт.

3

A47762

SHAFT

- bearing

1шт.

Part of seat suspension support kit P/N S301392

1шт.

4

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

1шт.

Part of seat suspension support kit P/N S301392

1шт.

5

A45056

STEP BOLT

BOLT - shock

1шт.

Part of seat suspension support kit P/N S301392

1шт.

6

D82835

SHOCK ABSORBER

ABSORBER - shock, seat

1шт.

Part of seat suspension support kit P/N S301392

1шт.

7

A45501

BUSHING,0.504" ID x 0.87" OD x 1.417"

- shock absorber

1шт.

Part of seat suspension support kit P/N S301392

1шт.

8

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

1шт.

Part of seat suspension support kit P/N S301392

1шт.

9

S301397

ADJUSTER

SLIDE ASSEMBLY - seat, components are not serviced separately

1шт.

Part of seat suspension support kit P/N S301392

1шт.

10

S301394

BOOT

COVER - vinyl

1шт.

Part of seat suspension support kit P/N S301392

1шт.

11

151-705

CLIP,Rd 1/2" Hd, 1/4" Hole

RIVET - snap button, 1/2 inch

21шт.

Part of seat suspension support kit P/N S301392

1шт.

12

A47778

DECAL

- instruction

1шт.

Part of seat suspension support kit P/N S301392

1шт.

S301392

SUSPENSION

KIT - seat suspension support, Includes Refs. 15 - 18 figure 9-048, 1 - 18 and 20 - 29 figure 9-050, and 1 - 12 this figure

1шт.
