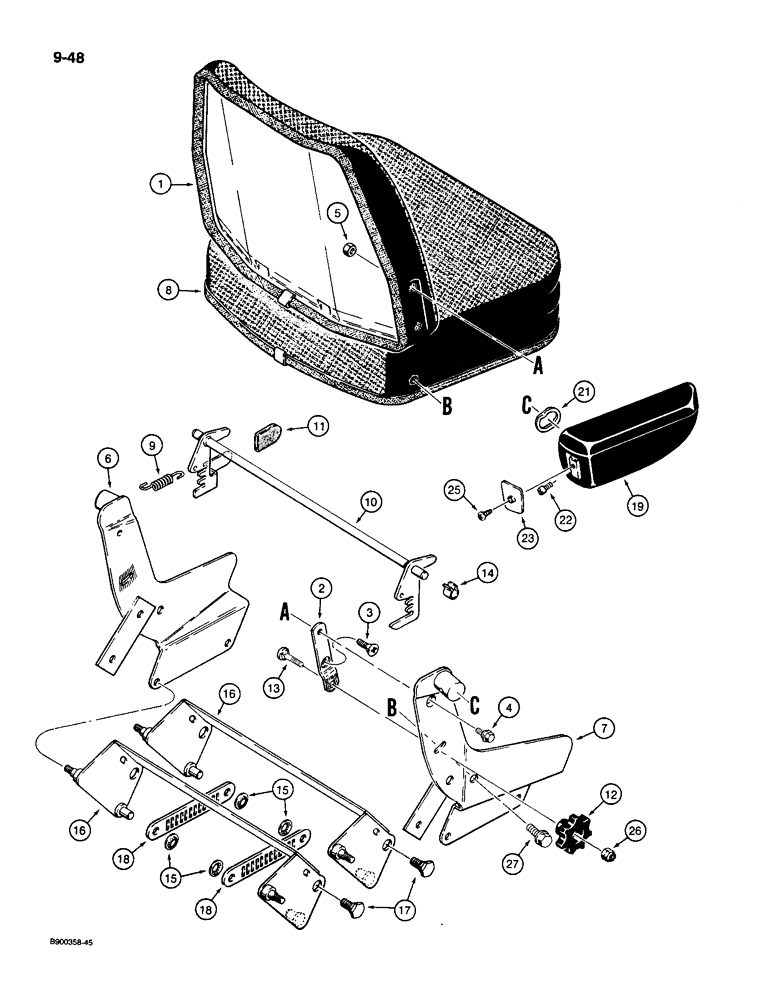

Запчасти Case 1085C (9-048) - SUSPENSION SEAT (09) - CHASSIS/ATTACHMENTS

S517337

SEAT ASSY.

SEAT ASSEMBLY - suspension, Includes: Ref. 1 - 27 this figure, 1 - 29 figure 9-050, and 1 - 12 figure 9-052

1шт.

S301357

CUSHION

ASSEMBLY - seat back, cloth, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

CUSHION - seat back

1шт.

2

S301360

LINK

- seat back

2шт.

3

171-228

SCREW,Sl Flat Hd, 3/8" - 16 x 1"

- flat Phillips head, 3/8 NC x 1 inch

2шт.

4

A48346

BOLT

- special, seat bracket to seat back link

2шт.

5

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

2шт.

6

S301359

BRACKET

- seat, left-hand

1шт.

7

S301358

BRACKET

- seat, right-hand

1шт.

8

N8530

CUSHION

- seat bottom, cloth (replaces N8630)

1шт.

9

A45471

- tilt shaft

2шт.

10

S301391

SUPPORT

SHAFT - seat tilt

1шт.

11

A47347

CAP

AND DECAL - tilt lever

1шт.

12

A45487

BUTTON

KNOB - tilt, backrest cushion adjustment

2шт.

13

A45527

CARRIAGE BOLT

- special, shoulder, backrest cushion adjustment

2шт.

14

A45482

BUSHING

SPACER - tilt lever

2шт.

15

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

4шт.

Part of seat suspension support kit P/N S301392

1шт.

16

S301395

LINK

BRACKET - tie

2шт.

Part of seat suspension support kit P/N S301392

1шт.

17

A45473

STEP BOLT

BOLT - special, tie bracket retaining

4шт.

Part of seat suspension support kit P/N S301392

1шт.

18

A47383

LINK

LEVER - adjusting

2шт.

Part of seat suspension support kit P/N S301392

1шт.

19

N8536

ARMREST

- seat, right-hand

1шт.

20

N8535

ARM

REST - seat, left-hand, not shown

1шт.

21

A47352

WASHER

- wave, 1-1/8 inch ID

2шт.

22

61-3256

HEX SOC SCREW,1/4"-20 x 3/8"

SCREW, , Armrest Hex Soc Hd, 1/4"-20 x 3/8"

2шт.

23

A45584

COVER

PLATE - cover, right armrest

1шт.

24

A45583

PLATE

- cover, left armrest, not shown

1шт.

25

263-50510

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW - tapping, pan head slotted, No. 10 x 5/8 inch

2шт.

26

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

2шт.

27

A48347

BOLT

- special, seat, Serial Range: cushion-bracket

2шт.

S301392

SUSPENSION

KIT - seat suspension support, Includes Refs. 15, 16, 17 and 18 this figure, 1 - 18 and 20 - 29 figure 9-050, and 1 - 12 figure 9-052

1шт.
